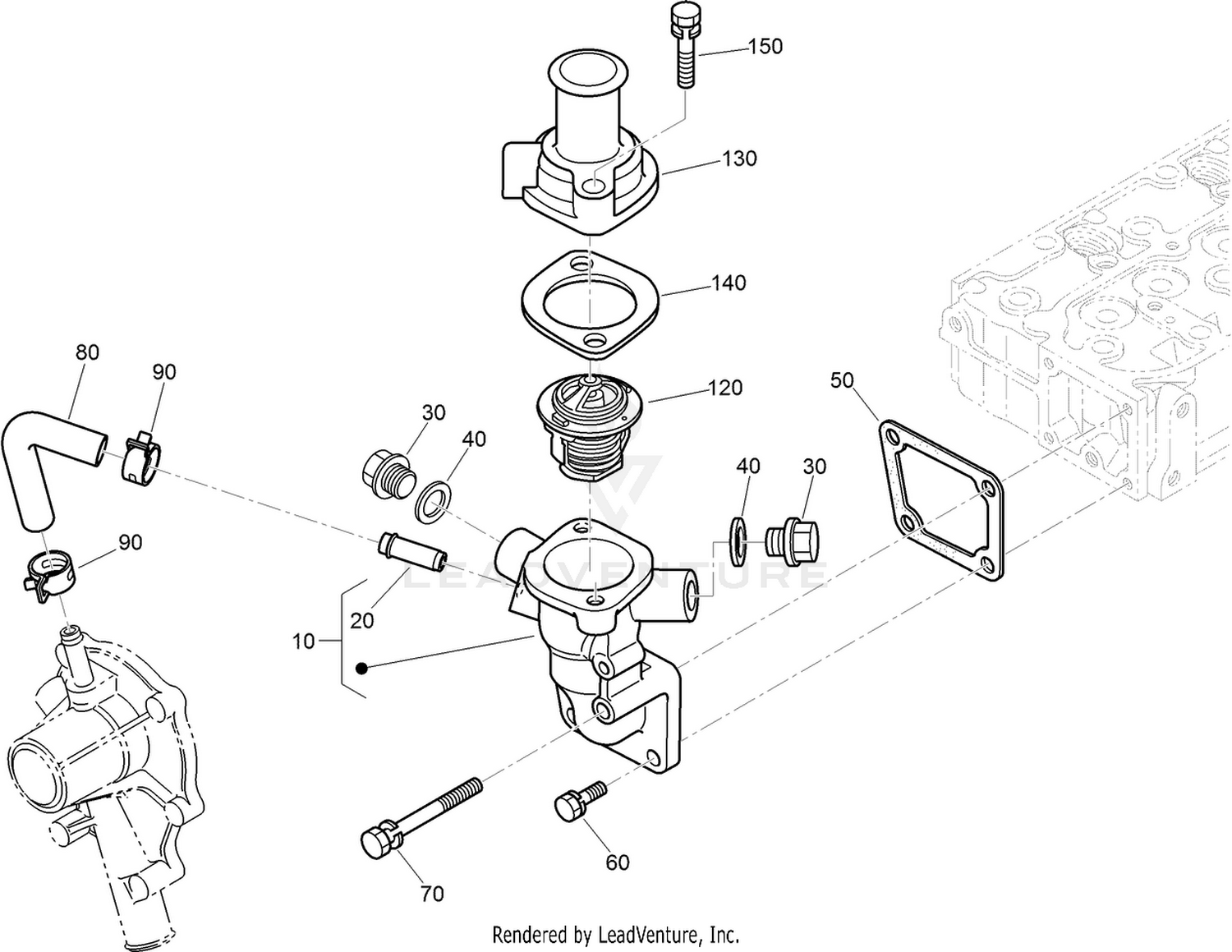

Water Flange and Thermostat Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 98-9713 | WATER FLANGE ASM Price: $199.09 |
| 20 | 98-9580 | PIPE-RETURN, WATER Price: $4.01 |
| 30 | 105-3747 | PLUG Price: $3.62 |
| 40 | 99-3583 | GASKET Price: $1.92 |
| 50 | 98-9638 | GASKET-FLANGE, WATER Price: $3.74 |
| 60 | 98-7692 | BOLT Price: $0.92 |
| 70 | 98-9356 | BOLT Price: $2.06 |
| 80 | 98-9578 | PIPE-RETURN, WATER Price: $11.28 |
| 90 | 125-9078 | CLAMP-HOSE Price: $4.06 |
| 120 | 98-7778 | THERMOSTAT ASM Price: $61.89 |
| 130 | 98-9471 | COVER-THERMOSTAT Price: $34.62 |
| 140 | 105-3748 | GASKET-THERMOSTAT Price: $4.31 |
