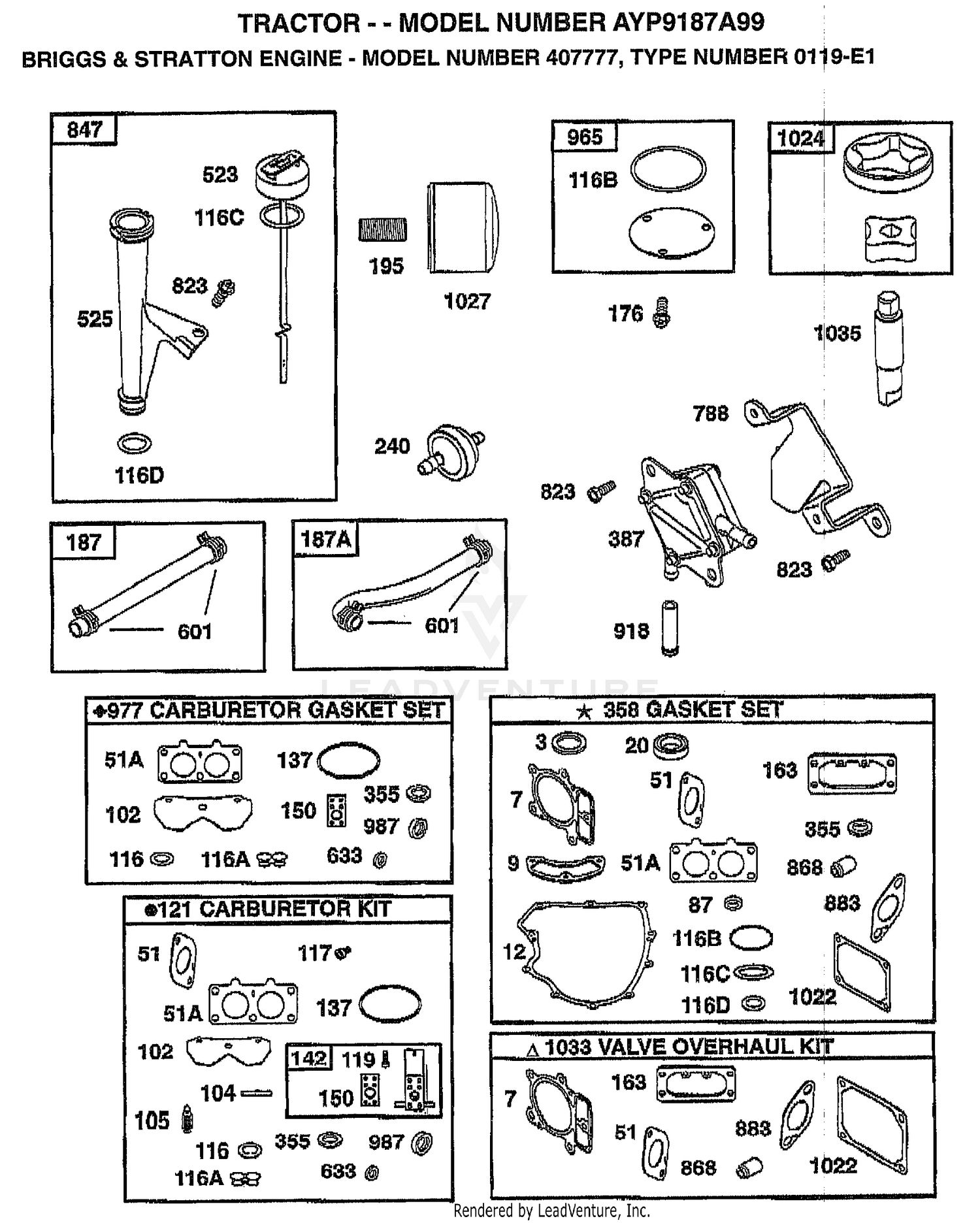

| Ref | Part Number | Description |
|---|
| 1 |
499584 |
CYLINDER ASSY Price: Call Us |
| 1 |
98-7812 |
MANIFOLD-INLET Price: $310.54 |
| 2 |
100-9284 |
GASKET-MANIFOLD, INTAKE This part replaces 98-7813. Price: $26.20 |
| 2 |
499585 |
BUSHING CYLINDER Price: Call Us |
| 3 |
690926 |
SEAL OIL Price: Call Us |
| 4 |
690069 |
SUMP ENGINE Price: Call Us |
| 5 |
499587 |
HEAD CYLINDER NO. 1 Price: Call Us |
| 5A |
499595 |
HEAD CYLINDER NO. 2 Price: Call Us |
| 6 |
690097 |
WASHER FLAT Price: Call Us |
| 7 |
690962 |
GASKET, CYLINDER HEAD Price: Call Us |
| 8 |
499601 |
BREATHER ASSY Price: Call Us |
| 9 |
690937 |
GASKET BREATHER Price: Call Us |
| 10 |
691003 |
SCREW, HEX Price: Call Us |
| 11 |
690942 |
TUBE, BREATHER Price: Call Us |
| 12 |
690945 |
GASKET, CRANKCASE Price: Call Us |
| 13 |
690360 |
SCREW, CYLINDER HEAD (3-9/16") Price: Call Us |
| 15 |
690946 |
PLUG, OIL DRAIN Price: Call Us |
| 16 |
691046 |
CRANKSHAFT Price: Call Us |
| 20 |
690947 |
SEAL OIL Price: Call Us |
| 22 |
690308 |
SCREW, CRANKCASE COVER Price: Call Us |
| 23 |
691054 |
FLYWHEEL Price: Call Us |
| 24 |
690974 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
499588 |
PISTON ASSY (STD) Price: Call Us |
| 25 |
499589 |
PISTON ASSY (.010" O.S.) Price: Call Us |
| 25 |
499590 |
PISTON ASSY (.020" O.S.) Price: Call Us |
| 25 |
499591 |
PISTON ASSY (.030" O.S.) Price: Call Us |
| 26 |
499604 |
RING SET, PISTON (STD.) Price: Call Us |
| 26 |
499605 |
RING SET, PISTON (.010" O.S.) Price: Call Us |
| 26 |
499606 |
RING SET, PISTON (.020" O.S.) Price: Call Us |
| 26 |
499607 |
RING SET, PISTON (.030" O.S.) Price: Call Us |
| 27 |
690975 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
499582 |
PIN ASSY, PISTON Price: Call Us |
| 29 |
499583 |
ROD ASSY, CONNECTING Price: Call Us |
| 32 |
690976 |
SCREW, CONNECTING ROD Price: Call Us |
| 33 |
499596 |
VALVE, EXHAUST Price: Call Us |
| 34 |
499597 |
VALVE, INTAKE Price: Call Us |
| 35 |
690963 |
SPRING, VALVE Price: Call Us |
| 40 |
690964 |
RETAINER, VALVE Price: Call Us |
| 42 |
499586 |
KEEPER VALVE Price: Call Us |
| 45 |
690977 |
TAPPET, VALVE Price: Call Us |
| 46 |
690978 |
GEAR, CAM Price: Call Us |
| 50 |
690948 |
MANIFOLD, INTAKE Price: Call Us |
| 51 |
690949 |
GASKET, CARB. MOUNTING Price: Call Us |
| 51A |
690950 |
GASKET, INTAKE MANIFOLD Price: Call Us |
| 53 |
690951 |
STUD, CARB. MOUNTING Price: Call Us |
| 73 |
691055 |
SCREEN, ROTATING Price: Call Us |
| 75 |
691056 |
WASHER, SPRING Price: Call Us |
| 78 |
691057 |
SCREW, TORX Price: Call Us |
| 87 |
690657 |
SEAL, GOVERNOR SHAFT Price: Call Us |
| 89 |
690238 |
PLUG, OIL Price: Call Us |
| 95 |
690718 |
SCREW, SLOTTED Price: Call Us |
| 98 |
499802 |
SCREW, IDLE SPEED Price: Call Us |
| 102 |
690234 |
GASKET, PLATE Price: Call Us |
| 104 |
690984 |
PIN, FLOAT HINGE Price: Call Us |
| 105 |
690985 |
VALVE, NEEDLE Price: Call Us |
| 108 |
690986 |
VALVE, CHOKE Price: Call Us |
| 110 |
691261 |
WASHER Price: Call Us |
| 116 |
690987 |
O-RING, SOLENOID RETAINER Price: Call Us |
| 116A |
690988 |
O-RING, FUEL TRANSFER TUBE Price: Call Us |
| 116B |
690589 |
SEAL, O-RING (OIL PUMP COVER) Price: Call Us |
| 116C |
691031 |
SEAL, O-RING (DIPSTICK) Price: Call Us |
| 116D |
691032 |
SEAL, O-RING (OIL FILTER TUBE) Price: Call Us |
| 117 |
690232 |
JET, MAIN (STANDARD) Price: Call Us |
| 119 |
690990 |
SCREW, PHILLIPS Price: Call Us |
| 119A |
690991 |
SCREW, PHILLIPS Price: Call Us |
| 119B |
690992 |
SCREW, PHILLIPS Price: Call Us |
| 119C |
690720 |
SCREW, PHILLIPS Price: Call Us |
| 121 |
499811 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 122 |
690952 |
SPACER, CARBURETOR Price: Call Us |
| 125 |
499804 |
CARBURETOR Price: Call Us |
| 130 |
690993 |
VALVE, THROTTLE Price: Call Us |
| 131 |
499802 |
SCREW, IDLE SPEED Price: Call Us |
| 133 |
499806 |
FLOAT, CARBURETOR Price: Call Us |
| 135 |
499803 |
TUBE, FUEL TRANSFER Price: Call Us |
| 137 |
690994 |
GASKET, FLOAT BOWL Price: Call Us |
| 141 |
499807 |
SHAFT CHOKE Price: Call Us |
| 142 |
499808 |
NOZZLE, CARBURETOR Price: Call Us |
| 146 |
94388 |
TIMING GEAR KEY Price: Call Us |
| 150 |
281767 |
GASKET, NOZZLE Price: Call Us |
| 160 |
690996 |
RETAINER, SOLENOID Price: Call Us |
| 163 |
691001 |
GASKET, AIR CLEANER Price: Call Us |
| 176 |
691033 |
SCREW, T-30 Price: Call Us |
| 187 |
691050 |
LINE, FUEL Price: Call Us |
| 187A |
691049 |
LINE, FUEL Price: Call Us |
| 188 |
691058 |
SCREW, HEX Price: Call Us |
| 190 |
690953 |
SCREW, TORX HEX Price: Call Us |
| 192 |
690083 |
ADJUSTER, ROCKER ARM Price: Call Us |
| 195 |
690954 |
NIPPLE Price: Call Us |
| 209 |
690018 |
SPRING, GOVERNOR Price: Call Us |
| 211 |
690019 |
SPRING, GOVERNED IDLE Price: Call Us |
| 212 |
691020 |
LINK, THROTTLE Price: Call Us |
| 213 |
691021 |
BRACKET, CHOKE CONTROL Price: Call Us |
| 216 |
691022 |
LINK, CHOKE Price: Call Us |
| 219 |
394348 |
GEAR, GOVERNOR Price: Call Us |
| 220 |
690412 |
WASHER, THRUST Price: Call Us |
| 222 |
691023 |
PLATE, GOVERNOR CONTROL Price: Call Us |
| 227 |
691048 |
LEVER ASSY, GOVERNOR Price: Call Us |
| 240 |
691035 |
FILTER, FUEL Price: Call Us |
| 252 |
690956 |
ELEMENT, BREATHER Price: Call Us |
| 256 |
690957 |
RETAINER, ELEMENT Price: Call Us |
| 258 |
691003 |
SCREW, HEX Price: Call Us |
| 265 |
691024 |
CLAMP, CASING Price: Call Us |
| 277 |
691029 |
NUT, HEX Price: Call Us |
| 304 |
691004 |
HOUSING, BLOWER Price: Call Us |
| 305 |
691005 |
SCREW, HEX Price: Call Us |
| 309 |
691262 |
MOTOR, STARTER Price: Call Us |
| 310 |
691263 |
SCREW, HEX Price: Call Us |
| 311 |
691264 |
BRUSH, SET Price: Call Us |
| 332 |
690059 |
NUT, FLYWHEEL Price: Call Us |
| 333 |
691060 |
ARMATURE, MAGNETO Price: Call Us |
| 334 |
691061 |
SCREW, ARMATURE MOUNTING Price: Call Us |
| 337 |
690965 |
SPARK PLUG Price: Call Us |
| 351 |
691044 |
SCREW, HEX Price: Call Us |
| 355 |
690997 |
WASHER, SEAL Price: Call Us |
| 358 |
499889 |
GASKET SET Price: Call Us |
| 363 |
691062 |
FLYWHEEL, PULLER Price: Call Us |
| 383 |
690966 |
WRENCH, SPARK PLUG Price: Call Us |
| 387 |
691034 |
PUMP, FUEL Price: Call Us |
| 445 |
691007 |
CARTRIDGE, AIR CLEANER Price: Call Us |
| 467 |
691008 |
NUT, AIR CLEANER Price: Call Us |
| 474 |
691063 |
ALTERNATOR Price: Call Us |
| 482 |
691183 |
SCREW, HEX Price: Call Us |
| 510 |
497606 |
DRIVE, STARTER Price: Call Us |
| 523 |
691036 |
DIPSTICK, OIL Price: Call Us |
| 525 |
691037 |
TUBE, OIL FILL Price: Call Us |
| 544 |
PARTS |
IMAGE REFER TO PARTS IMAGE Price: Call Us PARTS IMAGE |
| 552 |
690552 |
BUSHING, GOVERNOR CRANK Price: Call Us |
| 552A |
690553 |
BUSHING, GOVERNOR CRANK Price: Call Us |
| 556 |
690967 |
SCREW, HEX Price: Call Us |
| 562 |
690311 |
BOLT, CARRIAGE Price: Call Us |
| 573 |
691009 |
PLATE, BLACK Price: Call Us |
| 592 |
690958 |
NUT, HEX Price: Call Us |
| 592A |
691029 |
NUT, HEX Price: Call Us |
| 601 |
691038 |
CLAMP, FUEL LINE Price: Call Us |
| 615 |
690328 |
RETAINER, GOVERNOR Price: Call Us |
| 615A |
690317 |
RETAINER, GOVERNOR Price: Call Us |
| 615B |
691265 |
RETAINER Price: Call Us |
| 633 |
690998 |
SEAL, CHOKE SHAFT Price: Call Us |
| 634 |
690442 |
WASHER, FLAT Price: Call Us |
| 635 |
691210 |
BOOT, SPARK PLUG Price: Call Us |
| 646 |
691045 |
CRANK, GOVERNOR Price: Call Us |
| 668 |
691215 |
SPACER Price: Call Us |
| 703 |
690010 |
CLIP, HOSE Price: Call Us |
| 718 |
690959 |
DOWEL, SLEEVE Price: Call Us |
| 726 |
499612 |
GEAR, RING Price: Call Us |
| 728 |
690372 |
SCREW, TORX Price: Call Us |
| 741 |
690980 |
GEAR, TIMING Price: Call Us |
| 783 |
691280 |
GEAR, STARTER Price: Call Us |
| 788 |
691039 |
BRACKET, PUMP Price: Call Us |
| 789 |
691220 |
HARNESS, WIRING Price: Call Us |
| 801 |
691283 |
CAP, DRIVE Price: Call Us |
| 802 |
691286 |
CAP, END Price: Call Us |
| 803 |
PARTS |
IMAGE REFER TO PARTS IMAGE Price: Call Us PARTS IMAGE |
| 823 |
690960 |
SCREW, HEX Price: Call Us |
| 847 |
499602 |
DIPSTICK/TUBE ASSY Price: Call Us |
| 851 |
691234 |
TERMINAL, IGNITION CABLE Price: Call Us |
| 855 |
691011 |
ADAPTER, AIR Price: Call Us |
| 865 |
691012 |
COVER, AIR GUIDE Price: Call Us |
| 865A |
691013 |
COVER, AIR GUIDE Price: Call Us |
| 865B |
691015 |
COVER, AIR GUIDE Price: Call Us |
| 868 |
690968 |
SEAL, VALVE Price: Call Us |
| 871 |
690969 |
BUSHING, GUIDE Price: Call Us |
| 877 |
499812 |
GASKET SET, CARBURETOR Price: Call Us |
| 878 |
691237 |
WIRE, ALTERNATOR Price: Call Us |
| 881 |
690999 |
PLATE, COVER Price: Call Us |
| 883 |
690970 |
GASKET, EXHAUST Price: Call Us |
| 918 |
691040 |
HOSE, VACUUM Price: Call Us |
| 947 |
499809 |
SOLENOID, FUEL Price: Call Us |
| 965 |
499613 |
COVER, OIL PUMP Price: Call Us |
| 967 |
691016 |
FILTER, PRE-CLEANER Price: Call Us |
| 968 |
499788 |
COVER, AIR CLEANER Price: Call Us |
| 975 |
499810 |
BOWL, FLOAT Price: Call Us |
| 987 |
691000 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 1005 |
691243 |
FAN, FLYWHEEL Price: Call Us |
| 1006 |
691247 |
RETAINER, FAN Price: Call Us |
| 1017 |
690770 |
SCREEN, OIL PUMP Price: Call Us |
| 1019 |
690103 |
LABEL KIT Price: Call Us |
| 1022 |
690971 |
GASKET, ROCKER COVER Price: Call Us |
| 1023 |
499599 |
COVER, ROCKER (CYL. NO.1) Price: Call Us |
| 1023A |
499600 |
COVER, ROCKER (CYL. NO.2) Price: Call Us |
| 1024 |
499054 |
PUMP, OIL Price: Call Us |
| 1026 |
690981 |
ROD, PUSH (STEEL) Price: Call Us |
| 1026A |
690982 |
ROD, PUSH (ALUMINUM) Price: Call Us |
| 1027 |
690041 |
FILTER, OIL Price: Call Us |
| 1029 |
690972 |
ARM, ROCKER Price: Call Us |
| 1033 |
499890 |
VALVE OVERHAUL KIT Price: Call Us |
| 1035 |
691042 |
SHAFT, OIL PUMP Price: Call Us |
| 1036 |
499783 |
LABEL KIT, EMISSION Price: Call Us |
| 1058 |
273694 |
OWNER'S MANUAL Price: Call Us |
| 1090 |
691293 |
RETAINER, BRUSH Price: Call Us |
| 1100 |
690973 |
PIVOT, ROCKER ARM Price: Call Us |
