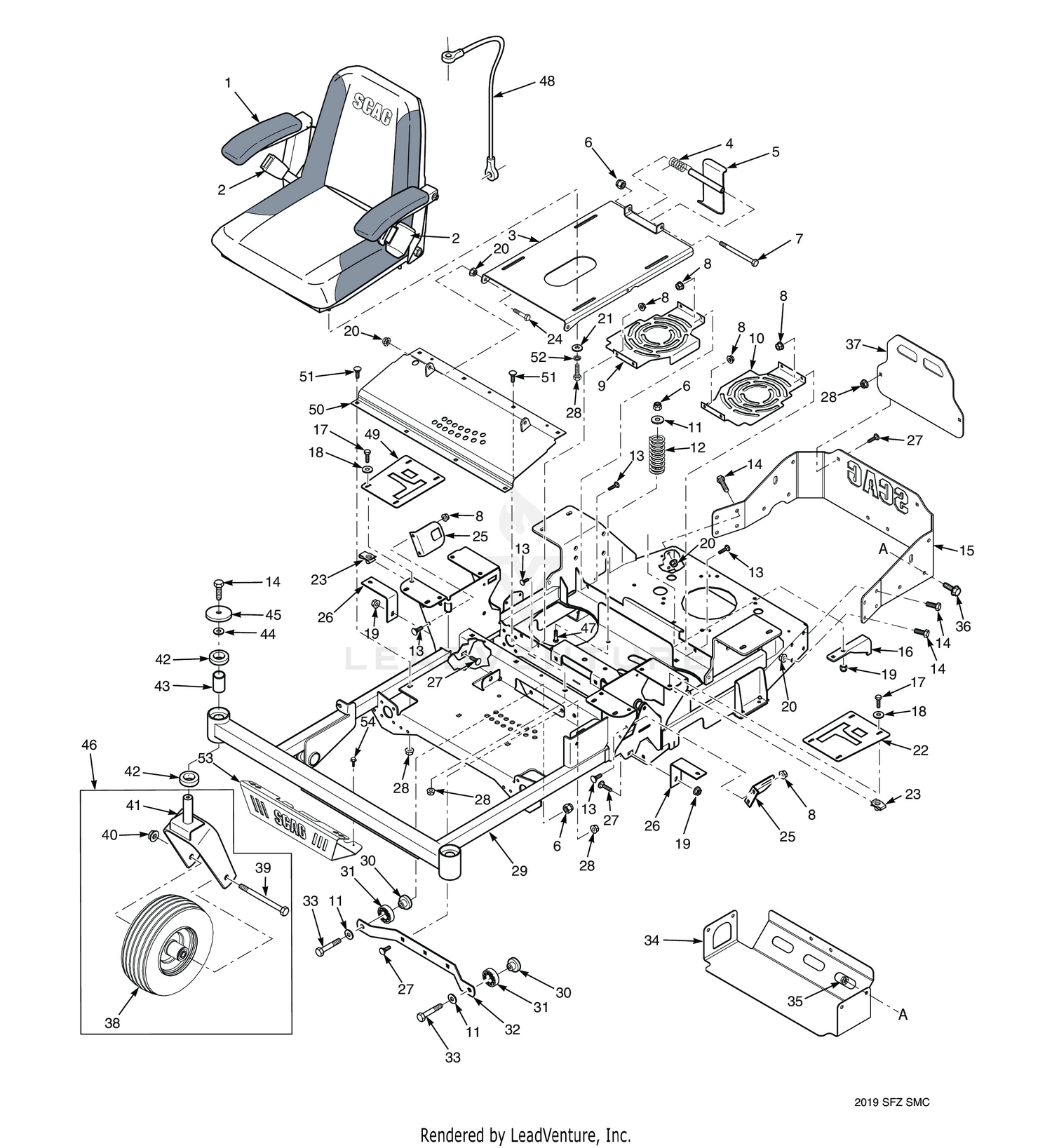

| Ref | Part Number | Description |
|---|
| 1 |
485987 |
Arm Rest Kit Price: Call Us |
| 1 |
485992 |
Seat Pan Price: Call Us |
| 1 |
486054 |
Cover, Bottom Cushion Price: Call Us |
| 1 |
486055 |
Back Cushion Price: Call Us |
| 1 |
486056 |
Seat Assembly Price: Call Us |
| 2 |
461990 |
Hardware Package, Seat Belt Mounting Price: Call Us |
| 2 |
485164 |
Seat Belt Assembly, Retractable Price: Call Us |
| 3 |
462707 |
Seat Base w/Decal Price: Call Us |
| 4 |
483371 |
Spring, Seat Latch Price: Call Us |
| 5 |
451883 |
Weldment, Seat Latch Price: Call Us |
| 6 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 7 |
04001-100 |
Bolt, 3/8-16 x 6.00" Hex Head Price: Call Us |
| 8 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 9 |
425698 |
Fan Cover, RH Price: Call Us |
| 10 |
425697 |
Fan Cover, LH Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 12 |
483372 |
Spring, Seat Price: Call Us |
| 13 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 14 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 15 |
427870 |
Rear Bumper Price: Call Us |
| 16 |
424523 |
Bracket, Anti-Rotation Price: Call Us |
| 17 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
| 18 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 19 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 20 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 21 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 22 |
462023 |
Control Plate LH Price: Call Us |
| 23 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 24 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 25 |
424511 |
Bracket, Switch Mount Price: Call Us |
| 26 |
424516 |
Bracket, Tank Mount Price: Call Us |
| 27 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 28 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 29 |
463118 |
Main Frame w/Decals Price: Call Us |
| 30 |
43703 |
Spacer, Bearing Price: Call Us |
| 31 |
483379 |
Bearing Price: Call Us |
| 32 |
424480 |
Support, Deck Guide Price: Call Us |
| 33 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 34 |
427871 |
Heatshield Price: Call Us |
| 35 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 36 |
04017-26 |
Bolt, Hex Head Serrated Flange 3/8-16 x 3/4" Price: Call Us |
| 37 |
427869 |
Engine Guard Price: Call Us |
| 38 |
485941 |
TIRE, 11 X 6.00-5 Price: Call Us |
| 38 |
486310 |
Caster Wheel Assembly (INCL. Rim - 486311) Price: Call Us |
| 39 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52") Price: Call Us |
| 40 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 41 |
453282 |
Yoke, Caster Wheel This part replaces 453010. Price: Call Us |
| 42 |
424636 |
Spacer, Yoke Price: Call Us |
| 42 |
483466 |
Bearing Price: Call Us |
| 43 |
43736 |
Spacer, Caster Bearing Price: Call Us |
| 44 |
04040-11 |
Flatwasher, 7/16" (.500 x 1.25 x .083") Price: Call Us |
| 45 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 46 |
462993 |
CASTER WHEEL & SUPPORT ASSY Price: Call Us |
| 47 |
04003-11 |
SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4" Price: Call Us |
| 48 |
483559 |
Cable, Seat Stop Price: Call Us |
| 49 |
462024 |
Control Plate RH Price: Call Us |
| 50 |
463136 |
Weldment, Deck Lift Cover w/Decal Price: Call Us |
| 51 |
04003-14 |
Carriage Bolt, 5/16-18 x 1/2" Price: Call Us |
| 52 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 53 |
427868 |
Bumper. Front Price: Call Us |
