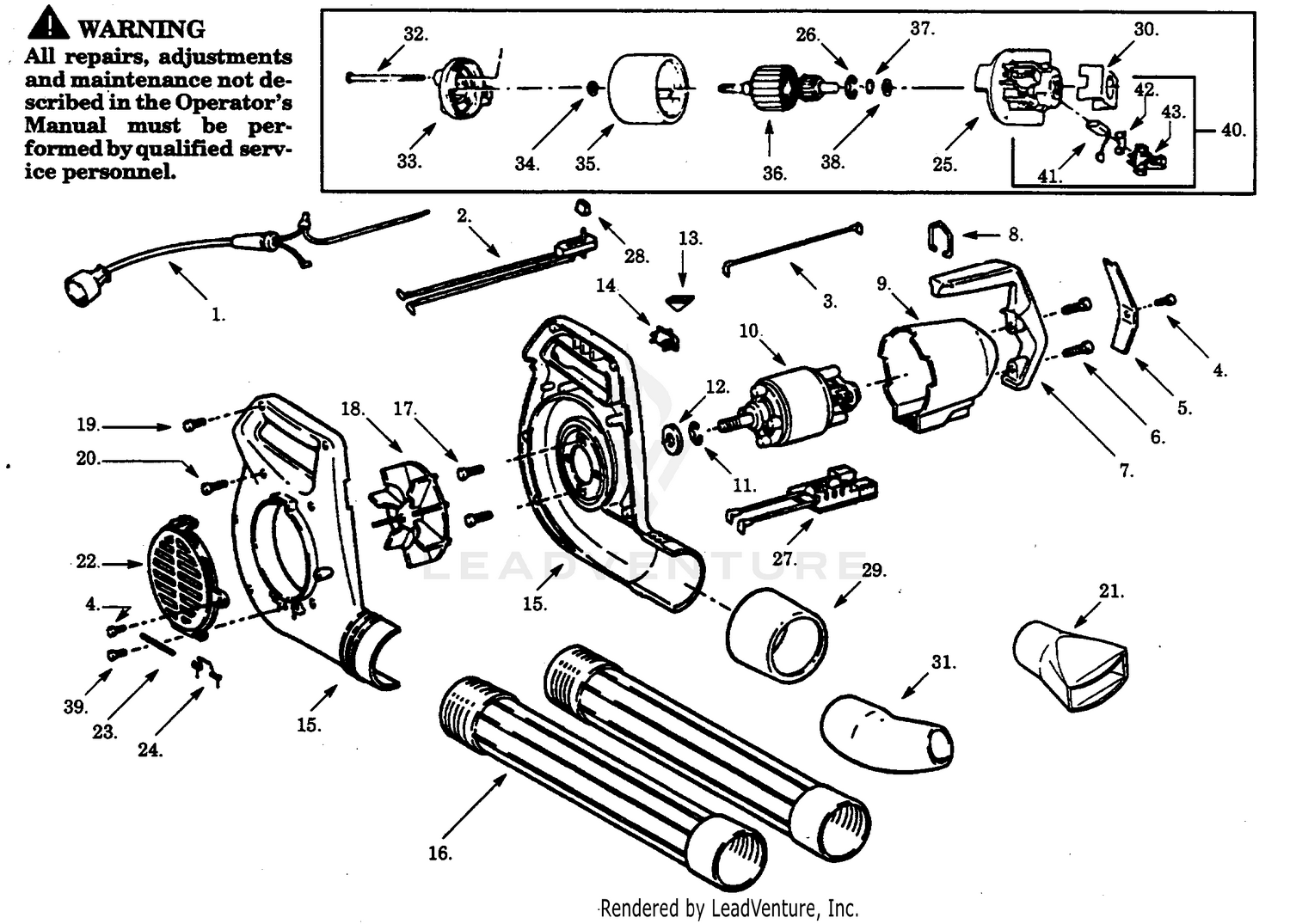

BLOWER ASSEMBLY
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 0 | 640262A | CARBURETOR This part replaces 640173. Price: $78.00 |
| 1 | 534434003 | Power Cord Ass'y. Price: $3.33 |
| 1 | 631615 | SHAFT & LEV Price: $6.48 |
| 2 | 534333500 | Speed Switch Ass'y. Price: $3.33 |
| 2 | 631767 | SPRING Price: $1.25 |
| 3 | 534433801 | Leadwire Ass'y. Price: $0.61 |
| 4 | 534193700 | Screw Price: $1.99 |
| 4 | 631184 | WASHER Price: $1.25 |
| 5 | 534404355 | Plate Price: $1.99 |
| 5 | 631183 | WASHER Price: $1.25 |
| 6 | 534136402 | Screw Price: $1.99 |
| 6 | 631616 | SHUTTER Price: $1.20 |
| 7 | 534319705 | Side Handle Price: $22.99 |
| 7 | 650506 | SCREW Price: $0.87 |
| 8 | 534270100 | Hanger Price: $1.99 |
| 9 | 534319612 | Motor Cover Price: $3.33 |
| 10 | 534225010 | Motor Ass'y. Price: $3.33 |
| 11 | 534747011 | Retaining Ring Price: $1.99 |
| 12 | 534136100 | Washer Price: $1.99 |
| 13 | 534325100 | Switch Cover Price: $1.99 |
| 14 | 534332501 | On/Off Switch Price: $3.33 |
| 15 | 534491702 | Housing Set Price: $27.99 |
| 16 | 534352705 | Outlet Tube Price: $7.99 |
| 16 | 631807 | FUEL FITTING Price: $6.03 |
| 17 | 534136401 | Screw Price: $1.99 |
| 18 | 534398315 | Impeller Ass'y. Price: $3.33 |
| 19 | 534184700 | Screw Price: $1.99 |
| 20 | 534222400 | Screw Price: $1.99 |
| 21 | 534339405 | Nozzle Diffuser Price: $3.33 |
| 22 | 534543305 | Inlet Cover Price: $3.33 |
| 23 | 534327201 | Pin Hinge Price: $2.99 |
| 24 | 534475900 | Return Spring Price: $1.99 |
| 25 | 534227501 | Endbell Ass'y.(Brush) Price: $3.33 |
| 25 | 631700 | FLOAT BOWL Price: $2.99 |
| 26 | 534246700 | Retaining Ring Price: $0.99 |
| 27 | 534334100 | P.C. Board Ass'y. Price: $44.99 |
| 27 | 631024 | FLOAT SHAFT Price: $1.17 |
| 28 | 534331805 | Knob Price: $1.99 |
| 28 | 632019A | FLOAT This part replaces 632019. Price: $5.85 |
| 29 | 534408415 | Ferrule Sleeve Price: $8.99 |
| 29 | 631028A | GASKET This part replaces 631028. Price: $1.95 |
| 30 | 534226000 | Insulator Price: $3.33 |
| 30 | 631021B | INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 | 534373405 | Nozzle Price: $3.33 |
| 31 | 631022 | CLIP Price: $1.25 |
| 32 | 534228700 | Screw Price: $1.99 |
| 33 | 534227601 | Endbell Ass'y. (Drive) Price: $3.33 |
| 34 | 534228800 | Washer Price: $1.99 |
| 35 | 534227001 | Field Ass'y. Price: $24.99 |
| 35 | 632047A | PRIMER Price: $3.55 |
| 36 | 534225110 | Armature Ass'y. Price: $34.99 |
| 37 | 534228802 | Washer Price: $0.99 |
| 38 | 534238903 | Washer Price: $1.99 |
| 39 | 534193700 | Screw Price: $1.99 |
| 40 | 534450400 | Brush Kit (Incl. 41,42,43) Price: $12.32 |
| 40 | 631937A | NUT Price: $4.62 |
| 41 | 534227800 | Brush Price: $3.16 |
| 42 | 534228000 | Brush Spring Price: $1.99 |
| 44 | 631334A | GASKET This part replaces 631334. Price: $2.25 |
| 48 | 631027 | WELCH PLUG Price: $1.17 |
