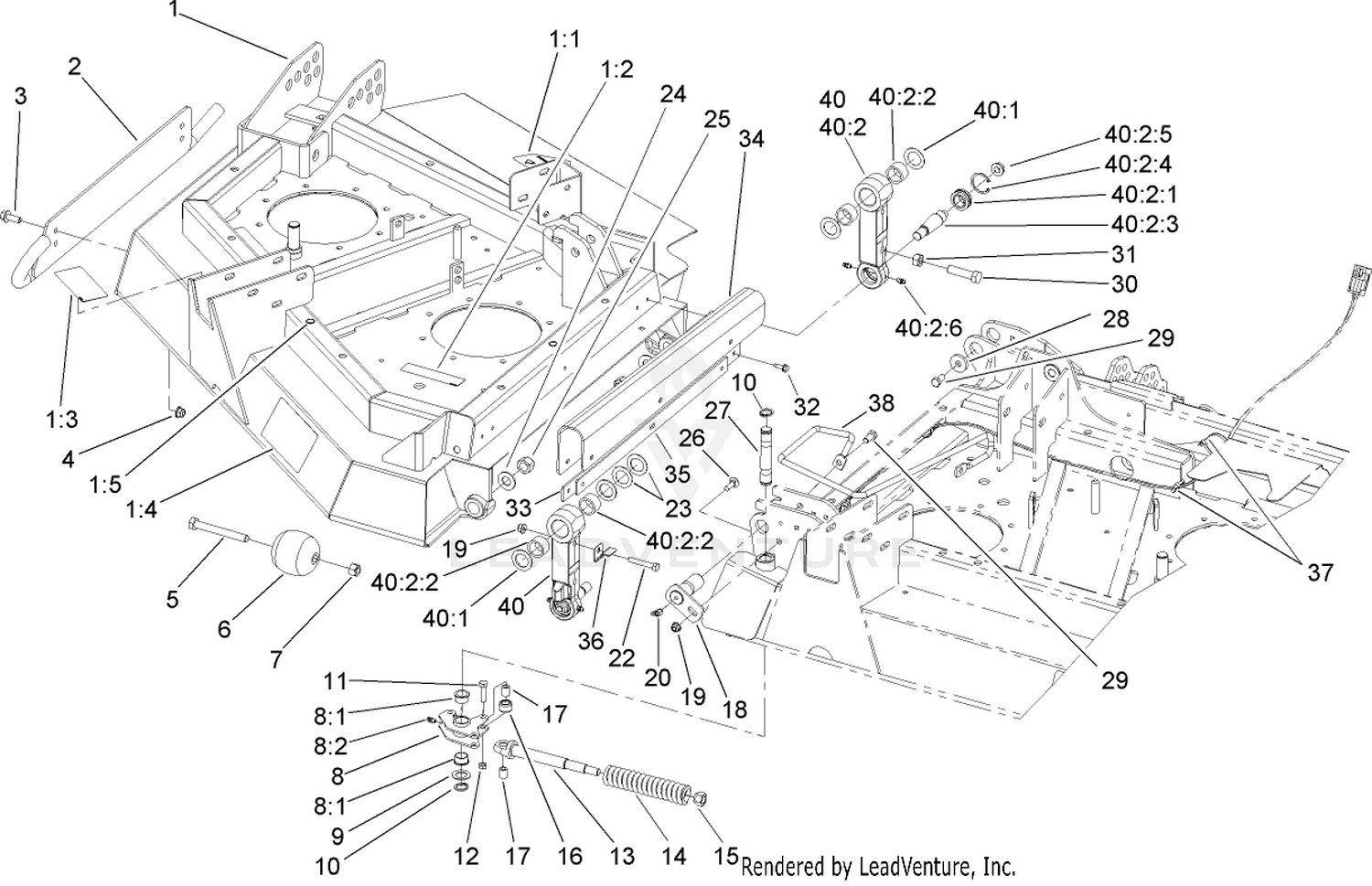

| Ref | Part Number | Description |
|---|
| 1 |
110-3298 |
RH DECK ASM Price: $3,559.71 |
| 1 |
110-3299 |
LH DECK ASM Price: $3,110.43 |
| 2 |
105-7430-01 |
RH SKID ASM Price: $180.97 |
| 2 |
105-7437-01 |
LH SKID ASM Price: $197.10 |
| 3 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
29-4820 |
ROLLER Price: $14.88 |
| 7 |
3296-45 |
NUT-HEX Price: $3.79 |
| 8 |
105-7469 |
LATCH ASM Price: $183.55 |
| 9 |
1278 |
WASHER Price: $1.89 |
| 10 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 11 |
322-6 |
SCREW-HH Price: $0.45 |
| 12 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 13 |
106-4317 |
SUPPORT-SPRING Price: $119.93 |
| 14 |
86-2560-03 |
SPRING-COMP This part replaces 86-2560. Price: $48.73 |
| 15 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 16 |
86-2120 |
ROLLER-LOCK Price: $25.12 |
| 17 |
86-2090 |
BUSHING Price: $2.17 |
| 18 |
131-4293 |
PIN PIVOT This part replaces 106-7171. Price: $27.48 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 22 |
322-10 |
SCREW-HH Price: $0.70 |
| 23 |
9547 |
WASHER-THRUST Price: $5.69 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 25 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 26 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 27 |
105-7482 |
PIN-LATCH Price: $51.62 |
| 28 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 29 |
323-4 |
SCREW-HH Price: $1.02 |
| 30 |
325-8 |
SCREW-HH Price: $3.52 |
| 31 |
3217-9 |
NUT-HH Price: $0.37 |
| 32 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 33 |
107-0170-03 |
STRAP-WING Price: $28.87 |
| 34 |
106-4334 |
SHIELD-FLEX Price: $65.42 |
| 35 |
107-0171-03 |
STRAP-SHIELD Price: $23.15 |
| 36 |
107-0166 |
TAB-SWITCH Price: $20.13 |
| 37 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 38 |
107-0182 |
GUIDE-HOSE, RH Price: $130.70 |
| 40 |
112-9117 |
LINK ASSEMBLY KIT This part replaces 107-0202. Price: $390.80 |
