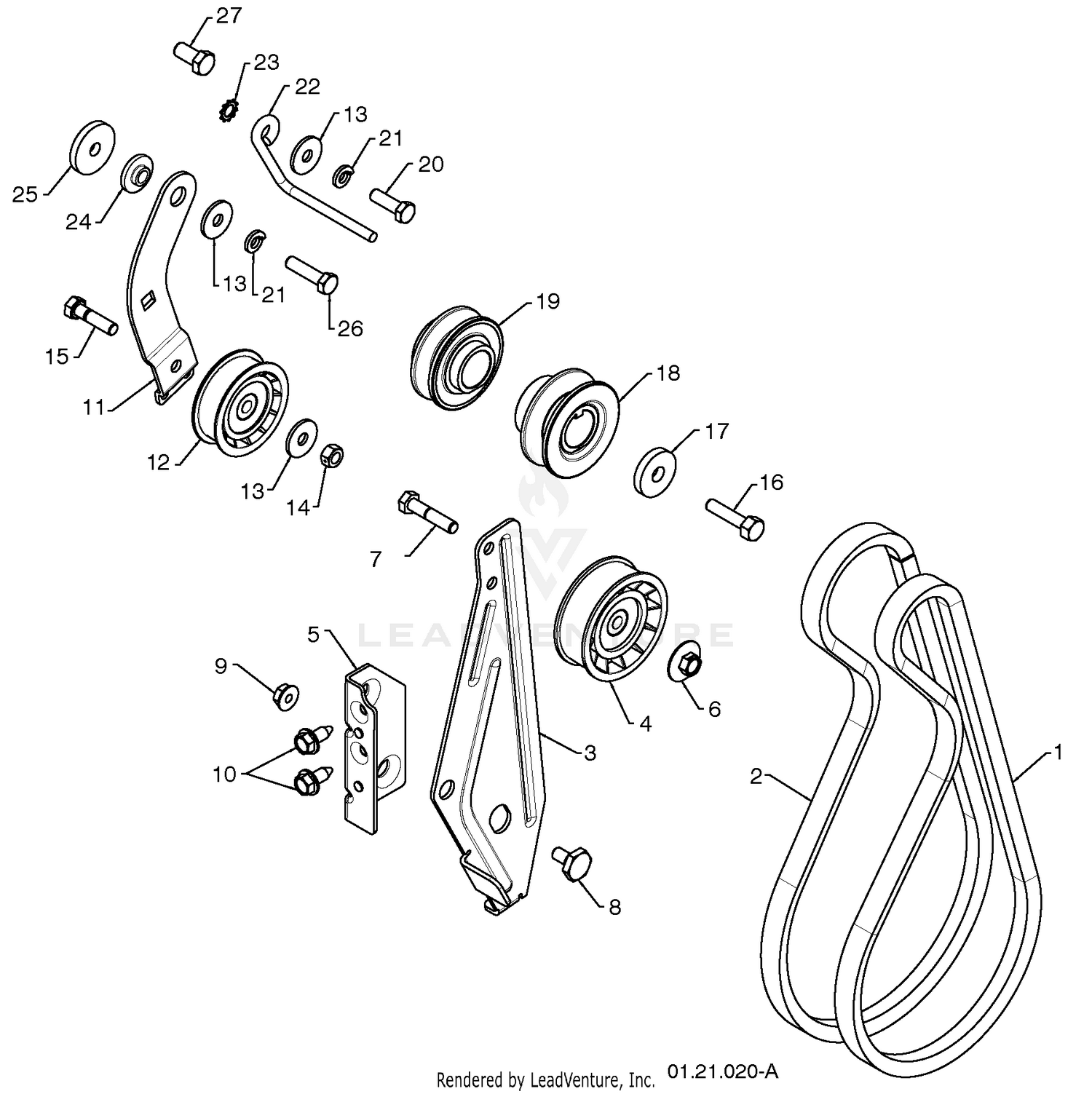

| Ref | Part Number | Description |
|---|
| 1 |
419888 |
IMPELLER BELT Price: Call Us |
| 1 |
69-3150 |
SCREW Price: $2.17 |
| 2 |
427304 |
TRACTION BELT Price: Call Us |
| 2 |
69-3070 |
WASHER Price: $0.28 |
| 3 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 3 |
423723X479 |
IDLER ARM BRACKET Price: Call Us |
| 4 |
180523 |
IDLER PULLEY Price: Call Us |
| 4 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 5 |
423990X479 |
IDLER BRACKET Price: Call Us |
| 5 |
69-3510 |
PIN Price: $29.51 |
| 6 |
107-4354 |
COVER-FRONT Price: $1,302.74 |
| 6 |
426589 |
NUT 5/16-18 Price: Call Us |
| 7 |
74780524 |
SCREW 5/16-18 X 1.50 Price: Call Us |
| 7 |
76-4590 |
SCREW Price: $5.43 |
| 8 |
424297 |
SHOULDER BOLT 5/16-18 X .50 Price: Call Us |
| 8 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 9 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 9 |
751153 |
NUT 5/16-18 LOCK Price: Call Us |
| 10 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 10 |
95-4400 |
WASHER-BACKUP Price: $7.74 |
| 11 |
427576 |
TRACTION IDLER BRACKET Price: Call Us |
| 11 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 12 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 13 |
59289 |
WASHER Price: Call Us |
| 13 |
69-3960 |
SCREW Price: $5.90 |
| 14 |
69-3970 |
BEARING-JOURNAL Price: $392.61 |
| 14 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 15 |
74780520 |
SCREW 5/16-18 X 1.25 Price: Call Us |
| 15 |
94-2878 |
PIN This part replaces 69-3520. Price: $9.76 |
| 16 |
69-3980 |
SWASHPLATE Price: $589.79 |
| 16 |
851084 |
SCREW 3/8-24 X 1 .375 Price: Call Us |
| 17 |
19132005 |
WASHER Price: Call Us |
| 17 |
69-3950 |
SHAFT-MOTOR Price: $816.22 |
| 18 |
425934 |
PULLEY ENG IMPELLER Price: Call Us |
| 18 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 19 |
425933 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
69-3990 |
PLATE-VALVE, MOTOR Price: $406.84 |
| 20 |
74610516 |
SCREW 5/16-24 X 1.00 Price: Call Us |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 21 |
136-1026 |
PLUG ASM This part replaces 69-3940. Price: $9.75 |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 22 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
| 23 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 24 |
175331 |
IDLER BUSHING Price: Call Us |
| 25 |
19112206 |
WASHER Price: Call Us |
| 25 |
69-3920 |
PISTON RING AND O-RING KIT Price: $181.90 |
| 26 |
69-3450 |
PIN Price: $3.33 |
| 26 |
74610520 |
SCREW 5/16-24 X 1.25 Price: Call Us |
| 27 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 28 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 29 |
69-3130 |
PLUG Price: $62.97 |
| 31 |
69-4020 |
PISTON-SERVO Price: $565.06 |
| 32 |
69-4030 |
SPRING-SERVO Price: $113.55 |
