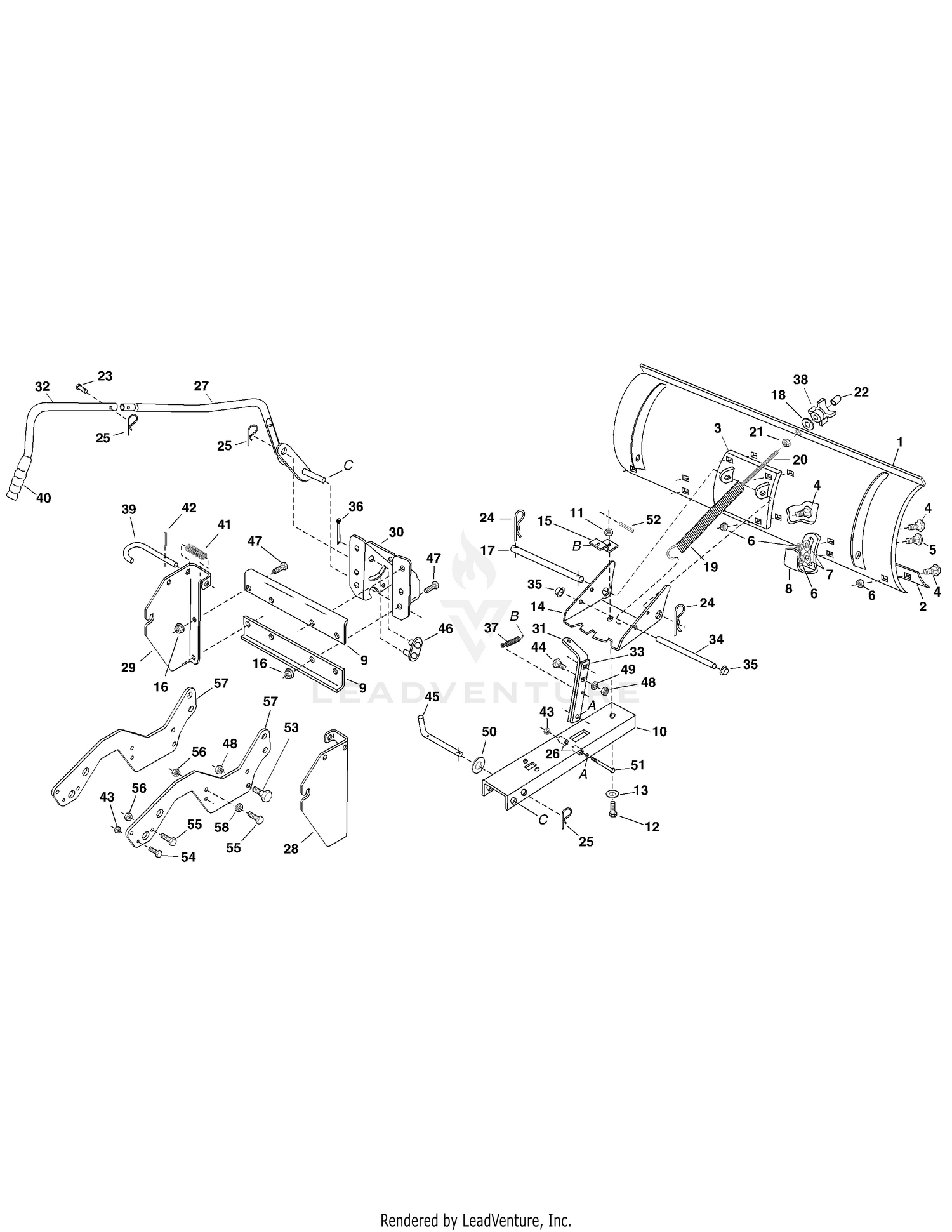

| Ref | Part Number | Description |
|---|
| 1 |
AF-63821 |
Blade- 46" Price: $158.23 |
| 2 |
AF-24524 |
WEAR PLATE - 46" Price: $40.85 |
| 3 |
AF-62980 |
Reinforcement Plate Assembly Price: $119.54 |
| 4 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces AF-43080. Price: $3.53 |
| 6 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces AF-43064. Price: $2.83 |
| 7 |
736-0159 |
Washer This part replaces AF-43081. Price: $3.71 |
| 8 |
AF-24690 |
Skid Shoe Price: $22.42 |
| 9 |
AF-24520 |
Bracket, Angle Support Price: $29.74 |
| 10 |
AF-24347 |
Push Channel Price: $63.77 |
| 11 |
912-0384 |
Hex Lock Nut, 1/2-13 This part replaces AF-43262. Price: $6.07 |
| 12 |
AF-23131 |
PIVOT SPECIAL BOLT Not Available Price: |
| 14 |
AF-23958 |
Plate, Pivot 7 Ga Price: $90.27 |
| 15 |
AF-23130 |
SPRING MOUNTING BRACKET Not Available Price: |
| 16 |
AF-47572 |
Flanged Lock Nut, 3/8-16 Thread Price: $10.64 |
| 17 |
AF-23122 |
Shaft, Pivot Price: $51.98 |
| 18 |
AF-43070 |
Washer, 3/8" STD Price: $7.04 |
| 19 |
AF-48090 |
BLADE ADJUST SPRING This part replaces AF-9466R. Price: $64.69 |
| 20 |
AF-44071 |
Hex Bolt, 3/8-16 x 3 -1/2" Price: $7.00 |
| 21 |
712-0798 |
Hex Nut 3/8-16 Thd. This part replaces AF-43015. Price: $3.86 |
| 22 |
AF-44074 |
Plastic Cap Price: $15.03 |
| 23 |
AF-41-42 |
Pin, Clevis 1/4" x 1-1/2" Price: $11.08 |
| 24 |
AF-43343 |
Pin Hair Cotter #4 (1/8") Price: $10.95 |
| 25 |
AF-47134 |
Hairpin Cotter, 3/32" #3 This part replaces AF-43055. Price: $5.99 |
| 26 |
AF-46053 |
Spacer, .28 ID x 1" Price: $11.15 |
| 27 |
AF-63283 |
Lift Handle Assembly, Lower Price: $216.69 |
| 28 |
AF-24518 |
Hitch Bracket, RH Price: $45.53 |
| 29 |
AF-24519 |
Hitch Bracket, LH Price: $45.53 |
| 30 |
AF-24023-0637 |
Pivot Support Bracket This part replaces AF-24023. Price: $152.86 |
| 31 |
AF-23129 |
Angle Lock Bar (Long) Price: $18.50 |
| 32 |
AF-46553 |
Lift Handle Upper Price: $97.15 |
| 33 |
AF-23151 |
Angle Lock Bar (Short) Price: $33.55 |
| 34 |
AF-23856 |
SPRING MOUNT ROD Not Available Price: |
| 35 |
726-0100 |
Push Cap This part replaces AF-44917. Price: $3.75 |
| 36 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces AF-43010. Price: $3.90 |
| 37 |
AF-43348 |
Angle Lock Spring Price: $32.12 |
| 38 |
AF-47501 |
Knob Price: $31.95 |
| 39 |
AF-47553 |
Pin, Attachment Price: $15.73 |
| 40 |
720-0204 |
Rubber Grip This part replaces AF-43362. Price: $11.98 |
| 41 |
932-3127 |
COMPRESSION SPRING This part replaces 732-3127. Price: $3.82 |
| 42 |
AF-43659 |
Pin, Spring 3/16" x 1 Price: $6.77 |
| 43 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces AF-43013. Price: $3.93 |
| 45 |
AF-46065 |
Channel Pivot Pin Price: $40.23 |
| 46 |
AF-69740 |
LIFT LINK ASSEMBLY This part replaces AF-63034. Price: $21.14 |
| 47 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces AF-43001. Price: $3.78 |
| 49 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces AF-43003. Price: $3.33 |
| 50 |
AF-R19171616 |
Washer Not Available Price: |
| 51 |
AF-46071 |
BOLT, HEX 1/4-20 x 3-1/4" LG. (GR. 5) Not Available Price: |
| 52 |
715-0108 |
Pin, Sprg, 1/4 Dia x 1.00 This part replaces AF-43349. Price: $4.38 |
| 53 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 57 |
AF-24932 |
Frame Bracket Not Available Price: |
