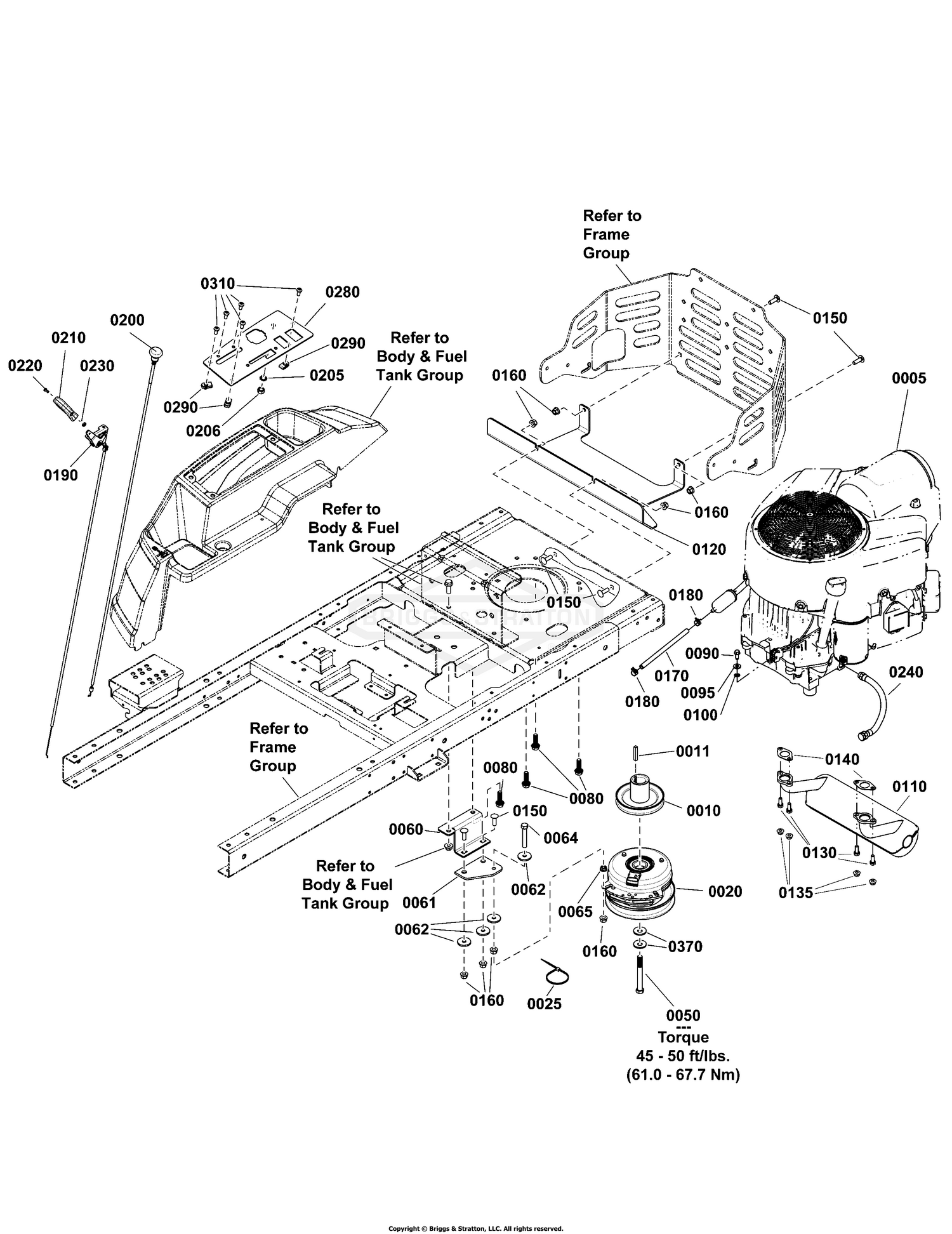

| Ref | Part Number | Description |
|---|
| 0010 |
84007555 |
PULLEY, CRANKSHAFT Price: $54.09 |
| 0011 |
5022726YP |
KEY 1/4 SQ X 1 1/2 Price: $4.62 |
| 0020 |
84006960 |
CLUTCH Price: $238.29 |
| 0025 |
5021030SM |
TIE WRAP, 5-1/2" LONG Price: $2.34 |
| 0050 |
84007266 |
BOLT, Crankshaft Price: $5.72 |
| 0060 |
84007267 |
BRACKET Price: $19.77 |
| 0061 |
84007268 |
PAD Price: $5.82 |
| 0062 |
5044617SM |
WASHER, .34 X 1.25 X Price: $7.35 |
| 0064 |
5025055X18YP |
BOLT, 5/16-18 X 2-1/4 Price: $3.51 |
| 0065 |
5025127SM |
NUT, 5/16-18 HEX SERR Price: $2.97 |
| 0080 |
2828635SM |
SCREW-HEX WSHR HD TAP Price: $4.26 |
| 0090 |
703054 |
SCREW, 1/4-20X0.625 Price: $3.82 |
| 0095 |
703332 |
WASHER This part replaces 22473GS. Price: $3.72 |
| 0100 |
1921880SM |
LOCKWASHER-EXTERNALTO Price: $2.97 |
| 0110 |
1758350YP |
MUFFLER Price: $202.48 |
| 0120 |
84006924 |
HEAT SHIELD Price: $119.24 |
| 0140 |
690970 |
GASKET, Exhaust Price: $4.13 |
| 0150 |
703800 |
BOLT, CRRG, 5/16-18X1 Price: $3.19 |
| 0160 |
703115 |
NUT Price: $3.06 |
| 0170 |
5050831X11YP |
HOSE, 1/4" FUEL, 11.00" Price: Call Us |
| 0180 |
691038 |
CLAMP, Hose This part replaces 93807. Price: $3.12 |
| 0190 |
1759205YP |
CONTROL-THROTTLE Price: $40.25 |
| 0200 |
5100184SM |
CABLE, CHOKE CONTROL, Price: $38.02 |
| 0205 |
703864 |
WASHER, EXT, 3/8 Price: $3.82 |
| 0206 |
703895 |
NUT, HEX, 3/8-24 Price: $3.82 |
| 0210 |
1739312YP |
KNOB, THROTTLE Price: $10.42 |
| 0220 |
797483 |
SCREW Price: $3.66 |
| 0230 |
703460 |
NUT, Hex #8-32 Price: $3.24 |
| 0240 |
1726498SM |
HOSE-OIL DRAIN .375ID Price: $24.79 |
| 0280 |
84006920 |
PANEL, CONTROL Price: $23.14 |
| 0290 |
5022665SM |
BODY CLIP, 1/4-20 X 1 Price: $2.76 |
| 0310 |
703953 |
SCREW, 1/4-20X5/8 Price: $3.82 |
