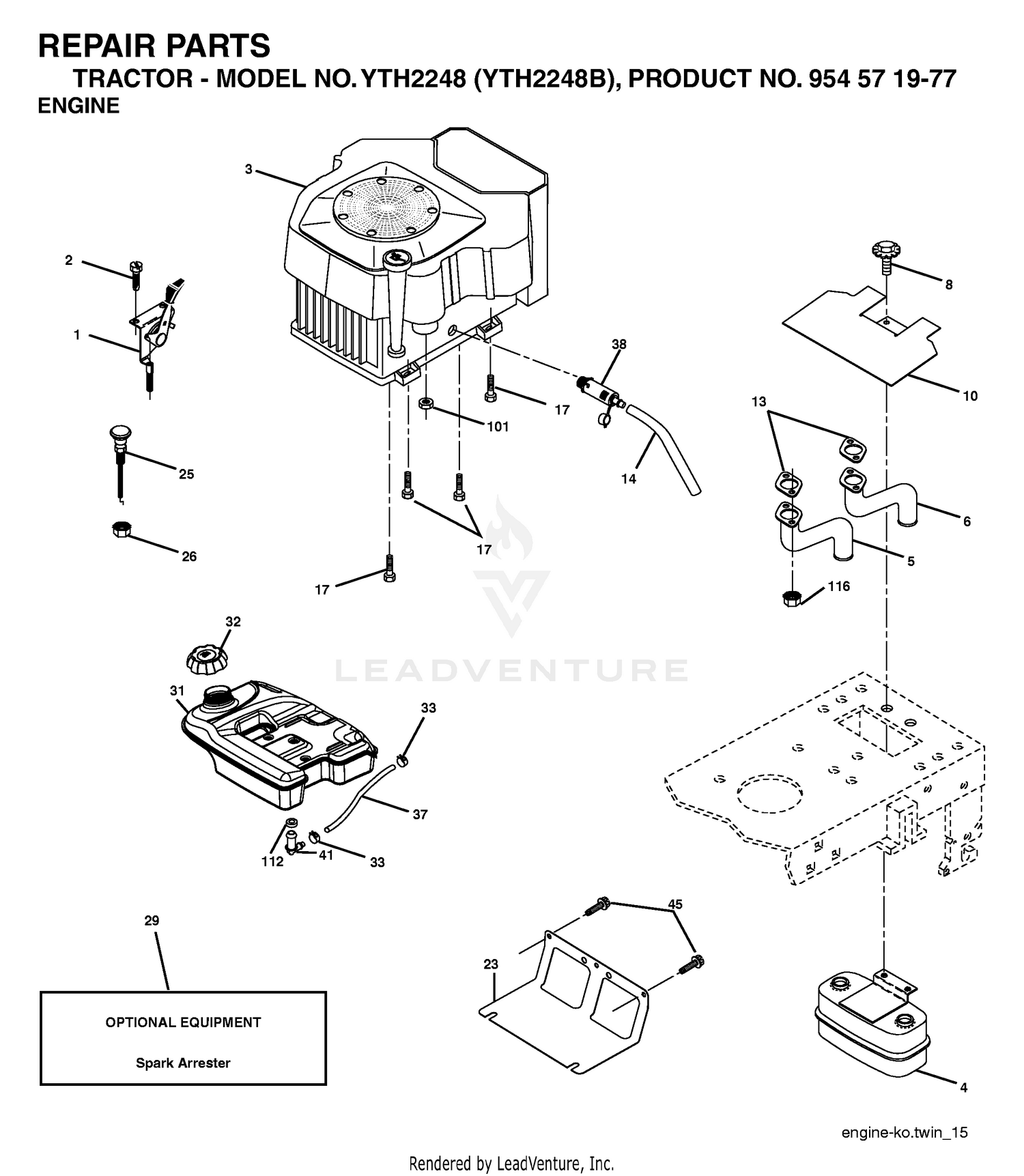

| Ref | Part Number | Description |
|---|
| 1 |
131-0298 |
BYPASS NEEDLE KIT Price: $24.98 |
| 1 |
532190192 |
CONTROL.THROTTLE.BLACK This part replaces 532190259. Price: $27.99 |
| 2 |
127-1180 |
KNOB-BYPASS Price: $76.40 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
127-1179 |
FORK-BYPASS KNOB Price: $7.26 |
| 4 |
127-1187 |
O-RING, ENDCAP Price: $2.55 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
