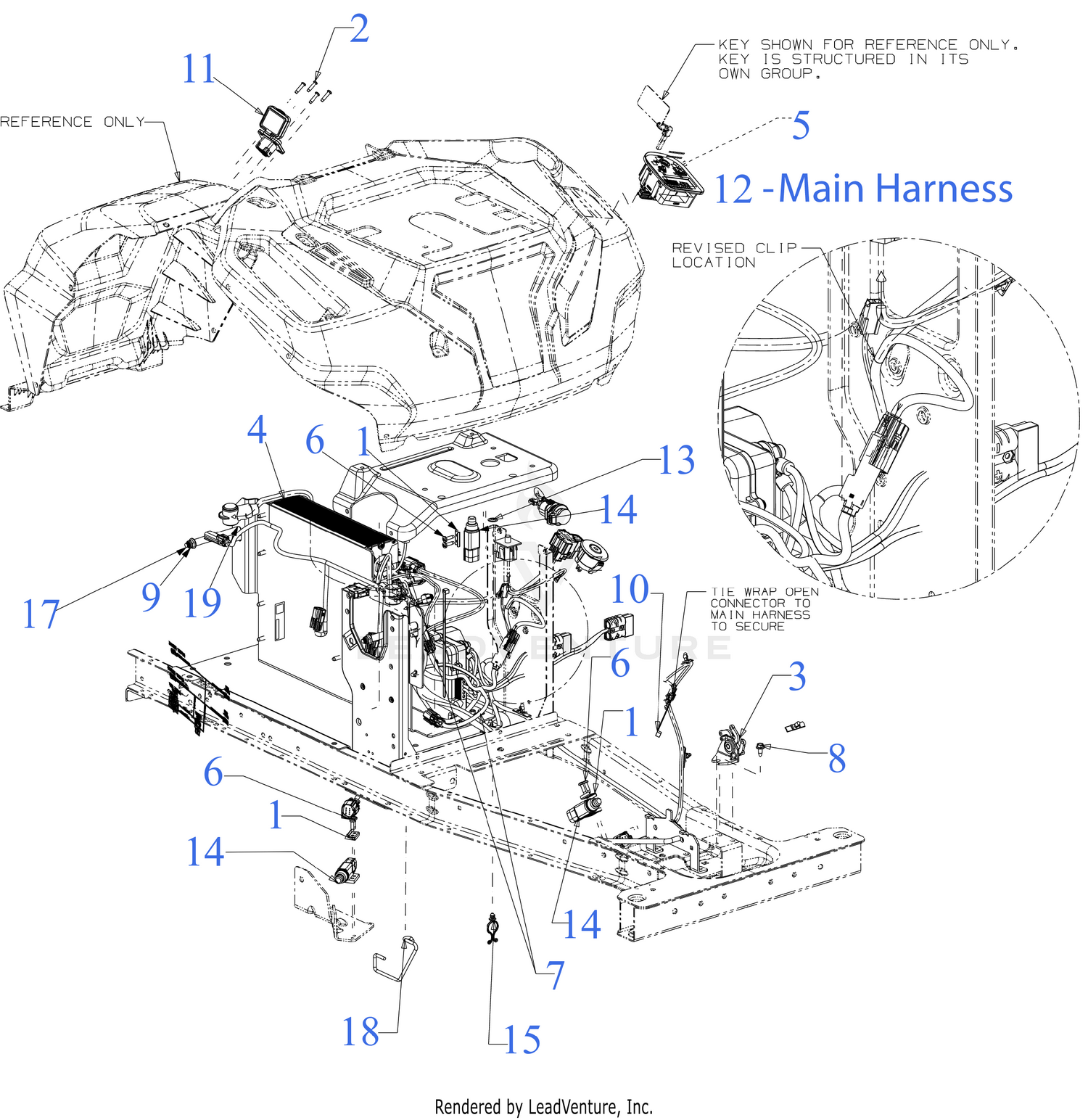

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
PLATE-SWITCH Price: $4.36 |
| 2 |
791-181345 |
SCREW, #8-16X.750 PH Price: $3.75 |
| 3 |
625-07290 |
THROTTLE SENSOR ASSEMLBLY Price: $121.82 |
| 6 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 7 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 8 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 11 |
725P17073C |
CHARGER PORT HARNESS (8-PIN) This part replaces 725P17073A. Price: $167.49 |
| 12 |
725P18120 |
MAIN HARNESS (VCM/SPDM) Price: $416.47 |
| 12 |
929-05136 |
SEALED PLUNGER SWITCH Price: $37.95 |
| 13 |
726-0201 |
PUSH NUT Price: $6.01 |
| 14 |
929-05136 |
SEALED PLUNGER SWITCH Price: $37.95 |
| 15 |
729-07541 |
TWIST LOCK CLIP Price: $2.90 |
| 17 |
747-11691A |
BATTERY ROD 5/16-18 Price: $34.97 |
| 18 |
747-11715 |
DECK CABLE SUPPORT ROD Price: $5.68 |
