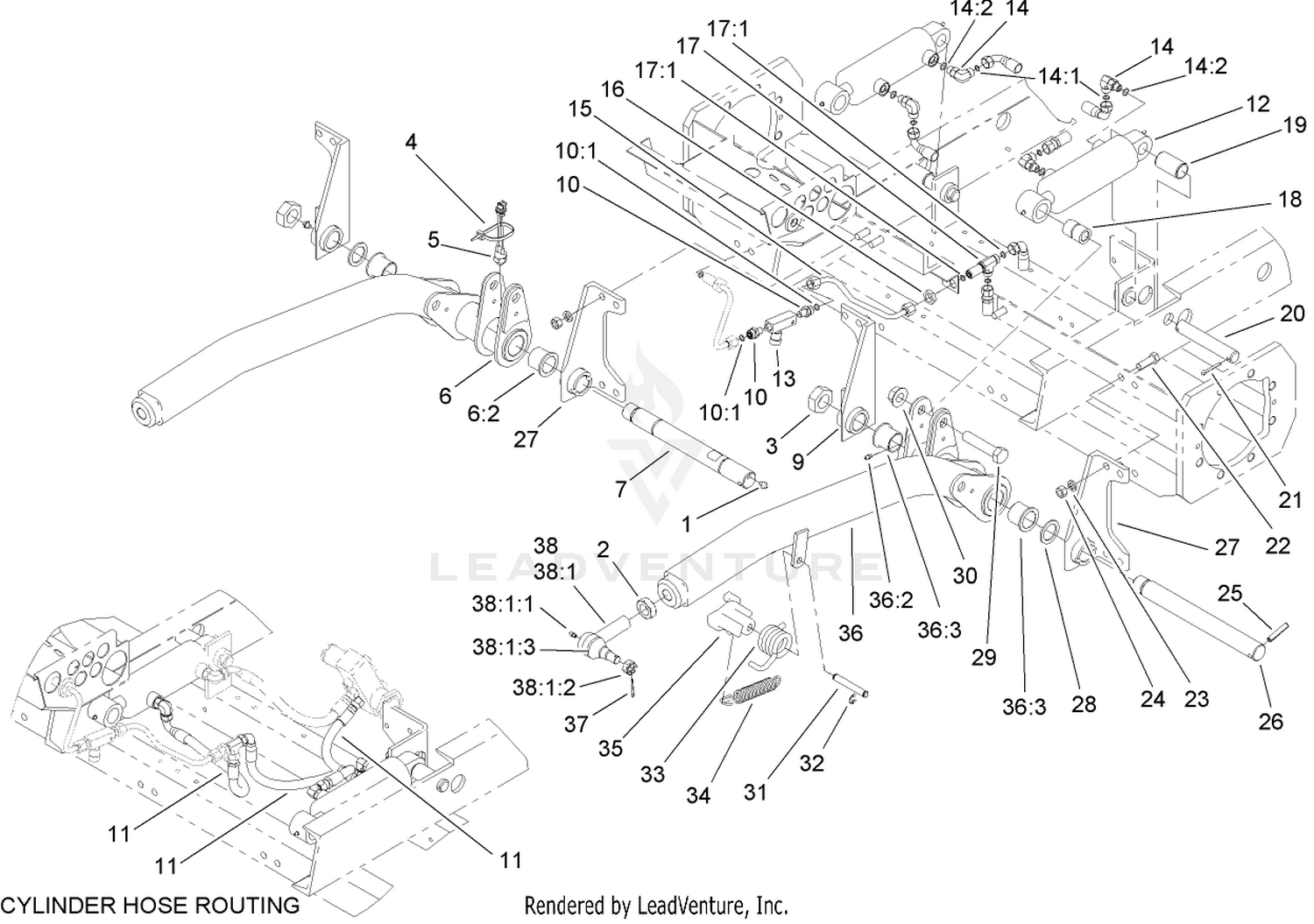

| Ref | Part Number | Description |
|---|
| 1 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 2 |
21-3000-01 |
NUT-JAM, PUSH ARM Price: $37.02 |
| 3 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 4 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 5 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 6 |
69-9570 |
RH FRONT LIFT ARM ASM Price: $1,410.77 |
| 7 |
71-2570 |
SHAFT-PIVOT Price: $431.51 |
| 9 |
69-7940-01 |
SUPPORT-LIFT ARM, RH Price: $234.45 |
| 10 |
340-57 |
FITTING-HYD Price: $9.11 |
| 11 |
69-5440 |
HOSE ASM Price: $73.25 |
| 12 |
92-4971 |
CYLINDER-HYD Price: $718.13 |
| 13 |
93-1397 |
VALVE-CONTROL, FLOW Price: $142.88 |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 15 |
93-7427 |
TUBE ASM Price: $53.80 |
| 16 |
340-70 |
NUT-LOCK Price: $2.10 |
| 17 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 18 |
98-7346 |
SPACER Price: $30.67 |
| 19 |
20-4360-03 |
SPACER Price: $8.01 |
| 20 |
69-9180 |
PIN-CYLINDER Price: $25.38 |
| 21 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 22 |
325-6 |
SCREW-HH Price: $1.42 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 24 |
3217-9 |
NUT-HH Price: $0.37 |
| 25 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 26 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 27 |
69-7920-01 |
SUPPORT-LIFT ARM, LH Price: $214.14 |
| 28 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 29 |
328-5 |
SCREW-HH Price: $3.60 |
| 30 |
32128-45 |
NUT-HHF Price: $7.67 |
| 31 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 32 |
111-1290 |
ENGINE - KUBOTA V1505-E2B-HAYTER-1 This part replaces 92-4806. Price: $3,715.61 |
| 33 |
69-8470-03 |
SPRING-TORSION Price: $92.60 |
| 34 |
76-1670-03 |
SPRING-EXTENSION Price: $24.92 |
| 35 |
69-1540-03 |
PIVOT-SPRING, TORSION Price: $122.27 |
| 36 |
69-9580 |
LH FRONT LIFT ARM ASM Price: $1,165.75 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
