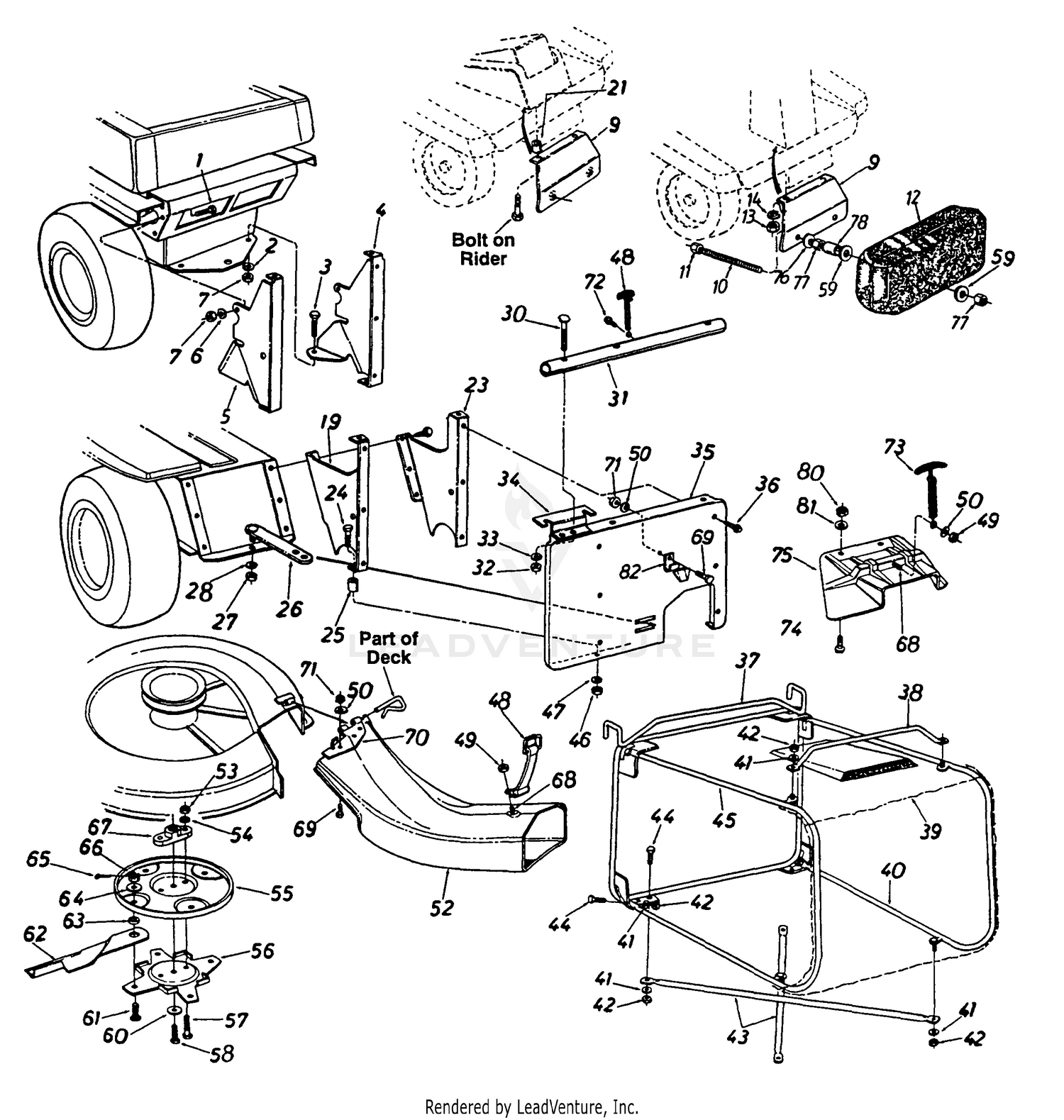

| Ref | Part Number | Description |
|---|
| 3 |
N/A |
UNKNOWN |
| 6 |
N/A |
UNKNOWN |
| 13 |
N/A |
UNKNOWN |
| 14 |
N/A |
UNKNOWN |
| 21 |
711-0242 |
Spacer .380" I.D. x 1" O.D. x .32" Lg. Price: $3.95 |
| 24 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 25 |
750-0434 |
Spacer .38" I.D. x .47" O.D. x 1" Lg. Price: $6.01 |
| 26 |
16602 |
BAR ASSEMBLY-HITCH Not Available Price: |
| 27 |
712-3048 |
Hex Jam Nut 1/2-13 Gr 5 This part replaces 712-0461. Price: $4.08 |
| 30 |
710-1174 |
Carriage Bolt 5/16-18 x 2 This part replaces 710-0405. Price: $6.28 |
| 31 |
749-0659 |
GRASS CATCHER SUPPORT TUB Not Available Price: |
| 32 |
N/A |
UNKNOWN |
| 33 |
N/A |
UNKNOWN |
| 36 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 37 |
15991A |
FRAME ASSEMBLY-CATCHER Not Available Price: |
| 38 |
749-0653-0637 |
CATCHER HANDLE Not Available This part replaces 749-0653. Price: |
| 39 |
764-0210A |
GRASSBAG Not Available Price: |
| 40 |
15992 |
FRAME-SIDE Not Available Price: |
| 41 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 42 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 43 |
749-0651 |
BRACE-BOTTOM Not Available Price: |
| 45 |
15993 |
FRAME-SIDE Not Available Price: |
| 46 |
N/A |
UNKNOWN |
| 47 |
N/A |
UNKNOWN |
| 48 |
923-0383 |
Retainer Strap Assembly This part replaces 723-0383. Price: $13.70 |
| 50 |
N/A |
UNKNOWN |
| 53 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 54 |
N/A |
UNKNOWN |
| 55 |
742-0265 |
BLADE-DISC Not Available Price: |
| 56 |
742-0279 |
BLADE DISC- Not Available Price: |
| 57 |
710-0888 |
Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5) Price: $3.86 |
| 58 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 60 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 61 |
938-0587 |
SHOULDER SCREW .500X.360 Not Available This part replaces 738-0587. Price: |
| 63 |
750-0604 |
SPACER Not Available Price: |
| 64 |
736-0179 |
Fl-Wash. .5" I.D. x 1.25" O.D. Price: $4.02 |
| 66 |
912-0114 |
HEX NUT 1/2-20 Not Available This part replaces 712-0114. Price: |
| 67 |
748-0300 |
Blade Adapter Not Available Price: |
| 70 |
15921 |
BRACKET-MTG Not Available Price: |
| 72 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776A. Price: $3.86 |
| 73 |
723-0370 |
LATCH ASSEMBLY Not Available Price: |
| 74 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 75 |
731-0721 |
CHUTE EXTENSION Not Available Price: |
| 80 |
N/A |
UNKNOWN |
| 81 |
736-0142 |
Fl-Wash. .281" I.D. x .5" O.D. Price: $3.95 |
