| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 2 |
92-6534 |
ORDER COMPLETE SEAT This part replaces 67-9560. Price: Call Us |
| 3 |
283-72 |
PIN-LYNCH Price: $9.12 |
| 4 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 5 |
83-6630 |
SHIM - SWITCH Price: $5.56 |
| 6 |
92-8753 |
DISCONTINUED Price: Call Us |
| 8 |
83-6640 |
SENSOR - REED SWITCH Price: $223.35 |
| 9 |
83-6700 |
SUSPENSION PLATE WA *B Price: $178.89 |
| 10 |
85-6160 |
PIN SPRING Price: $34.80 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 14 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 15 |
83-6690 |
SEAT PLATE WA *B Price: $237.12 |
| 16 |
85-6140 |
SPRING Price: $38.33 |
| 17 |
92-6533 |
SEAT CUSHION KIT This part replaces 92-1179. Price: $290.43 |
| 18 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
| 19 |
92-7301 |
SPACER Price: $8.41 |
| 20 |
69-1180 |
ARMREST Price: $166.08 |
| 21 |
32128-19 |
NUT-HF Price: $0.99 |
| 22 |
323-9 |
SCREW-HH Price: $1.29 |
| 23 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 25 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 26 |
3256-7 |
WASHER-FLAT Price: $0.75 |

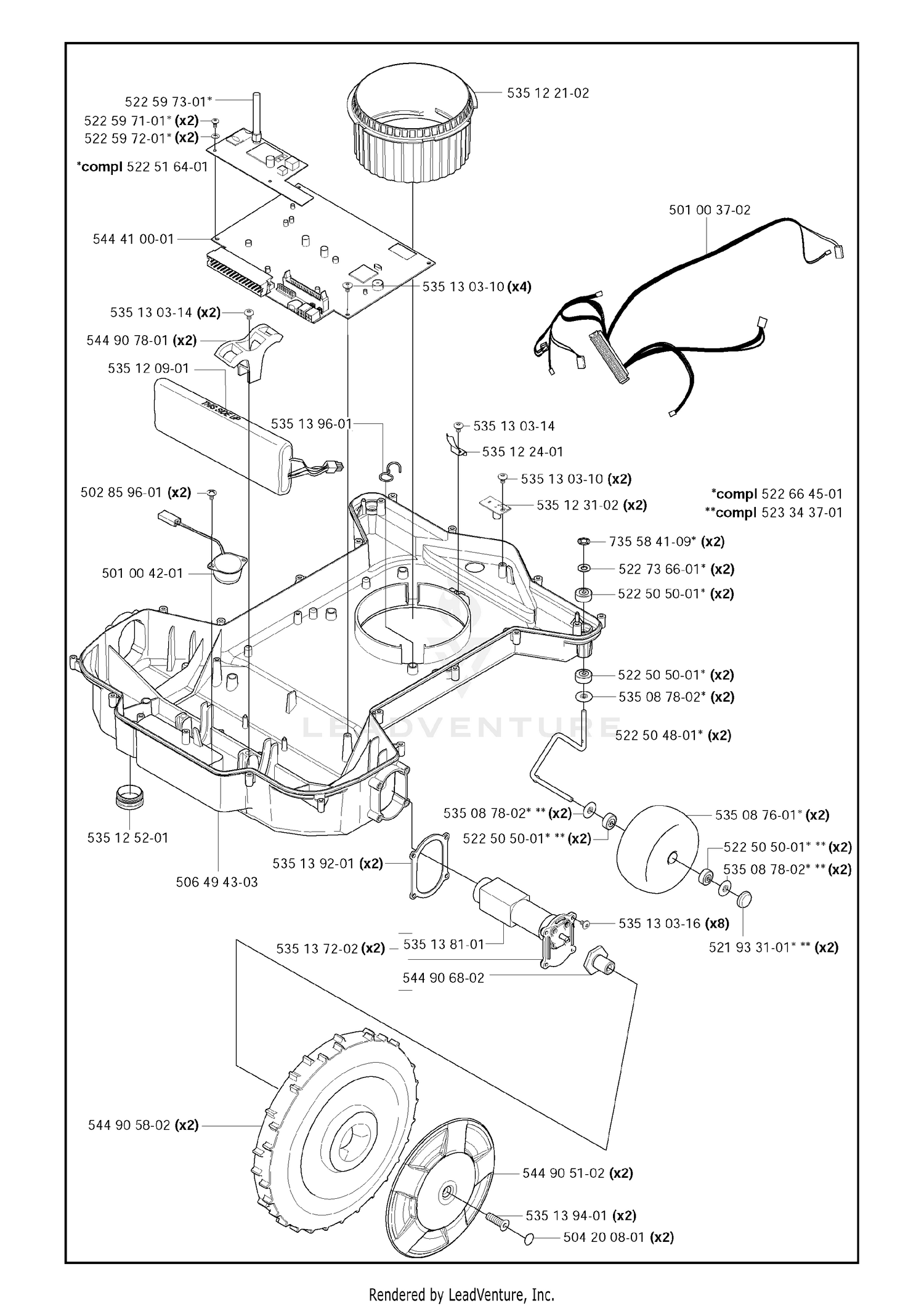

| 501003702 |
501003702 |
MAIN WIRING Price: $107.99 |
| 501004201 |
501004201 |
HORN Price: $49.99 |
| 502859601 |
502859601 |
SCREW Price: $1.99 |
| 506494303 |
506494303 |
CHASSIS LOWER Price: $37.99 |
| 521933101 |
521933101 |
COVER WASHER Price: $3.99 |
| 522504801 |
522504801 |
SPINDLE Price: $11.99 |
| 522505001 |
522505001 |
BALL BEARING Price: $6.99 |
| 522516401 |
522516401 |
RADIO Price: $550.99 |
| 522597101 |
522597101 |
SCREW GSM- MODULE Price: $3.99 |
| 522597201 |
522597201 |
WASHER GSM- MODULE Price: $3.99 |
| 522597301 |
522597301 |
Price: Call Us |
| 522664501 |
522664501 |
KIT FRT WHL AXLE 535087601 Price: $49.99 |
| 522736601 |
522736601 |
WASHER Price: $1.99 |
| 523343701 |
523343701 |
BEARING KIT 6MM AXLE Price: $54.99 |
| 535087601 |
575231701 |
WHEEL, FRONT This part replaces 535087601. Price: $19.99 |
| 535087802 |
535087802 |
WASHER Price: $2.99 |
| 535120901 |
535120902 |
BATTERY This part replaces 535120901. Price: $149.99 |
| 535122102 |
535122102 |
CUTTING HEIGHT NUT Price: $22.99 |
| 535122401 |
535122401 |
SPRING Price: $3.99 |
| 535123102 |
592852201 |
Circuits This part replaces 535123102. Price: $17.99 |
| 535125201 |
535125201 |
PLUG Price: $4.99 |
| 535130310 |
535130310 |
SCREW Price: $2.99 |
| 535130314 |
535130314 |
SCREW Price: $2.99 |
| 535130316 |
575543316 |
SCREW This part replaces 535130316. Price: $3.99 |
| 535137202 |
535137202 |
WHEEL MOTOR W/GEARBOX Price: $249.99 |
| 535138101 |
535137202 |
WHEEL MOTOR W/GEARBOX This part replaces 535138101. Price: $249.99 |
| 535139201 |
535139201 |
GASKET Price: $14.99 |
| 535139401 |
535139401 |
SCREW Price: $3.99 |
| 544410001 |
592852101 |
PRINTED CIRCUIT ASSY PCBA AM23 This part replaces 544410001. Price: $349.00 |
| 544905102 |
544905102 |
HUB CAP Price: $12.99 |
| 544905802 |
544905804 |
REAR WHEEL ASSY 230 This part replaces 544905802. Price: $27.99 |
| 544906802 |
544906802 |
HUB Price: $17.99 |
| 544907801 |
544907801 |
BRACKET Price: $8.99 |
| 735584109 |
576019402 |
LOCKWASHER STARLOCK SS 6MM GEO This part replaces 735584109. Price: $2.99 |
