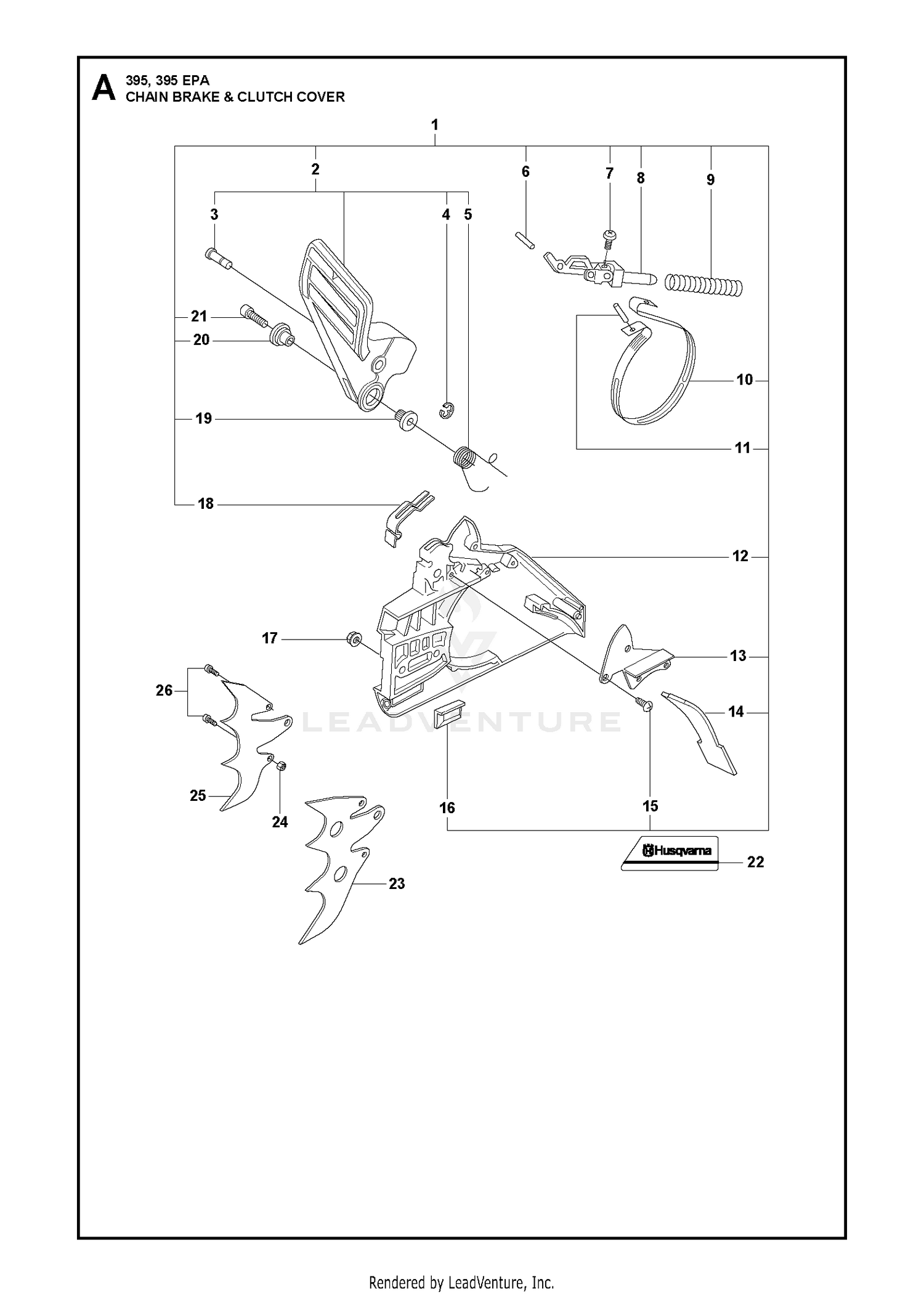

CHAIN BRAKE & CLUTCH COVER
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503731506 | CHAINBRAKE Price: $139.99 |
| 2 | 503760801 | HANDGUARD Price: $24.99 |
| 3 | 503802701 | PIVOT PIN Price: $4.99 |
| 4 | 735310820 | E-RING 4 Price: $2.99 |
| 5 | 503579701 | SPRING Price: $4.99 |
| 6 | 720123300 | PIN 3X10 Price: $2.99 |
| 7 | 503212810 | SCREW Price: $2.99 |
| 8 | 501875301 | KNEE-JOINT Price: $19.99 |
| 9 | 503717101 | BRAKE SPRING Price: $5.99 |
| 10 | 503720702 | BRAKE BAND Price: $12.99 |
| 11 | 721425250 | SPIRAL PIN 4X12 Price: $2.99 |
| 12 | 503731506 | CHAINBRAKE This part replaces 503720801. Price: $139.99 |
| 13 | 503720601 | LID Price: $7.99 |
| 14 | 503573701 | PROTECTOR Price: $5.99 |
| 15 | 503212810 | SCREW Price: $2.99 |
| 16 | 501517201 | CHAIN GUIDE Price: $4.99 |
| 17 | 503220001 | NUT M8 FLANGE Price: $2.99 |
| 18 | 501874701 | SPRING Price: $3.99 |
| 19 | 503520801 | PIVOT SLEEVE L Price: $9.99 |
| 20 | 501768001 | PIVOT SLEEVE R Price: $4.99 |
| 21 | 503202616 | SCREW Price: $2.99 |
| 22 | 537329501 | LABEL Price: $3.99 |
| 23 | 503690201 | FELLING DOG Price: $24.99 |
| 25 | 503712401 | FELLING DOG Price: $17.99 |
| 26 | 503200712 | SCREW This part replaces 503200212. Price: $4.99 |
