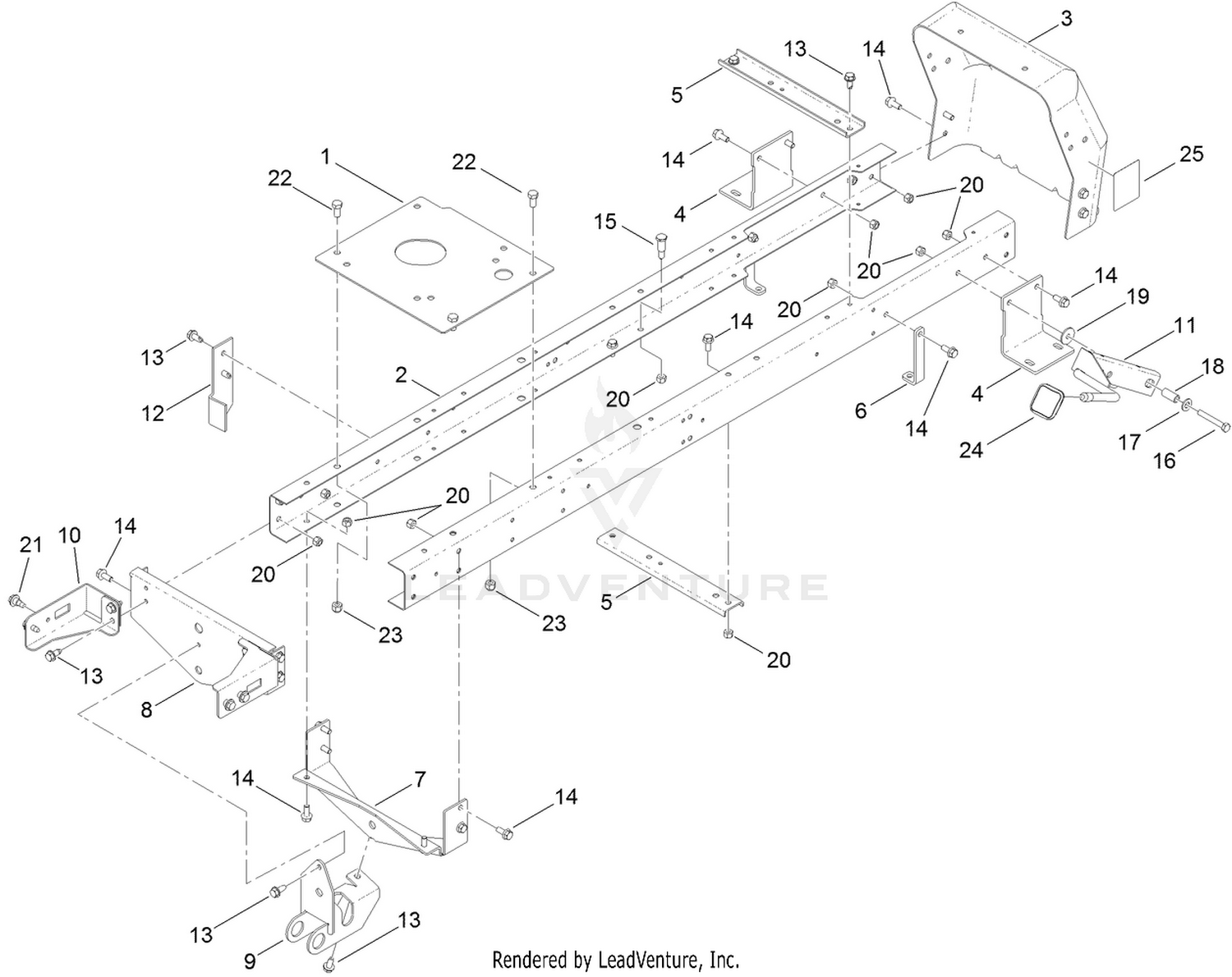

Frame Assembly — Parts Catalog

Ref	Part Number	Description
1	119-8206-03	PLATE-MOUNTING, ENGINE Price: $27.60
2	121-3959-03	RAIL-FRAME Price: $94.92
3	99-2957-03	SUPPORT-SEAT/REAR HITCH Price: $104.43
4	119-1279-03	AXLE-BRACKET Price: $23.90
5	119-8216-03	BRACE-IDLER Price: $14.23
6	119-1280-03	STRAP-TORQUE Price: $12.23
7	119-1291-03	SUPPORT-AXLE, FRONT REAR Price: $55.20
8	119-1290-03	SUPPORT-AXLE, FRONT Price: $40.64
9	119-8200-03	BRACKET-PIVOT, DECK Price: $32.60
10	120-8709-03	BRACKET-HOOD Price: $18.92
11	120-1134-03	LEVER-HOC Price: $28.43
12	117-7788-03	STOP-CLUTCH Price: $18.05
13	32104-32	SCREW-HWH Price: $1.99
14	3234-47	SCREW-HHF Price: $1.79
15	63-2650	SCREW-SHOULDER Price: $6.19
16	322-32	SCREW-HH Price: $1.09
17	3256-24	WASHER-FLAT Price: $0.28
18	65-7210	SPACER Price: $2.71
19	5-4460	WASHER-PIVOT Price: $6.19
20	104-8300	NUT-HF, NI Price: $0.39
21	99-5105	BOLT-SHOULDER Price: $5.89
22	323-4	SCREW-HH Price: $1.02
23	3296-39	NUT-LOCK, NI Price: $2.29
24	94-5565	KNOB-SHIFT Price: $9.83
