| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 7 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 9 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 10 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060. Price: $249.55 |
| 14 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 15 |
106-4619 |
ENGINE KIT 18HP VANGUARD GAS This part replaces 98-0636. Price: $3,846.49 |
| 16 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400. Price: $18.94 |
| 17 |
12-3270 |
SCREW Price: $3.09 |
| 18 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 19 |
98-0616 |
MUFFLER Price: $136.88 |
| 21 |
322-8 |
SCREW-HH Price: $1.26 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER This part replaces 83-1630. Price: $129.03 |
| 25 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 26 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 27 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 28 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120. Price: $114.20 |
| 29 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 30 |
324-7 |
SCREW-HH Price: $1.79 |
| 31 |
32128-20 |
NUT-HF Price: $0.99 |
| 32 |
322-3 |
SCREW-HH Price: $0.79 |
| 33 |
43-2830 |
NUT-HEX Price: $0.39 |
| 34 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 35 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 36 |
33113-016 |
SCREW-HH Price: $0.34 |
| 37 |
95-7145 |
WIRE ASM - ENGINE GROUND Price: $20.41 |
| 38 |
95-7142 |
WIRE HARNESS Price: $252.94 |
| 40 |
2412-81 |
CLAMP-R Price: $3.39 |
| 41 |
3290-379 |
TIE-CABLE Price: $0.31 |

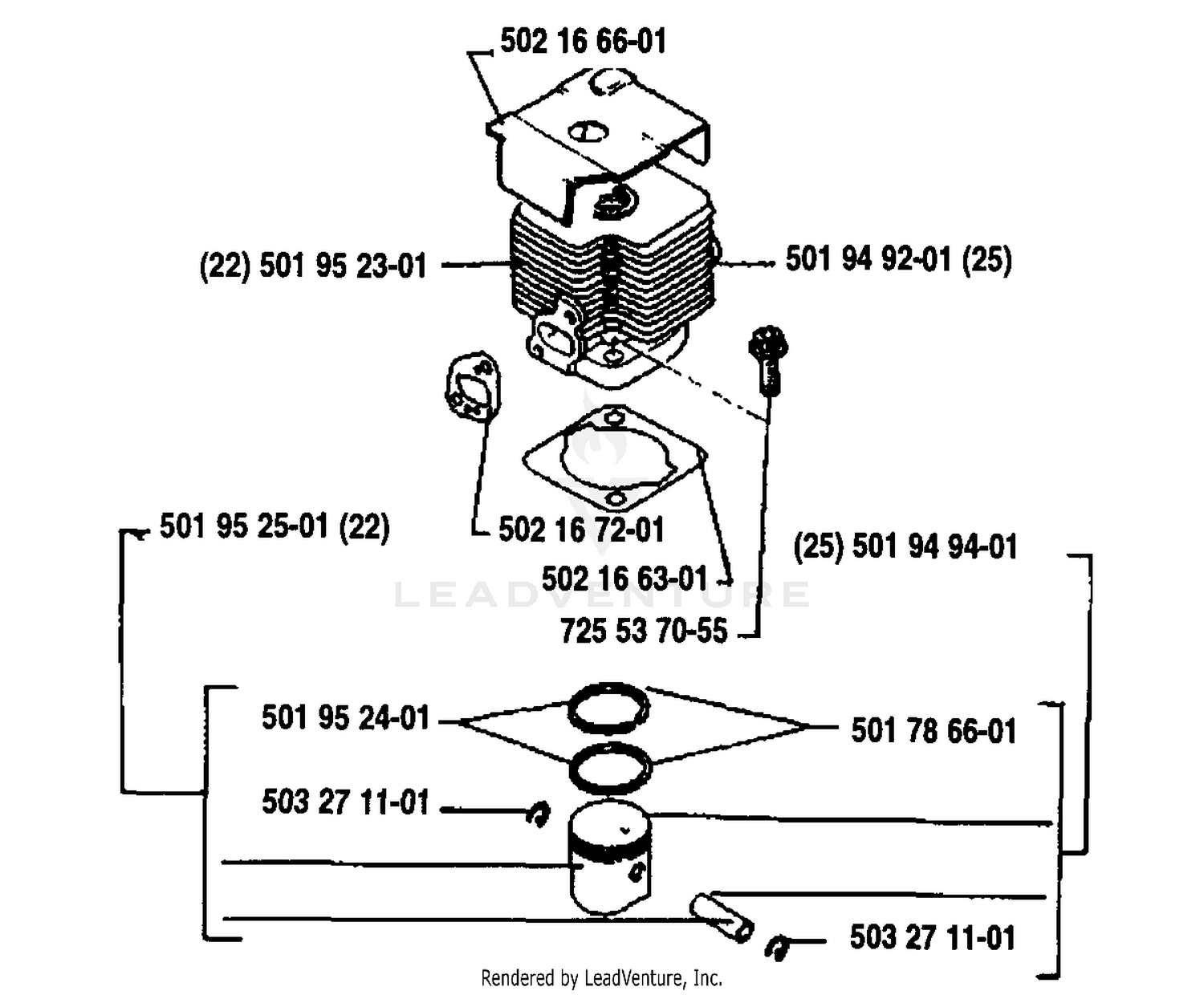

| 501786601 |
501786601 |
PISTON RING Price: $16.99 |
| 501949201 |
501949201 |
CYLINDER Price: $296.76 |
| 501949401 |
501949401 |
PISTON CPL Price: $45.41 |
| 501952301 |
501952301 |
Cylinder Price: $145.26 |
| 501952401 |
501952401 |
PISTON RING Price: $22.99 |
| 501952501 |
501952501 |
Piston Kpl Price: $51.45 |
| 502166301 |
502166301 |
GASKET CYLINDER Price: $4.74 |
| 502166601 |
502166601 |
AIR CONDUCTOR Price: $2.52 |
| 502167201 |
502167201 |
GASKET Price: $5.42 |
| 503271101 |
503271101 |
Retaining Ring Price: $1.50 |
| 725537055 |
725537055 |
SCREW MC6S 6X20 Price: $4.99 |
