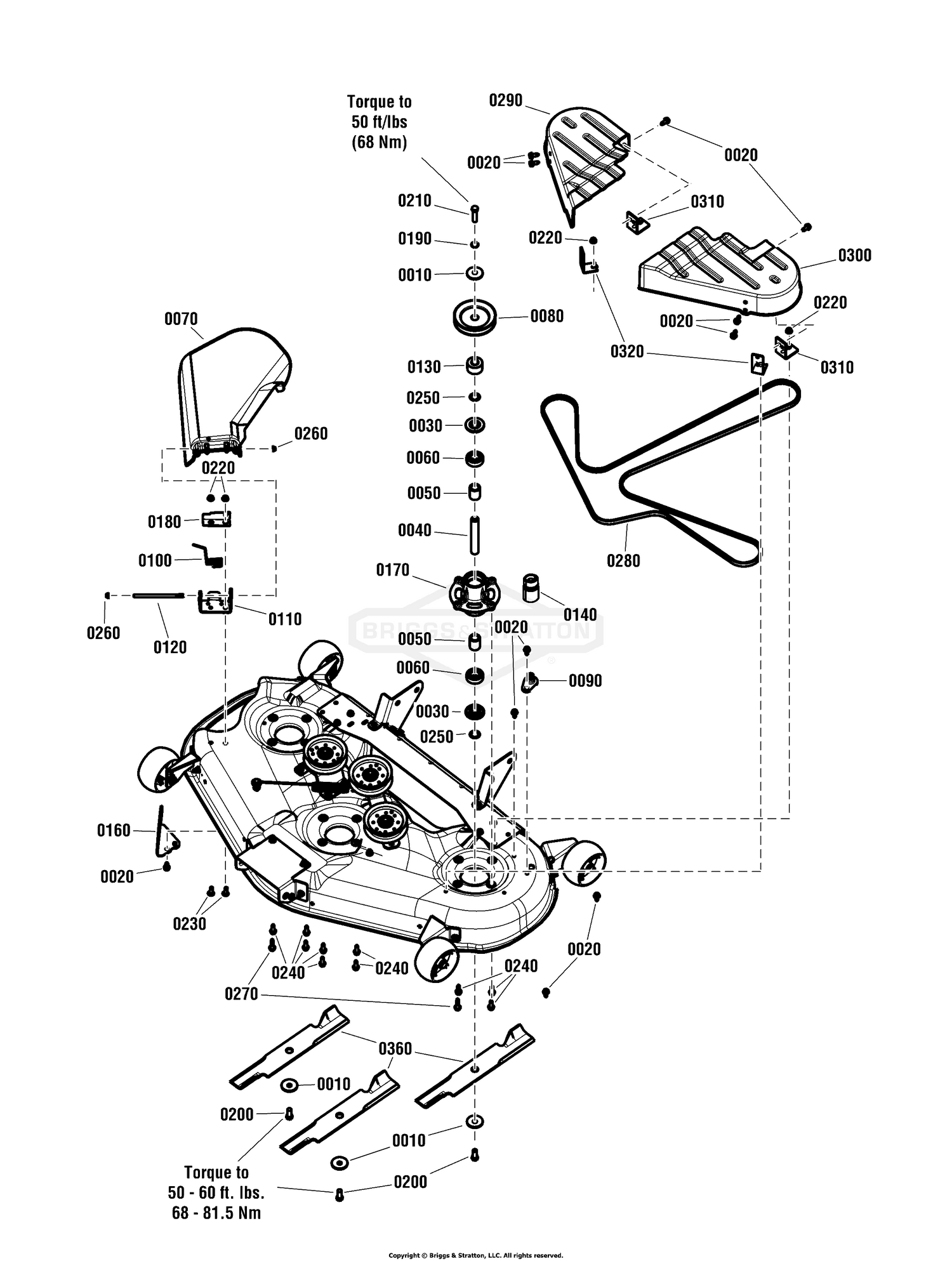

| Ref | Part Number | Description |
|---|
| 0010 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0020 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0030 |
84003166 |
COVER, ARBOR This part replaces 1735323YP. Price: $6.34 |
| 0040 |
84003170 |
SHAFT, SPINDLE This part replaces 1735326YP. Price: $27.77 |
| 0050 |
1735328YP |
SPACER, Bearing Powdered Metal Price: $5.78 |
| 0060 |
1735399YP |
BEARING, Ball, 20mm Price: $8.70 |
| 0070 |
1687750YP |
DEFLECTOR, Discharge, Plastic 46/52 Decks Price: $34.49 |
| 0080 |
1735686YP |
PULLEY, 4.6 OD, Split Price: $18.02 |
| 0090 |
1756247YP |
ADAPTOR, Washout Port Price: $5.78 |
| 0100 |
1736364YP |
SPRING, Torsion, Deflector, 2.16 Long Price: $7.27 |
| 0110 |
1736365BMYP |
PIVOT, HINGE Price: $11.01 |
| 0120 |
1736366YP |
ROD, Hinge, .313 Dia. X 5.6 Long, Zinc Plated Price: $10.54 |
| 0130 |
1736445YP |
SPACER, Pulley, Powdered Metal Price: $12.47 |
| 0140 |
1756246YP |
CONNECTOR, Washout Port 46/52” Black Poly Price: $14.39 |
| 0160 |
1737279BMYP |
BAFFLE, Pinchoff Price: $16.09 |
| 0170 |
84003654 |
HOUSING ASSEMBLY This part replaces 1737352YP. Price: $40.82 |
| 0180 |
1737359BMYP |
PLATE, Deflector Closeoff Price: $7.27 |
| 0190 |
704007 |
LCKWSHR,7/16,SPLIT RE Price: $3.94 |
| 0200 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0210 |
703171 |
HHCS This part replaces 705424. Price: $3.50 |
| 0220 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0230 |
704065 |
BOLT, 5/16-18X.875 Price: $3.61 |
| 0240 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0250 |
1960766YP |
RING, SELF LOCKING Price: $3.82 |
| 0260 |
704028 |
PUSHNUT, CAP, 5/16 Price: $4.59 |
| 0270 |
703167 |
SCREW Price: $3.50 |
| 0280 |
7103788YP |
BELT, RZT, 46” Deck, EL A-Wedge Section, 143.35” Effective Length Price: $98.39 |
| 0290 |
7104696YP |
COVER, Spindle, 46”/52” Deck RH 285Z Price: $51.59 |
| 0300 |
7104697YP |
COVER, Spindle, 46”/52” Deck LH 285Z Price: $51.59 |
| 0310 |
7301133BMYP |
BRACKET, Rear Deck Cover Support 285Z Price: $13.15 |
| 0320 |
7301134BMYP |
BRACKET, 46/52 Cover Mounting Price: $15.29 |
