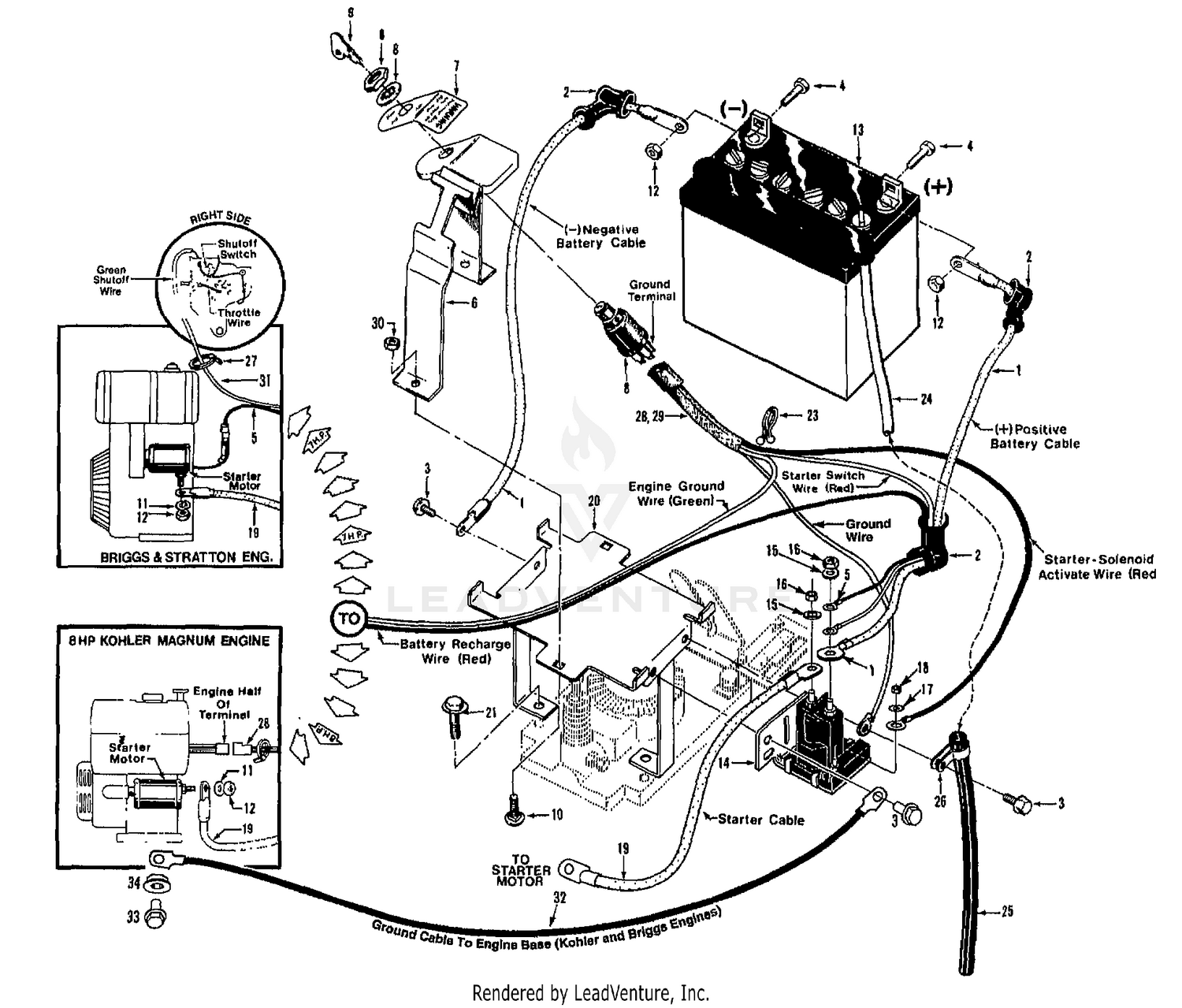

| Ref | Part Number | Description |
|---|
| 1 |
GW-96515 |
CABLE-BATTERY 10" This part replaces 96515. Price: $13.84 |
| 2 |
GW-97020 |
BOOT-BATTERY CABLE Not Available This part replaces 97020. Price: |
| 3 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86 |
| 4 |
1186309 |
SCREW-FLANGE Not Available This part replaces GW-9780. Price: |
| 5 |
1901894 |
WIRE ASSEMBLY-RECHARGI Not Available This part replaces GW-1554. Price: |
| 6 |
1900873 |
KEYSWITCH W/DECAL This part replaces 1904564. Price: $142.31 |
| 7 |
777S30648 |
Label, Ignition Switch This part replaces 1904548. Price: $4.25 |
| 8 |
925-0267B |
Ignition Switch This part replaces 1908112. Price: $33.31 |
| 9 |
925-0201 |
Key This part replaces 96520. Price: $8.70 |
| 10 |
1186073 |
Carriage Screw, 1/4-20 x 1.25 This part replaces GW-9566. Price: $2.67 |
| 11 |
936-0329 |
Lock Washer This part replaces GW-9910. Price: $3.90 |
| 12 |
GW-9800 |
NUT-HEX 1/4-20 ZP Price: $4.05 |
| 13 |
925-1707D |
BATTERY Not Available This part replaces GW-9092B. Price: |
| 14 |
GW-96514099 |
Solenoid (Incl. Nuts and Washers for Cables and Wires) This part replaces 96514. Price: $42.19 |
| 15 |
936-0119 |
LOCK WASHER 5/16 This part replaces GW-9912. Price: $4.29 |
| 16 |
912-3057 |
NUT-5/16X 24 This part replaces GW-9826. Price: $5.94 |
| 17 |
936-0147 |
EXTERNAL WASHER #10 Not Available This part replaces 9921. Price: |
| 18 |
1186208 |
Hex Nut, #10-32 Not Available This part replaces GW-9809. Price: |
| 19 |
GW-96510 |
Cable (solenoid to starter motor) This part replaces 96510. Price: $10.43 |
| 20 |
GW-2571 |
BRKT-BATTERY OPC PNT This part replaces 2571. Price: $113.38 |
| 21 |
1186349 |
SCR-HFLK 3/8-16X1.50 This part replaces GW-90047. Price: $3.11 |
| 23 |
GW-9265 |
TIE-TWIST LOCK Not Available This part replaces 9265. Price: |
| 24 |
9009 |
TUBE-VENT BATTERY/HSE Price: Call Us |
| 25 |
1475 |
TUBING-RUBBER Price: Call Us |
| 26 |
9224 |
CLAMP Price: Call Us |
| 28 |
1908118 |
WIRE HARNESS Not Available Price: |
| 29 |
1908117 |
ASSM-WIRE HARNESS Not Available Price: |
| 30 |
1186389 |
NUT-HF/LK 1/4-20 ZP This part replaces GW-9844. Price: $3.05 |
| 31 |
1901202 |
CABLE-BATTERY 15" Price: $30.69 |
| 31 |
20421 |
ASSM-WIRE Not Available Price: |
| 32 |
1901202 |
CABLE-BATTERY 15" Price: $30.69 |
| 33 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces GW-90045. Price: $4.19 |
