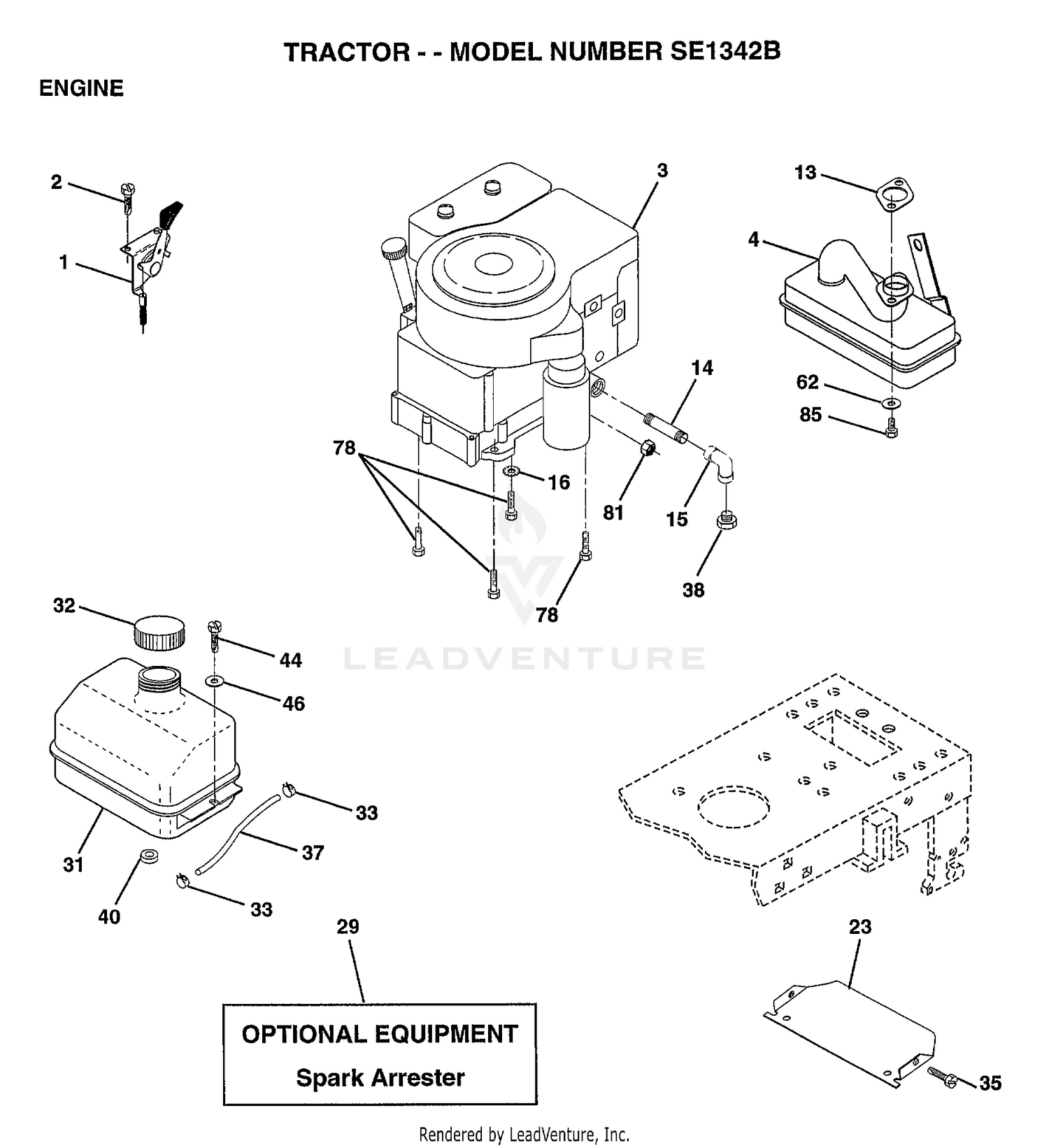

| Ref | Part Number | Description |
|---|
| 1 |
157626 |
CONTROL-THROT/CHO Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
156700 |
MUFFLER TEC. 13HP Price: Call Us |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
| 81 |
128861 |
NUT Price: Call Us |
