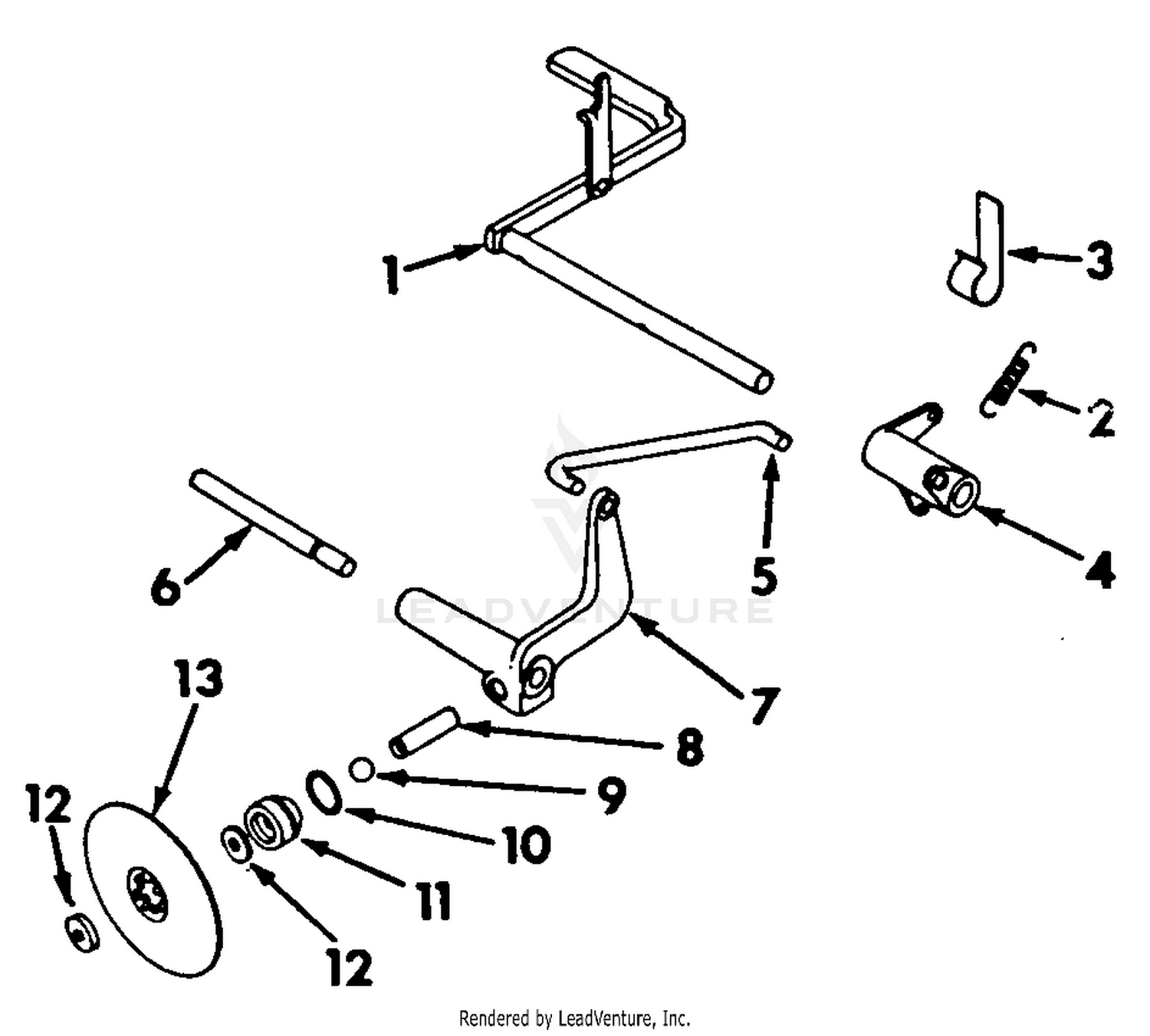

| Ref | Part Number | Description |
|---|
| 1 |
None |
Pedal Assy, Brake |
| 1 |
94-1257 |
DISCONTINUED Price: Call Us |
| 2 |
107-4803 |
CAP-SEALING This part replaces 42-7080. Price: $14.47 |
| 2 |
IH-370278-R2 |
SPRING Not Available This part replaces IH-370278-R1. Price: |
| 3 |
75-4900 |
BRG SET, CRANKSHAFT STD Price: $187.56 |
| 3 |
IH-394037-R1 |
CLIP Not Available Price: |
| 4 |
None |
Lever, Brake Rod |
| 4 |
67-2200 |
SEAL Price: $11.20 |
| 5 |
None |
Rod, Brake |
| 5 |
67-2250 |
DISCONTINUED Price: Call Us |
| 6 |
IH-394032-R1 |
PIN Not Available Price: |
| 7 |
67-3010 |
CAM SHAFT Price: $1,102.40 |
| 7 |
IH-394033-R1 |
LEVER Not Available Price: |
| 8 |
56-0480 |
WOODRUFF KEY Price: $3.88 |
| 8 |
IH-394031-R1 |
PIN Not Available Price: |
| 9 |
67-3030 |
DISCONTINUED Price: Call Us |
| 9 |
IH-17018-R1 |
BALL 9/16 Not Available Price: |
| 10 |
67-3000 |
DISCONTINUED Price: Call Us |
| 10 |
IH-378031-R1 |
RING Not Available Price: |
| 11 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 11 |
IH-384720-R2 |
RETAINER Not Available Price: |
| 12 |
67-3020 |
GEAR Price: $533.60 |
| 12 |
IH-384719-R2 |
PAD-BRAKE LINING This part replaces IH-384719-R1. Price: $22.47 |
| 13 |
67-3090 |
GEAR ASSEMBLY Price: $393.33 |
| 14 |
67-3040 |
PLATE Price: $13.46 |
| 15 |
56-1060 |
DISCONTINUED Price: Call Us |
| 17 |
67-3070 |
GEAR Price: $237.67 |
| 20 |
42-7840 |
SUNK KEY Price: $9.67 |
| 21 |
67-3060 |
SHAFT Price: $394.25 |
| 22 |
67-3050 |
BEARING Price: $29.09 |
| 23 |
67-3080 |
SNAP RING Price: $1.67 |
| 503200823 |
725533355 |
SCREW MC6S 5X25 This part replaces 503200823. Price: $3.99 |
| 503289052 |
503289052 |
PISTON RING Price: $22.99 |
| 503289119 |
503289119 |
PISTON BOLT Price: $5.99 |
| 503414101 |
503414101 |
SUPPORT BUSHING Price: $11.99 |
| 537312801 |
585998302 |
PISTON ASSY This part replaces 537312801. Price: $74.99 |
| 537333001 |
537333002 |
GASKET CYLINDER This part replaces 537333001. Price: $4.99 |
| 544400601 |
574364301 |
CYLINDER ASSY This part replaces 544400601. Price: $159.99 |
