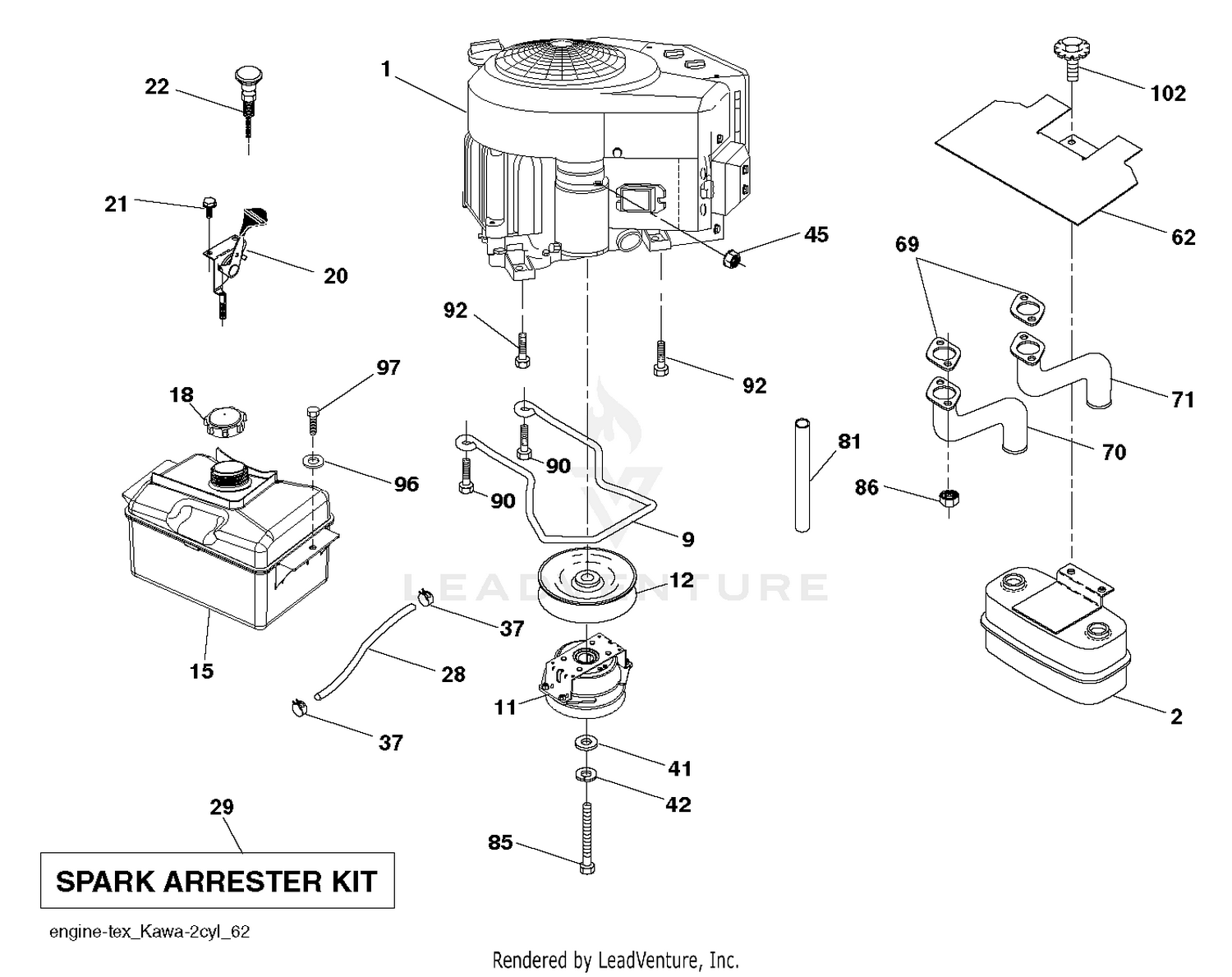

| Ref | Part Number | Description |
|---|
| 1 |
82-8170 |
CLAMP Price: $17.27 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 2 |
93-7960 |
SPACER Price: $5.67 |
| 3 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 4 |
60-6700 |
BOLT-HH Price: $1.29 |
| 5 |
84-2780 |
DECAL - NO STEP Price: $11.39 |
| 5 |
93-6687 |
DECAL-NO STEP This part replaces 36-3400. Price: $14.45 |
| 6 |
93-9194 |
LIFT ARM WA - #5 *B Price: $897.89 |
| 7 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 8 |
237-21 |
O-RING Price: $0.70 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
75-5890 |
HOSE Price: $75.32 |
| 10 |
237-78 |
O-RING Price: $3.85 |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
92-7564 |
HOSE-HYD Price: $84.98 |
| 13 |
98-8069 |
CYLINDER - HYD 1-5/8 This part replaces 93-7551. Price: $778.75 |
| 14 |
256-172 |
BUSHING Price: $4.57 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $99.99 |
| 15 |
94-1430 |
DISCONTINUED Price: Call Us |
| 16 |
93-4224 |
SHOCK ABSORBER Price: $143.44 |
| 17 |
69-8980 |
WASHER Price: $0.58 |
| 18 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 20 |
98-8188 |
PIN WA W/NUT This part replaces 95-3461. Price: $9.33 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
88-0440 |
DISCONTINUED Price: Call Us |
| 21 |
88-1900 |
DISCONTINUED Price: Call Us |
| 21 |
93-6693 |
DECAL-PLATE, FLOOR Price: $10.84 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
99-5669 |
CARRIER FRAME WA This part replaces 93-2649. Price: $2,556.86 |
| 23 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 24 |
328-7 |
SCREW-HH Price: $4.00 |
| 25 |
94-8949 |
BUSHING-FLANGE Price: $2.51 |
| 27 |
94-1425 |
BAR - LIFT CENTER WA Price: $214.36 |
| 28 |
587044860 |
HOSE.1/4".LOW.PERM.FUEL.LN.60" This part replaces 587044660. Price: $17.99 |
| 28 |
82-6490 |
HOSE Price: $83.18 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 30 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 31 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 32 |
93-9193 |
DISCONTINUED Price: Call Us |
| 34 |
92-8754 |
DISCONTINUED Price: Call Us |
| 35 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 36 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 38 |
138-6951 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2650. Price: $664.52 |
| 39 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 40 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
93-9190 |
DISCONTINUED Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 42 |
93-4234 |
SCREW-HSH Price: $6.08 |
| 44 |
93-9181 |
KNUCKLE - PIVOT *B Price: $573.32 |
| 45 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 46 |
99-5610 |
PIN This part replaces 93-9161. Price: $40.16 |
| 47 |
93-7524 |
DISCONTINUED Price: Call Us |
| 48 |
94-8947 |
BUSHING-FLANGE Price: $4.54 |
| 49 |
94-8948 |
BUSHING - STRAIGHT Price: $7.56 |
| 50 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 51 |
92-7565 |
HOSE ASM Price: $89.51 |
| 52 |
92-7562 |
HOSE ASM Price: $71.47 |
| 53 |
2412-96 |
CLAMP-R Price: $3.46 |
| 54 |
322-4 |
SCREW-HH Price: $0.35 |
| 55 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 56 |
33104-060 |
SCREW-HHF Price: $1.02 |
| 57 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 58 |
33105-040 |
SCREW-HHF Price: $1.49 |
| 59 |
98-8811 |
CYLINDER - HYD This part replaces 93-7555. Price: $877.67 |
| 60 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
