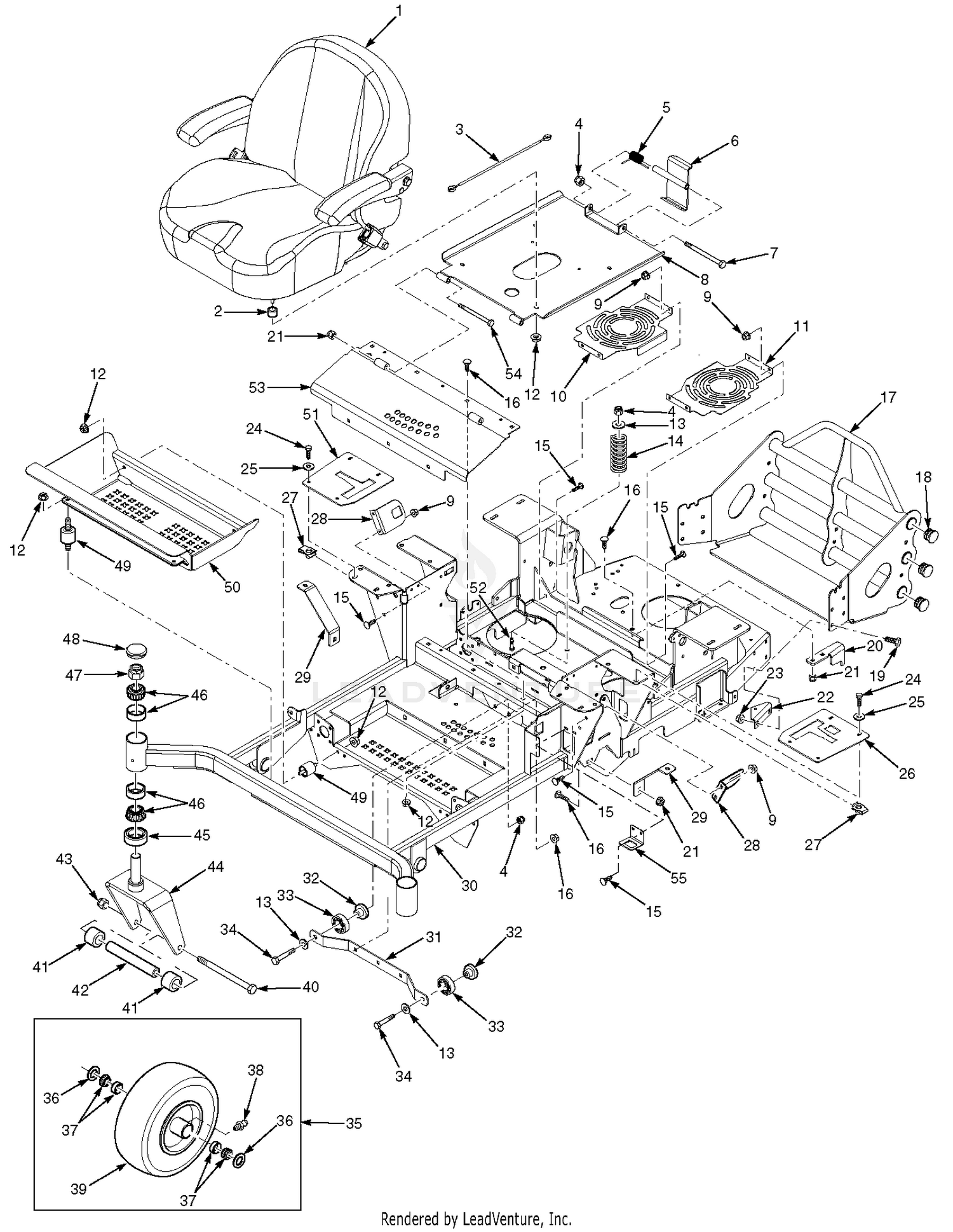

| Ref | Part Number | Description |
|---|
| 1 |
484375 |
Seat Assembly Price: Call Us |
| 2 |
43336 |
Spacer Price: Call Us |
| 3 |
483559 |
Cable, Seat Stop Price: Call Us |
| 4 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 5 |
483371 |
Spring, Seat Latch Price: Call Us |
| 6 |
451883 |
Weldment, Seat Latch Price: Call Us |
| 7 |
04001-100 |
Bolt, Hex Head 3/8-16 x 6" Price: Call Us |
| 8 |
462446 |
SEAT PLATE W/ DECALS, SFZ-61 This part replaces 452264. Price: Call Us |
| 9 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 10 |
425698 |
Fan Cover, RH Price: Call Us |
| 11 |
425697 |
Fan Cover, LH Price: Call Us |
| 12 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 13 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 14 |
483372 |
Spring, Seat Price: Call Us |
| 15 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 16 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 17 |
452334 |
Bumper Weldment Price: Call Us |
| 18 |
483535 |
Plug, Bumper Tube Price: Call Us |
| 19 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 20 |
425696 |
Anti-Rotation Bracket Price: Call Us |
| 21 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 22 |
424639 |
Bracket, Dump Valve Price: Call Us |
| 23 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 24 |
04001-14 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 25 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 26 |
462483 |
Control Plate w/Decal, LH Price: Call Us |
| 27 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 28 |
424511 |
Bracket, Switch Mount Price: Call Us |
| 29 |
425700 |
Bracket, Tank Mount Price: Call Us |
| 30 |
463003 |
Mainframe Assy., w/Decals - SPZ61 This part replaces 462443. Price: Call Us |
| 31 |
424480 |
Support, Deck Guide Price: Call Us |
| 32 |
43703 |
Spacer, Bearing Price: Call Us |
| 33 |
483379 |
Bearing Price: Call Us |
| 34 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 35 |
482503 |
Wheel Assembly Price: Call Us |
| 36 |
482622 |
Seal Price: Call Us |
| 37 |
482621 |
Bearing Price: Call Us |
| 38 |
48114-04 |
Fitting, Grease Price: Call Us |
| 39 |
481613 |
Tire, 13 x 5-6 Price: Call Us |
| 40 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" Price: Call Us |
| 41 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 42 |
43581 |
Sleeve, Caster Wheel Price: Call Us |
| 43 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 44 |
451471 |
Yoke Weldment Price: Call Us |
| 45 |
481025 |
Seal, 2" OD x 1.625 ID Price: Call Us |
| 46 |
48668 |
Bearing Set Price: Call Us |
| 47 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 48 |
484195 |
Cap, Grease Price: Call Us |
| 49 |
483493 |
Rubber Isolator Price: Call Us |
| 51 |
462484 |
Control PLate w/Decal, RH Price: Call Us |
| 52 |
04003-11 |
Bolt, Carriage 3/8-16 x 1-1/4" Price: Call Us |
| 53 |
462763 |
DECKLIFT COVER W/ DECAL, SFZ-61 This part replaces 462369. Price: Call Us |
| 54 |
04001-73 |
Bolt, Hex Head 5/16-18 x 3-3/4" Price: Call Us |
| 482625 |
Rim |
Price: Call Us 482625 |
