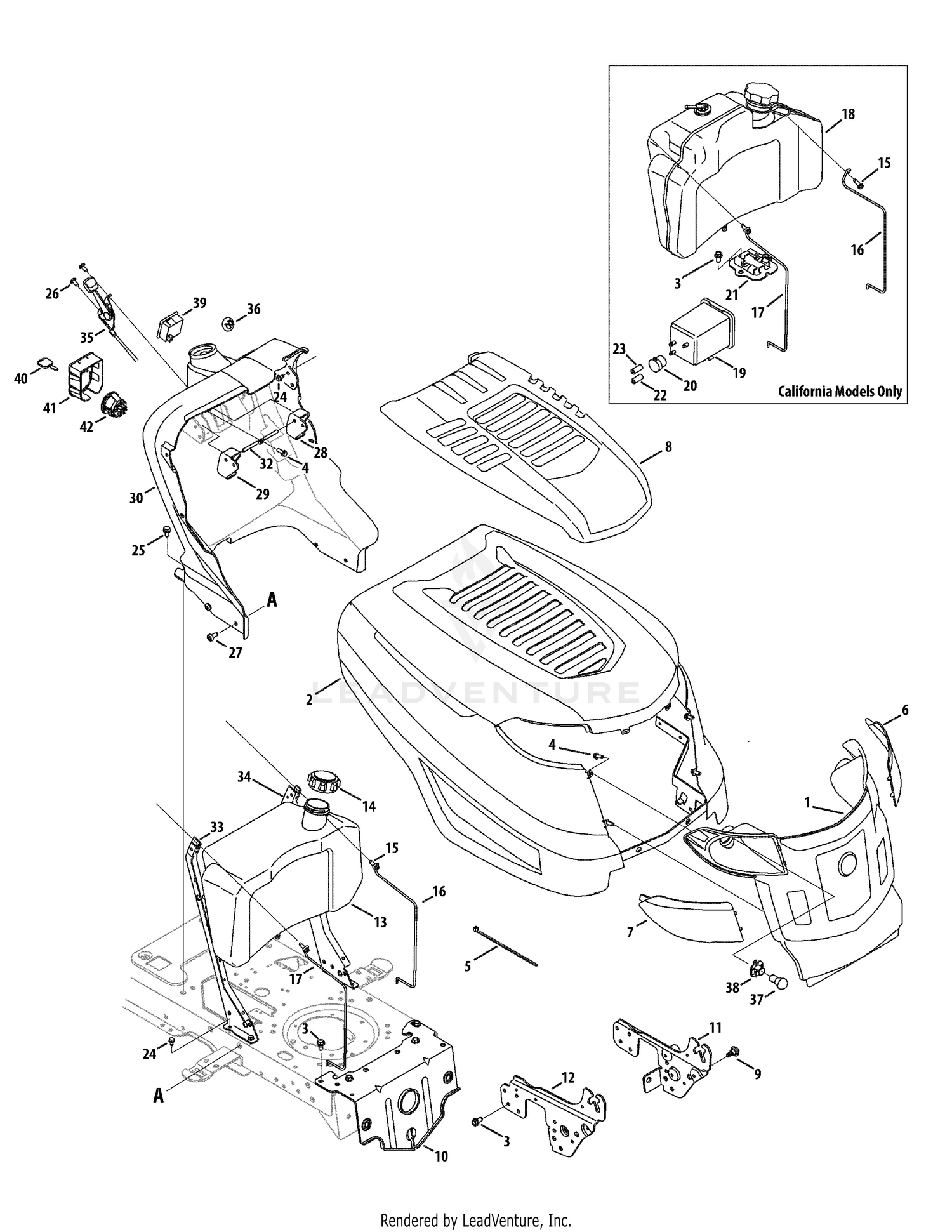

| Ref | Part Number | Description |
|---|
| 1 |
631-04272 |
Grill Assembly Price: $61.79 |
| 2 |
683-04441A-0638 |
Hood Assembly This part replaces 683-04441-0638. Price: $313.46 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0895 |
Self-tapping Screw, 1/4-15 x.75 Price: $5.82 |
| 5 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 6 |
731-06095 |
Headlight Lens (LH) Price: $10.81 |
| 7 |
731-06096 |
Headlight Lens (RH) Price: $10.74 |
| 8 |
731-06194B |
Hood Scoop This part replaces 731-06194A. Price: $49.26 |
| 9 |
738-04091A |
Shoulder Screw,.43 x.29 Price: $3.50 |
| 10 |
783-05326D-0637 |
PIVOT BAR BRACKET (POWDER BLACK) This part replaces 783-05326-0637. Price: $29.27 |
| 11 |
783-05327B-0637 |
Pivot support Bracket, LH Price: $35.56 |
| 12 |
783-05328B-0637 |
SUPPORT BRACKET (RH) This part replaces 783-05328A-0637. Price: $37.34 |
| 13 |
751-10609 |
FUEL TANK (2.5 GAL) Not Available Price: |
| 14 |
751-0603B |
TANK CAP This part replaces 751-0603A. Price: $20.42 |
| 15 |
710-0642 |
Screw, 1/4-20, 0.750 Price: $4.05 |
| 16 |
747-04161 |
SUPPORT ROD (LH) Not Available Price: |
| 17 |
747-04946 |
TANK SUPPORT ROD (LH) Not Available Price: |
| 18 |
735-04081 |
Rubber Grommet, 23.0 ID x 3.55 Price: $3.96 |
| 18 |
751-12118 |
ROLLOVER FUEL VALVE This part replaces 751-10441. Price: $31.61 |
| 18 |
951-04218 |
FUEL TANK ASSEMBLY Not Available This part replaces 651-04218. Price: |
| 18 |
951-10573 |
FUEL TANK 2.75 GAL Price: $177.56 |
| 18 |
951-12427 |
FUEL CAP W/HOOP SEALED This part replaces 951-10587. Price: $30.99 |
| 24 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 25 |
710-0607 |
Screw, 5/16-18 x 0.500 Price: $6.06 |
| 26 |
710-1017 |
Screw, 1/4-14 x.625 Price: $7.26 |
| 27 |
710-1611B |
Screw, 5/16-18 x.75 Price: $5.94 |
| 28 |
731-04728 |
BRAKE LEVER Not Available Price: |
| 29 |
731-04729 |
CUISE LEVER Not Available Price: |
| 30 |
731-06166 |
DASH PANEL TROY W/MAN PTO Not Available Price: |
| 32 |
747-1196 |
Brake/Cruise Pivot Rod Price: $13.38 |
| 33 |
783-04285F-0637 |
DASH SUPPORT Not Available Price: |
| 34 |
783-04323F-0637 |
DASH SUPPORT Not Available Price: |
| 35 |
746-04364 |
Throttle/Choke Control Cable Price: $42.43 |
| 36 |
731-1999 |
Choke Plug Price: $8.98 |
| 37 |
925-0963 |
Headlamp, 12V Price: $6.73 |
| 38 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 39 |
925-04156 |
Systems Ind. Monitor w/ Amtr. Price: $25.99 |
| 40 |
925-1745A |
Ignition Key w/ plastic cover Price: $15.91 |
| 41 |
731-05241A |
Switch Housing Price: $19.12 |
| 42 |
925-04659 |
Module, Ignition Switch (3 position) Price: $38.76 |
