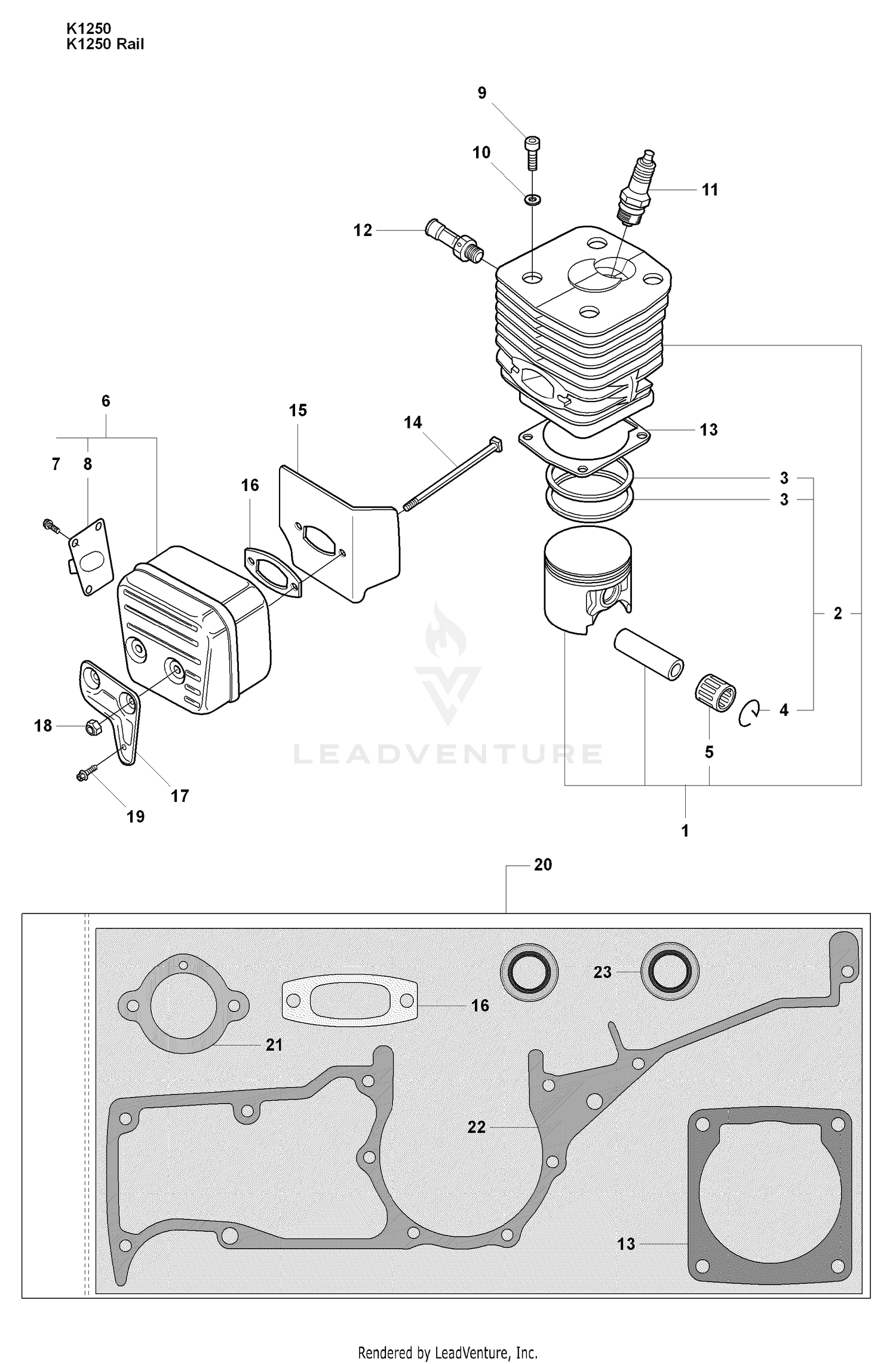

Cylinder and Muffler
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 44-8080 | BODY Price: $238.51 |
| 2 | 42-8670 | FLANGE Price: $50.47 |
| 3 | 42-9680 | WASHER Price: $5.00 |
| 3 | 503289026 | PISTON RING Price: $22.99 |
| 4 | 51-7500 | SPRING Price: $13.86 |
| 4 | 737441300 | CLIP Price: $1.99 |
| 5 | 503132901 | SUPPORT BUSHING Price: $9.99 |
| 5 | 93-3181 | PIN - PRESSURE Price: $8.31 |
| 6 | 51-7520 | PIECE Price: $20.10 |
| 7 | 42-8680 | NOZZLE ASM Price: $161.01 |
| 7 | 729534001 | SCREW RXS B8X9.5 Price: $2.99 |
| 8 | 506274901 | EXHAUST DUCT Price: $14.16 |
| 9 | 503216025 | SCREW Price: $3.99 |
| 10 | 503230005 | WASHER 6.5X11 Price: $2.99 |
| 12 | 503665601 | VALVE Price: $24.99 |
| 14 | 503216401 | BOLT Price: $11.99 |
| 15 | 506341401 | PLATE Price: $11.99 |
| 17 | 506278701 | BRACKET Price: $12.99 |
| 18 | 503222007 | LOCK NUT Price: $3.99 |
| 19 | 725536855 | SCREW MC6S 6X16 Price: $4.99 |
| 20 | 506292404 | GASKET KIT K1260 This part replaces 506292402. Price: $9.99 |
| 21 | 579851101 | GASKET K1270 This part replaces 506274301. Price: $3.99 |
| 22 | 503134501 | CRANKCASE GASKET Price: $4.99 |
