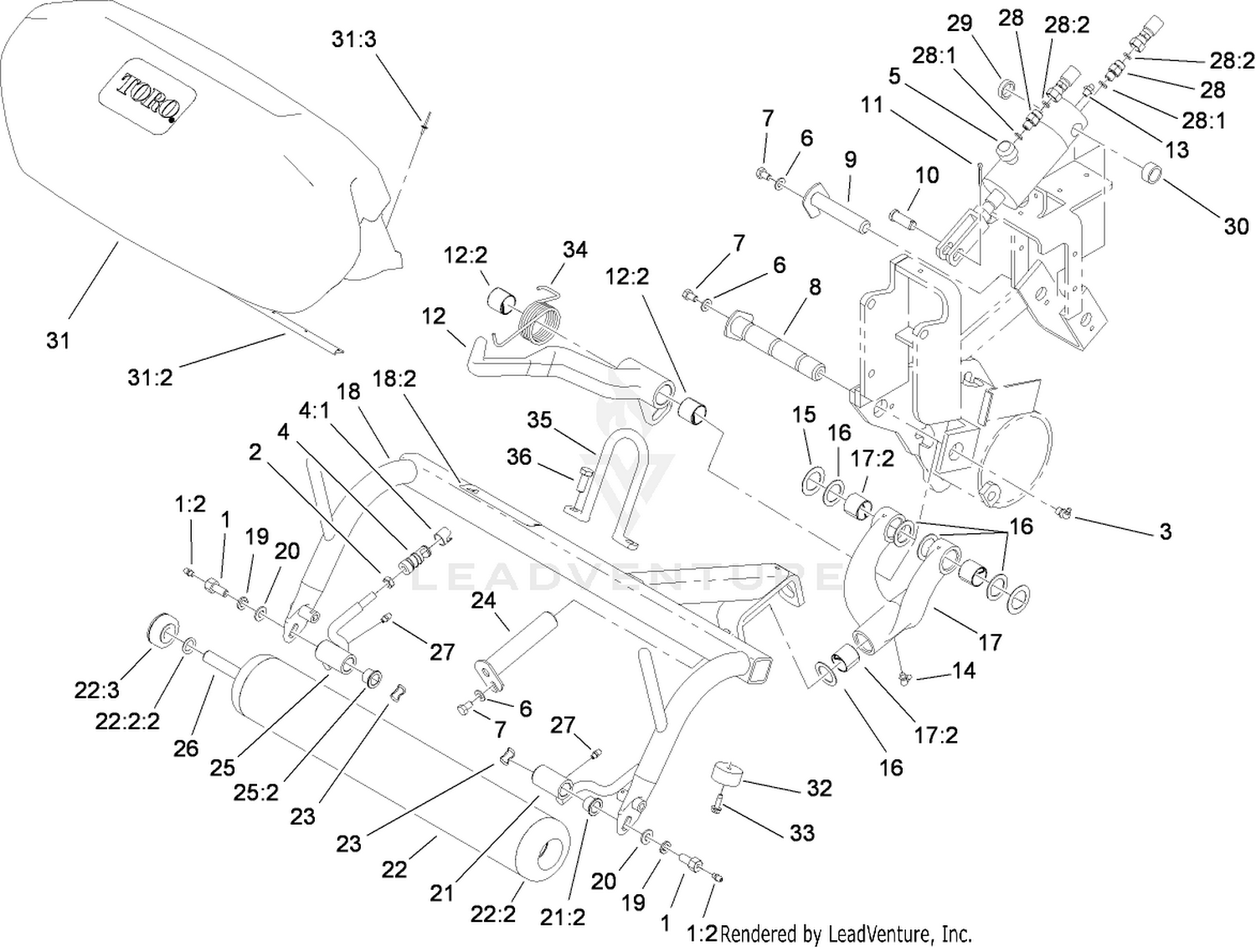

| Ref | Part Number | Description |
|---|
| 1 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 5 |
145-4593 |
HYD CYLINDER SERVICE KIT This part replaces 106-9066. Price: $633.52 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
322-1 |
SCREW-HH Price: $0.22 |
| 8 |
140-6493 |
PIN-HINGE, SHORT This part replaces 114-4683. Price: $42.76 |
| 9 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 10 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
107-2599 |
RH LIFT ARM ASM Price: $139.43 |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 15 |
5-1226 |
WASHER Price: $3.90 |
| 16 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 17 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 18 |
136-8483 |
FRAME-PULL, RH This part replaces 112-0282. Price: $382.66 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 22 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 23 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 24 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 25 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 26 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 29 |
105-3828 |
SPACER Price: $5.10 |
| 30 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 31 |
108-8642 |
GRASS BASKET ASM Price: $267.16 |
| 32 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 33 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 34 |
110-3951 |
SPRING-TORSION, RH Price: $9.40 |
| 35 |
105-5740 |
HOOK-LIFT Price: $13.14 |
