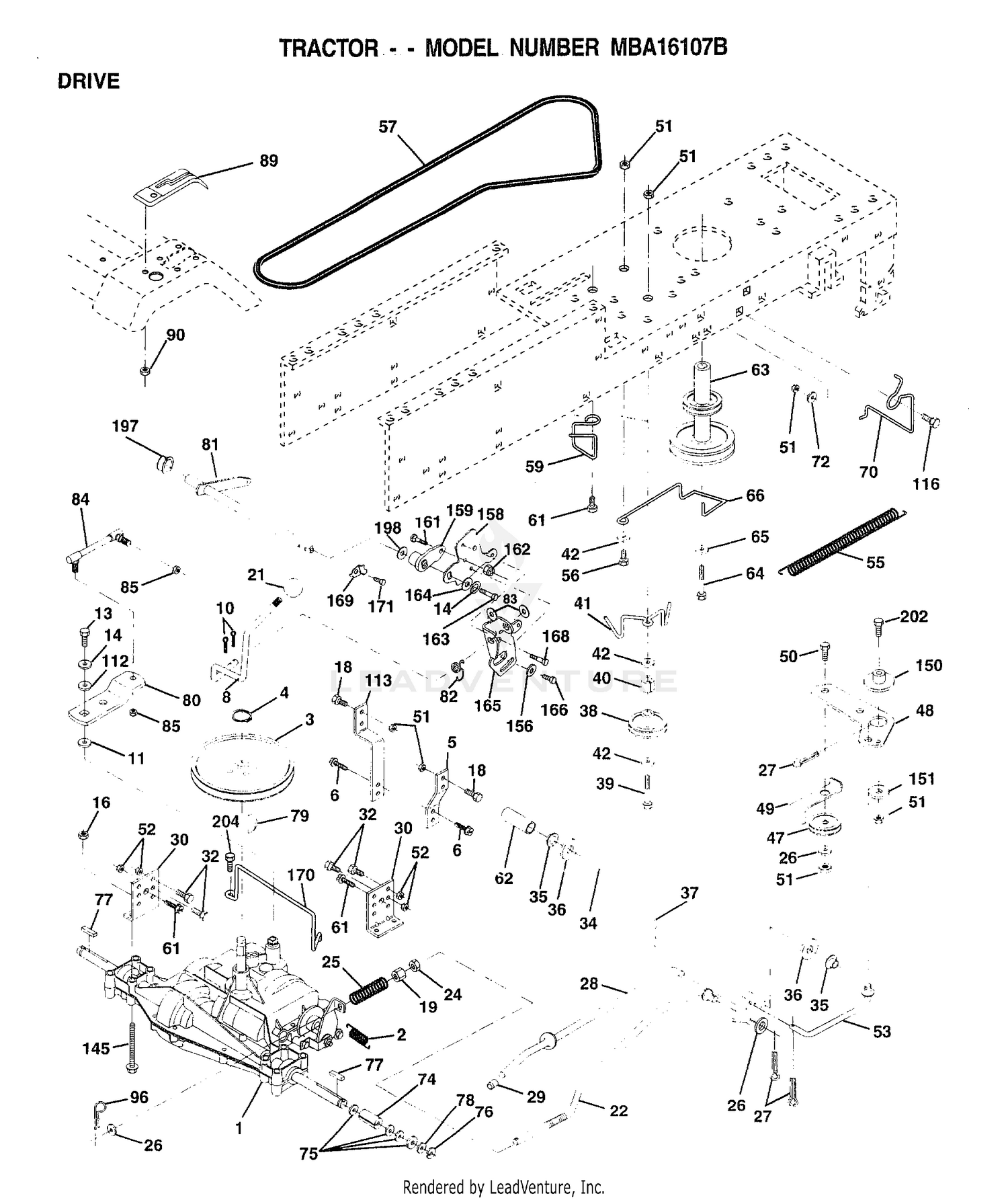

| Ref | Part Number | Description |
|---|
| 1 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
17060512 |
SCREW Price: Call Us |
| 8 |
165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: Call Us |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 10 |
98-7531 |
HOOK-ENGINE Price: $7.56 |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 16 |
73800500 |
NUT Price: Call Us |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
100-9195 |
BOLT Price: $0.72 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
108-6573 |
GASKET-HEAD, CYLINDER Price: $208.72 |
| 30 |
169592 |
BRACKET MTG TRANSAXLE Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 39 |
72110622 |
BOLT Price: Call Us |
| 40 |
115-3445 |
CYLINDER HEAD ASM This part replaces 108-6574. Price: $2,632.61 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154407 |
BELLCRANK.CLUTCH Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
105-3705 |
CAP-SEALING This part replaces 98-9395. Price: $6.44 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
169691 |
KEEPER BELT SPAN CTR Price: Call Us |
| 60 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 61 |
17060612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 70 |
107-9066 |
GUIDE-VALVE, INLET Price: $12.65 |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
137057 |
SPACER AXLE Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 80 |
107-9067 |
GUIDE-VALVE, EXHAUST Price: $13.17 |
| 81 |
165592 |
SHAFT.ASM.CROSS Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
166231 |
LINK.TRANSAXLE.PMST/DANA Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 89 |
169372X428 |
CONSOLE SHIFT Price: Call Us |
| 90 |
124346X |
NUT Price: Call Us |
| 90 |
98-9389 |
CAP-SEALING Price: $5.22 |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 100 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 110 |
98-9647 |
BOLT-HEAD, CYLINDER Price: $15.60 |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 145 |
74490540 |
BOLT.HEX.FLGHD Price: Call Us |
| 150 |
165850 |
BUSHING.BELLCRANK.GRD.DR Price: Call Us |
| 151 |
19133210 |
WASHER Price: Call Us |
| 156 |
166002 |
WASHER.SRRTD.5/16 Price: Call Us |
| 158 |
165589 |
BRKT.SHIFT.MOUNT Price: Call Us |
| 159 |
165494 |
HUB.SHIFT Price: Call Us |
| 161 |
72140406 |
BOLT T Price: Call Us |
| 162 |
73680400 |
SUB= 73690400 Price: Call Us |
| 163 |
74780416 |
NLA Price: Call Us |
| 164 |
19091010 |
WASHER.5/8X.281X10GA Price: Call Us |
| 165 |
165623 |
BRKT.PIVOT.LEVER Price: Call Us |
| 166 |
166880 |
SCREW.5/16-18X5/8 Price: Call Us |
| 168 |
165492 |
BOLT.SHOULDER.5/16-18X.561 Price: Call Us |
| 169 |
165581 |
PLATE.FASTENING Price: Call Us |
| 170 |
165849 |
KEEPER.BELT.TRANSAXLE Price: Call Us |
| 171 |
17490608 |
SCREW LT Price: Call Us |
| 197 |
169613 |
NYLINER SNAP-IN Price: Call Us |
| 198 |
169593 |
WASHER NYLINER Price: Call Us |
| 202 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
