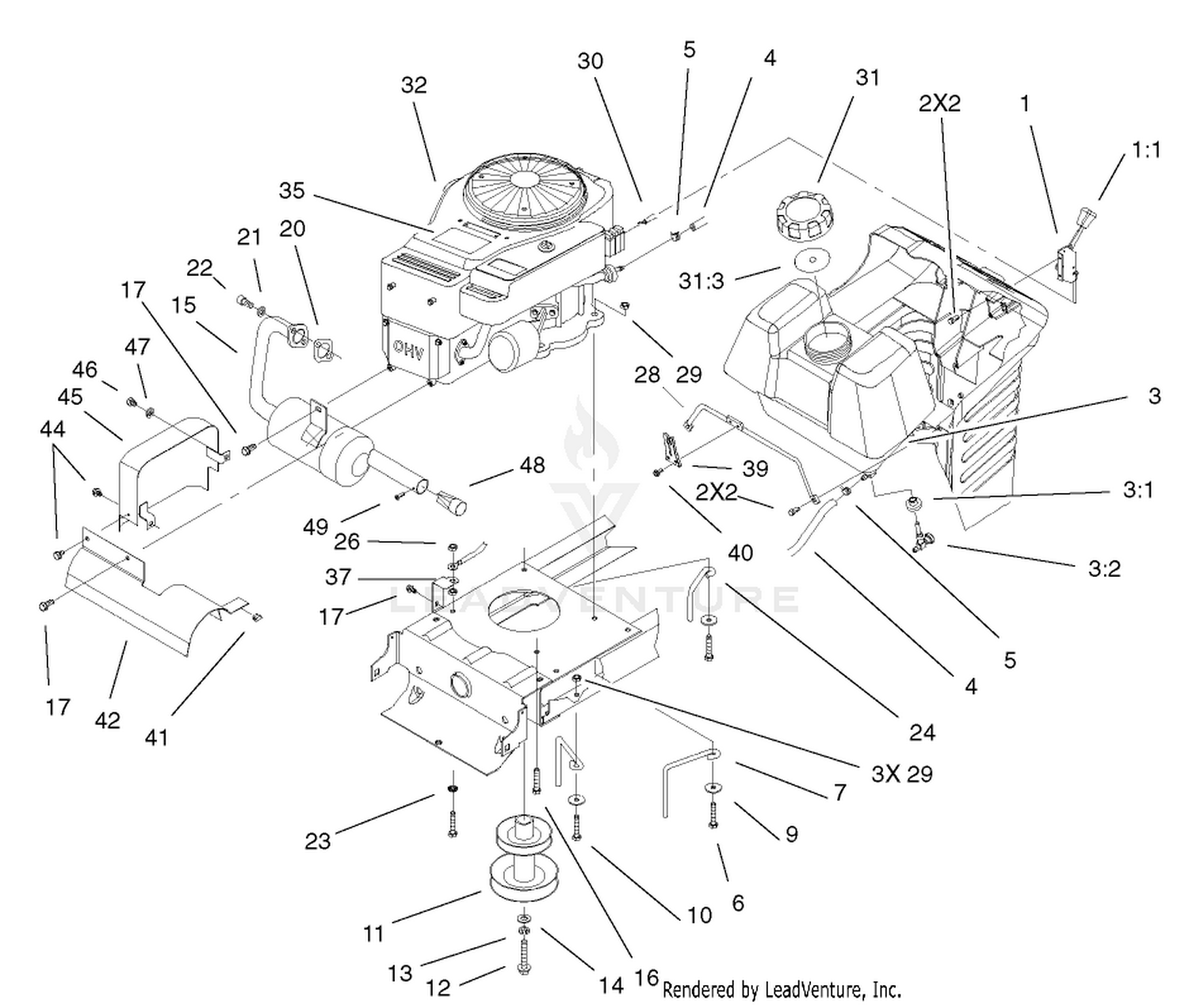

| Ref | Part Number | Description |
|---|
| 1 |
88-4340 |
THROTTLE CONTROL ASM Price: $23.82 |
| 2 |
27-0220 |
SCREW-SPECIAL Price: $7.09 |
| 3 |
88-3880 |
GAS TANK ASM Price: $128.09 |
| 4 |
107-9297 |
HOSE-FUEL This part replaces 47-2963. Price: $7.29 |
| 5 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 6 |
322-9 |
SCREW-HH Price: $3.09 |
| 7 |
93-3854 |
GUIDE-BELT, ENGINE Price: $8.66 |
| 9 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 10 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 11 |
100-7414 |
DISCONTINUED Price: Call Us |
| 12 |
62-3760 |
SCREW-HH Price: $6.33 |
| 13 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 15 |
99-6845 |
MUFFLER-EXHAUST Price: $270.01 |
| 16 |
9267154 |
SCREW-HWH, TAPTITE Price: $2.18 |
| 17 |
9266714 |
SCREW-HWH Price: $0.80 |
| 20 |
88-4410 |
GASKET-EXHAUST Price: $10.68 |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 23 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 24 |
93-3855 |
GUIDE-BELT, RH Price: $12.99 |
| 26 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 28 |
94-1952 |
ROD-TANK, GAS Price: $22.68 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
88-4350 |
THROTTLE CABLE ASM Price: $16.68 |
| 31 |
88-3980 |
GAS CAP ASM Price: $31.99 |
| 35 |
105-2468 |
DISCONTINUED Price: Call Us |
| 37 |
93-3809 |
BRACKET-GROUND Price: $5.65 |
| 39 |
94-1951 |
LATCH-HOOD Price: $4.81 |
| 40 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 41 |
93-3882 |
CLIP-TINNERMAN Price: $2.14 |
| 42 |
93-3880-03 |
DISCONTINUED Price: Call Us |
| 44 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 45 |
93-8450-03 |
HEAT SHIELD ASM Price: $66.42 |
| 46 |
322-3 |
SCREW-HH Price: $0.79 |
| 47 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 48 |
93-9911 |
SCREEN-SILENCER, EXHAUST Price: $29.07 |
