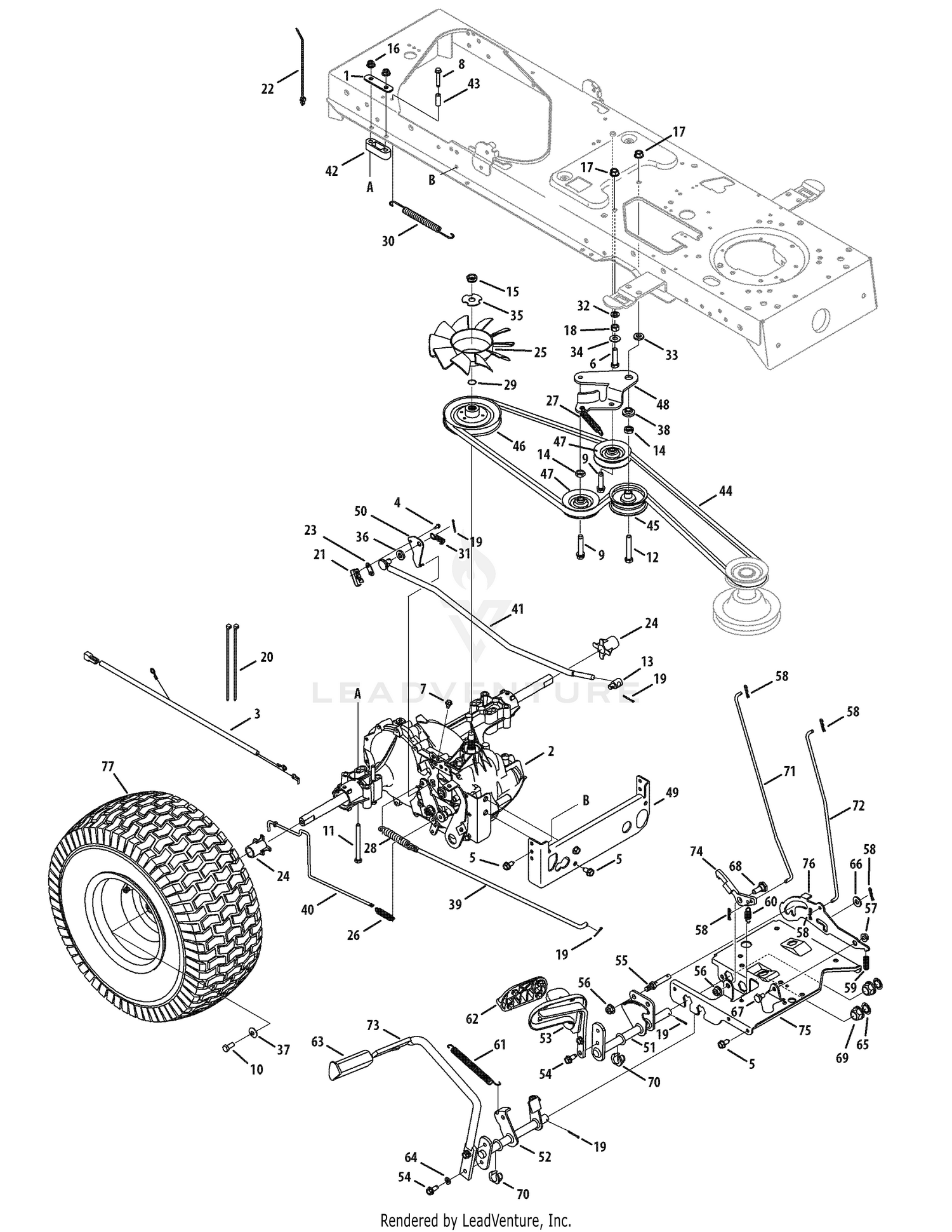

| Ref | Part Number | Description |
|---|
| 1 |
17840-0637 |
Transaxle Mounting Bracket Price: $10.12 |
| 2 |
918-0319 |
TRANSMISSION ASSEMBLY Not Available Price: |
| 3 |
629-0949B |
Hydro Ground Harness Assembly Not Available Price: |
| 4 |
710-0227 |
Screw, #8-18 x 0.500 Price: $3.90 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0520 |
Hex Head Screw, 3/8-16 x 1.50 Gr5 Price: $3.93 |
| 7 |
710-0653 |
Self-Tap Screw, 1/4-20 x 0.375 Price: $3.78 |
| 8 |
710-0778 |
Self-Tap Screw, 1/4-20 x 1.500 Price: $3.90 |
| 9 |
710-1007 |
Sems Self-Tap Screw, 3/8-16 x 1.500 Price: $5.71 |
| 10 |
710-0627 |
Hex Head Screw, 5/16-24, .750 x Gr5 Price: $3.68 |
| 11 |
710-1266 |
Hex Head Screw, 5/16-18 x 3.50 Gr5 Price: $8.66 |
| 12 |
710-3011 |
Hex Head Screw, 3/8-16 x 2.25 Price: $6.49 |
| 13 |
911-0832 |
Ferrule, 3/8-24 x .375 Price: $13.68 |
| 14 |
912-0240 |
Jam Nut, 7/16-20 Price: $3.90 |
| 15 |
712-0346 |
Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 16 |
712-04063 |
Flange Lock Nut, 5/16-18 Grf Price: $3.56 |
| 17 |
912-0431 |
Flange Lock Nut, 3/8-16 Grf Price: $4.29 |
| 18 |
912-3017 |
Hex Nut, 3/8-16 Gr5 Price: $3.90 |
| 19 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 20 |
725-0157 |
Cable Tie, 3/16 X .05 X 7.4 Price: $3.46 |
| 21 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 22 |
926-0154 |
Push Mount Cable Tie, 7.5 Lg Price: $5.50 |
| 23 |
926-0320 |
Insulator Plate Nut Price: $6.01 |
| 24 |
731-05299A |
Sleeve, .765 Id x 1.500 This part replaces 731-05299. Price: $3.66 |
| 25 |
731-06098 |
LT Hydro Fan Price: $17.02 |
| 26 |
932-0209 |
Extension Spring, .48 Od X 2.03 Price: $7.01 |
| 27 |
732-04323B |
Extension Spring, .770 X 3.720 Lg Price: $11.23 |
| 28 |
732-0716D |
Extension Spring, .59 Od X 4.00 Lg Price: $11.49 |
| 29 |
732-0729 |
Wire Ring Price: $4.20 |
| 30 |
732-0994 |
Extension Spring, .500 Dia X 7.0 Lg Price: $9.52 |
| 31 |
732-3118 |
Extension Spring, 3/8 Od X 1.44 Lg Price: $8.78 |
| 32 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 33 |
736-0258 |
Flat Washer, .385 X 1.0 X .135 Price: $3.93 |
| 34 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 35 |
736-04263 |
Lock Washer, Hydro Trans. Price: $5.94 |
| 36 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 37 |
736-0242 |
Belleville Washer, .340 X .872 X .060 Price: $3.75 |
| 38 |
738-0372B |
Shoulder Spacer, 1.00 X .38 X .38 Price: $8.78 |
| 39 |
747-04139 |
Hydro Brake Rod Price: $21.28 |
| 40 |
747-1149 |
Hydro Bypass Rod Price: $21.94 |
| 41 |
747-1151 |
CONTROL ROD Not Available Price: |
| 42 |
948-0334 |
Spacer, T-Axle .68 Price: $9.87 |
| 43 |
750-0566A |
Spacer, .260 X .372 X 1.030 Lg Price: $9.17 |
| 44 |
954-04165 |
V-Belt, 4l X 78 Lg Poly Price: $49.99 |
| 45 |
756-04224 |
Flat Idler Pulley, 2.75 Od Price: $24.80 |
| 46 |
756-04308 |
Input Pulley, 4.13 Dia Price: $27.39 |
| 47 |
756-04325 |
Idler Pulley, V-Type X 3.06 Price: $22.60 |
| 48 |
783-04442-0637 |
Center Double Idler Bracket Price: $31.46 |
| 49 |
783-0810B-0637 |
TRANSMISSION TORQUE BRACKET Not Available Price: |
| 50 |
783-1019B |
SWITCH BRACKET Not Available Price: |
| 51 |
647-0049A-0637 |
HYDRO CONTROL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 52 |
647-04100-0637 |
BRAKE CONTROL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 53 |
683-0267C |
CONTROL PEDAL ASSEMBLY Not Available Price: |
| 54 |
710-1260A |
Self-tap Screw, 5/16-18 x 0.750 Price: $3.34 |
| 55 |
711-04159B |
Pin, 3/8-16 X 2.68lg Price: $6.75 |
| 56 |
712-04065 |
Flange Lock Nut, 3/8-16 Grf Price: $3.68 |
| 57 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 58 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 59 |
732-0335 |
SPRING Not Available Price: |
| 60 |
732-0955 |
Extension Spring, .50 Od X 1.41 Lg Price: $8.34 |
| 61 |
732-0963 |
Extension Spring, .50 Dia X 6.37 Lg Price: $8.91 |
| 62 |
735-0662 |
Drive Pedal Pad Price: $10.46 |
| 63 |
735-3049A |
Brake Control Pad Price: $11.30 |
| 64 |
936-0119 |
Lock Washer, 5/16, Regular Duty Price: $4.29 |
| 65 |
736-0187 |
Flat Washer, .64 X 1.24 X .06 Price: $4.02 |
| 66 |
736-0262 |
Flat Washer, .385 X .870 X .092 Price: $3.66 |
| 67 |
938-0155 |
Shoulder Bolt, .435 X .160, 5/16-18 Price: $6.01 |
| 68 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 69 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 70 |
741-3065B |
Hex Flange Bearing Price: $7.45 |
| 71 |
747-04093A |
LOCK CONTROL BRAKE ROD Not Available Price: |
| 72 |
747-04096 |
CRUISE CONTROL ROD Not Available Price: |
| 73 |
747-04641A-0637 |
BRAKE PEDAL (POWDER BLACK) Not Available Price: |
| 74 |
748-04039C |
CRUISE LATCH Not Available Price: |
| 75 |
783-04612-0637 |
Steering Support Bracket Price: $78.74 |
| 76 |
783-0663E |
LOCKOUT BRACKET Not Available Price: |
