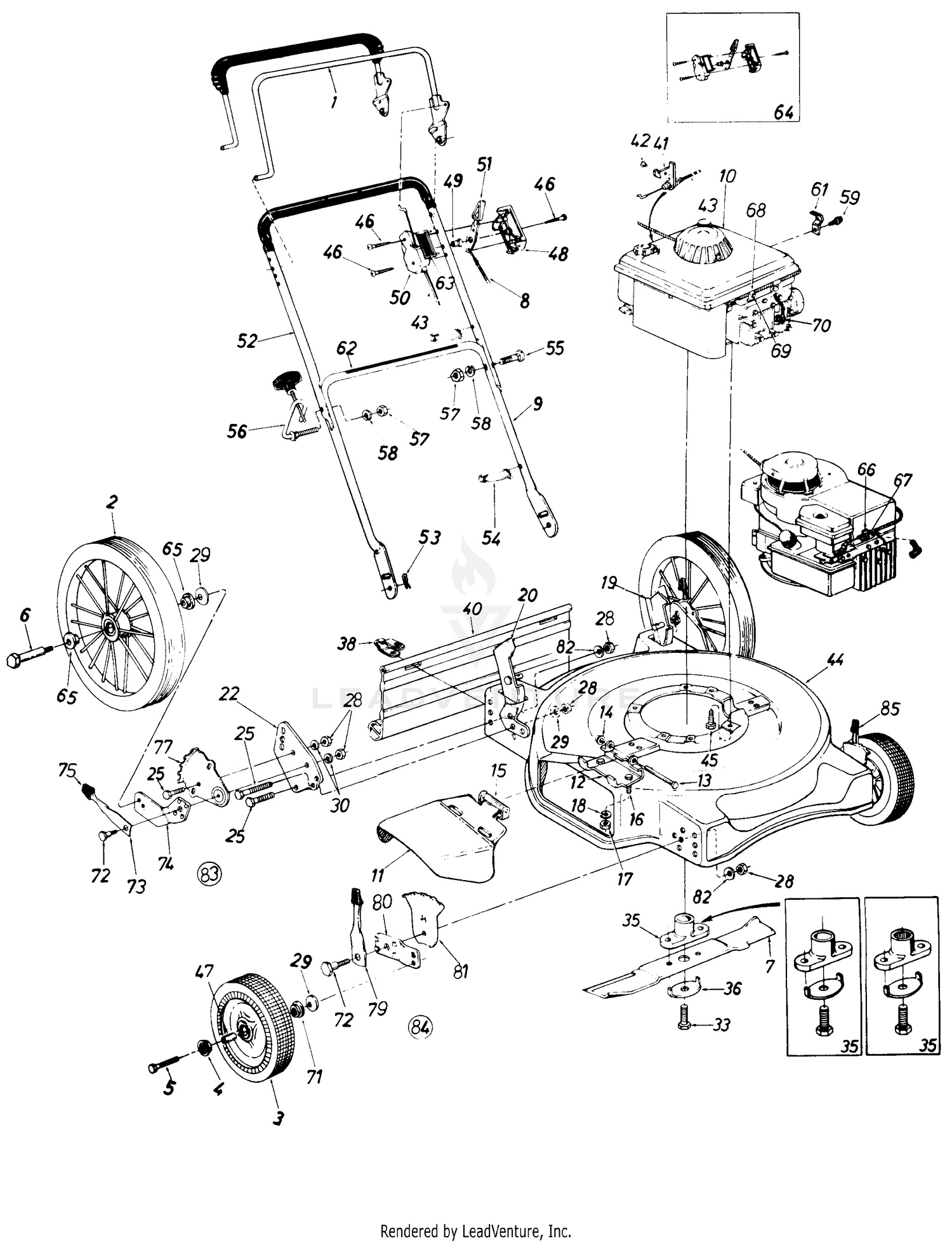

| Ref | Part Number | Description |
|---|
| 2 |
734-0244 |
WHEEL ASSEMBLY W/TIRE Not Available Price: |
| 3 |
734-1259 |
WHEEL ASSEMBLY Not Available Price: |
| 4 |
941-0484 |
BALL BEARING This part replaces 741-0484. Price: $6.87 |
| 5 |
710-1020 |
SCREW 3/8-16X1.875 GR2 Not Available Price: |
| 6 |
938-0481A |
Shoulder Screw This part replaces 738-0481. Price: $6.30 |
| 9 |
749-0928A-0637 |
Lower Handle This part replaces 749-0373. Price: $29.67 |
| 10 |
N/A |
Engine |
| 11 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 14944. Price: |
| 12 |
11130 |
ADAPTER PLATE Not Available Price: |
| 13 |
711-0555 |
PIVOT PIN Not Available Price: |
| 14 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 15 |
732-0253 |
TORSION SPRING Not Available Price: |
| 16 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 17 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 18 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 19 |
17189 |
BRACKET ASSEMBLY-H Not Available Price: |
| 20 |
17188 |
BRACKET ASSY-HDLE-RH Not Available Price: |
| 22 |
16645 |
MOUNTING PLATE Not Available Price: |
| 25 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 28 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 29 |
736-0105 |
Bell-Wash. .400" I.D. x .881" Price: $3.96 |
| 30 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 35 |
753-0485 |
SPLINED BLADE ADAPTER KIT Not Available This part replaces 753-0463. Price: |
| 36 |
753-0525 |
KIT-BLADE MOUNTING Not Available This part replaces 736-0415. Price: |
| 38 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 40 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872. Price: |
| 44 |
97046 |
DECK ASSEMBLY-22IN Not Available This part replaces 17046. Price: |
| 45 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 46 |
710-0796 |
Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg. Price: $4.75 |
| 47 |
750-0434 |
Spacer Price: $6.01 |
| 48 |
731-0817 |
PANEL Not Available Price: |
| 49 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 50 |
731-0816 |
CIUTCH PANEL HALF Not Available Price: |
| 52 |
749-0754 |
UPPER HANDLE Not Available Price: |
| 53 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 54 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 55 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 56 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 57 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 58 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 62 |
777-5776 |
LABEL Price: Call Us |
| 63 |
777-5774 |
Control Label-Throttle Price: Call Us |
| 64 |
753-0430 |
CONTROL HOUSING COMP. Not Available Price: |
| 65 |
748-0147 |
FLANGE BEARING Not Available Price: |
| 70 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 71 |
741-0267 |
FORTIFLEX BEARING Not Available Price: |
| 72 |
738-0507B |
Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86 |
| 73 |
732-0417A |
SPRING LEVER Not Available This part replaces 732-0417. Price: |
| 74 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 75 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 77 |
14764C |
Index Plate Not Available This part replaces 14764. Price: |
| 79 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 80 |
15262B |
Pivot Bar This part replaces 15262. Price: $13.59 |
| 81 |
787-01290A |
Height Adjustment Plate This part replaces 15261. Price: $10.58 |
| 82 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 83 |
16106 |
ADJUSTER-H Not Available Price: |
| 84 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
