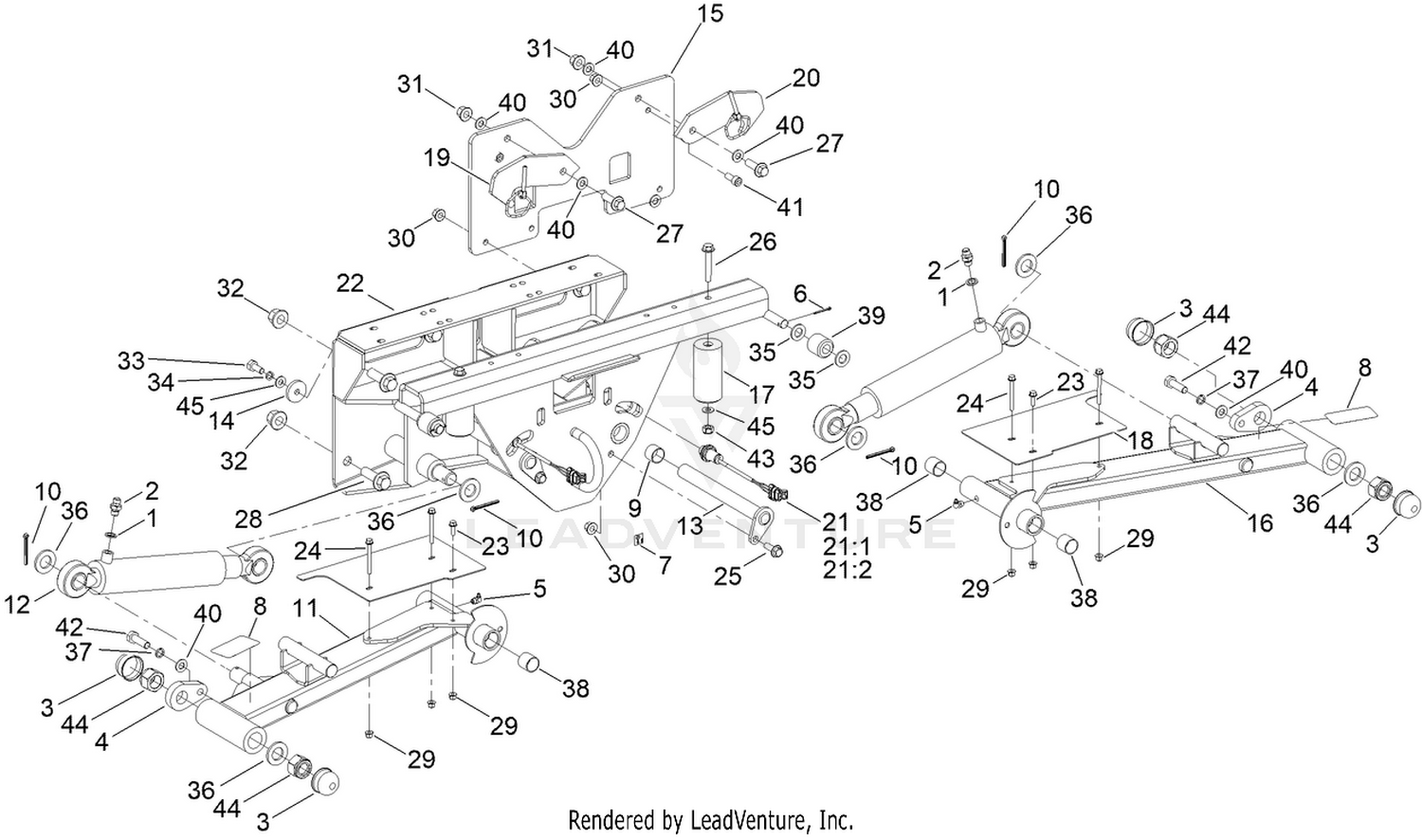

| Ref | Part Number | Description |
|---|
| 3 |
10-11-100 |
NUT CAP M24 Price: $1.97 |
| 4 |
63-01-185W |
RETAINER Price: $48.24 |
| 5 |
63-07-027 |
GREASE NIPPLE 1/8BSP 9OD Price: $1.55 |
| 6 |
70-11-005 |
SPLIT PIN 3 DIA*30 Price: $1.42 |
| 7 |
93-9084 |
DECAL-POINT, LIFT Price: $6.68 |
| 8 |
134-5122 |
DECAL-DANGER, LATCH Price: $3.07 |
| 9 |
74-07-028 |
BUSH DEVOL 28DIAX25X20 Price: $8.10 |
| 10 |
74-11-003 |
SPLIT PIN 5 DIA X 50 Price: $1.39 |
| 11 |
111-1390-03 |
ARM FRONT RH W/A Price: $532.85 |
| 12 |
111-1998 |
LIFT CYLINDER Price: $277.04 |
| 13 |
111-3248 |
FRONT ARM PIVOT PIN W/A Price: $43.54 |
| 14 |
111-3366 |
PLATE BUSH RETAINING Price: $4.57 |
| 15 |
134-5130-03 |
PLATE-LATCH [BLACK] Price: $71.27 |
| 16 |
111-4100-03 |
ARM FRONT LH W/A Price: $550.88 |
| 17 |
111-4157 |
BUMP STOP - 105 Price: $46.83 |
| 18 |
111-6822-03 |
DEFLECTOR-ARM, MOUNTED Price: $9.67 |
| 19 |
111-7921-01 |
PLATE-LATCH, RH Price: $35.93 |
| 20 |
111-7922-01 |
PLATE-LATCH, LH Price: $35.93 |
| 21 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 22 |
134-2755-03 |
FRONT ARM PIVOT WELDED ASSY Price: $1,027.72 |
| 23 |
134-3740 |
SCREW-HHF Price: $0.16 |
| 24 |
134-3745 |
SCREW-HHF Price: Call Us |
| 25 |
134-3753 |
SCREW-HHF Price: $0.43 |
| 26 |
134-3754 |
SCREW-HHF Price: Call Us |
| 27 |
63-11-010 |
HEX HD.BOLT M12*40HT/10.9 Price: $6.59 |
| 28 |
134-3760 |
SCREW-HHF Price: $4.27 |
| 29 |
134-3761 |
NUT-FLANGE, NI Price: $0.37 |
| 30 |
134-3763 |
NUT-FLANGE, NI Price: $0.64 |
| 31 |
09650 |
NUT Price: $1.40 |
| 32 |
134-3765 |
NUT-FLANGE, NI Price: $1.27 |
| 33 |
09395 |
SETSCREW M10 X 25 ZN & PASS Price: $1.40 |
| 34 |
09480 |
WASHER M10 SC SPRING Price: $1.36 |
| 35 |
09491 |
WASHER M16 PLAIN Price: $1.42 |
| 36 |
09555 |
WASHER M24 PLAIN Price: $1.31 |
| 37 |
09599 |
WASHER Price: $1.42 |
| 38 |
876066 |
BUSH Price: $8.34 |
| 39 |
922112 |
Roller Price: $33.24 |
| 40 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 41 |
ZCS1J025U |
SCREW SOC HD CAP M10*25 Price: $1.31 |
| 42 |
ZDH1L040U |
HEX.HD.SET SCW M12*40 Price: $1.31 |
| 43 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
| 44 |
ZNN1X000U |
HEX.NUT M24 NYLOC Price: $5.40 |
