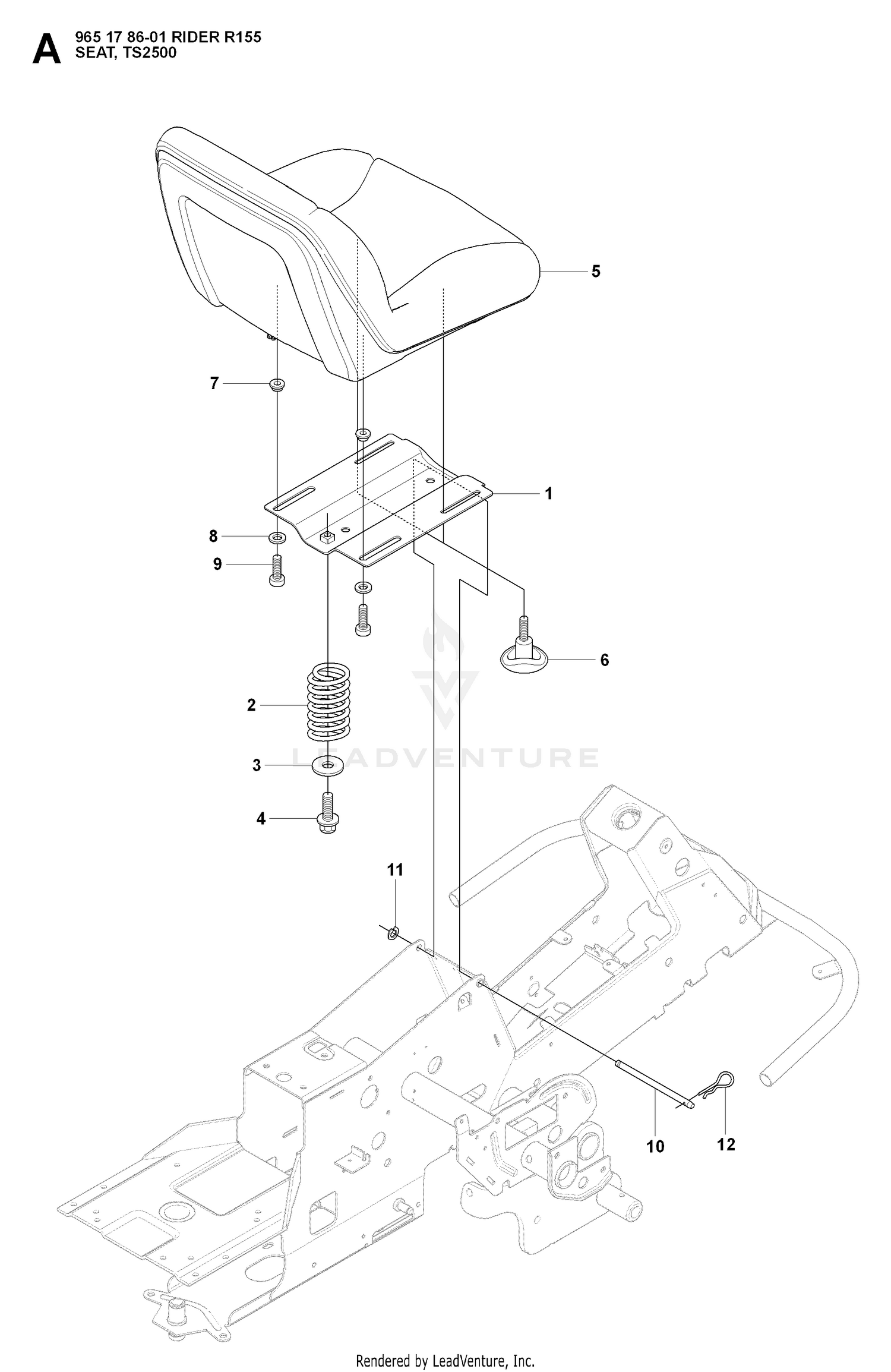

| Ref | Part Number | Description |
|---|
| 1 |
544328503 |
SEAT BRACKET Price: $59.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
506915301 |
SEAT SPRING Price: $17.99 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
734117441 |
WASHER Price: $3.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
725249371 |
Screw M10x25 Price: $1.82 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 6 |
585065201 |
KNOB This part replaces 506565501. Price: $17.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 7 |
506565301 |
WASHER Price: $4.99 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 8 |
734116441 |
SPACER Price: $3.99 |
| 9 |
506556301 |
BOLT Price: $3.99 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 10 |
506509901 |
Shaft Price: $6.08 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
735311200 |
RETAINING RING SGA 10 Price: $2.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 12 |
506668801 |
PIN Price: $3.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
