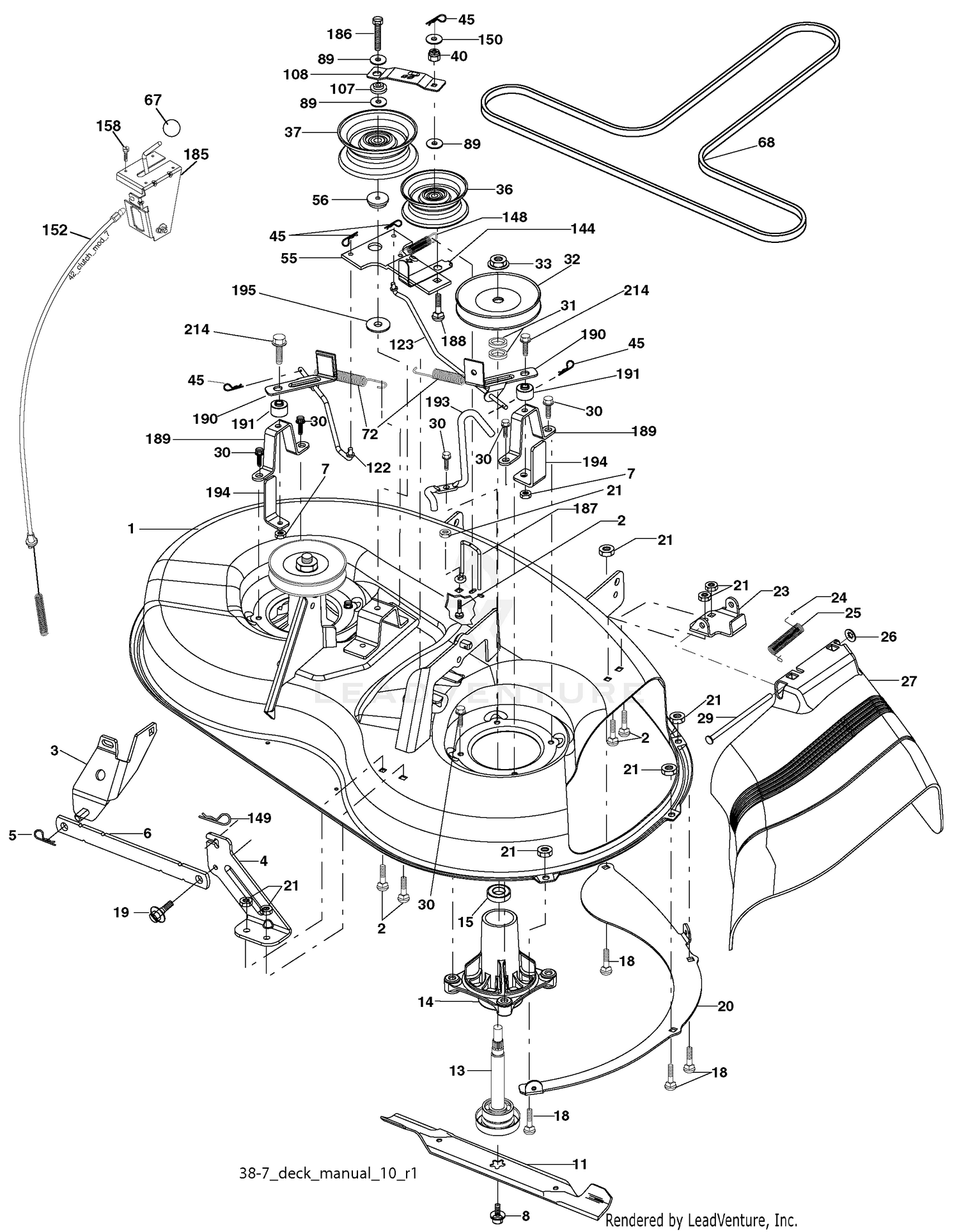

| Ref | Part Number | Description |
|---|
| 1 |
104-8334 |
PETCOCK Price: $47.85 |
| 1 |
192556 |
Mower Housing Assembly Price: Call Us |
| 2 |
104-0703 |
RESERVOIR-HYD Price: $858.44 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
93-5273 |
STRAP-FELT Price: $5.20 |
| 4 |
104-0794 |
STRAP Price: $65.42 |
| 4 |
192568 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 5 |
46-6560 |
BUSHING Price: $2.94 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 7 |
136-8531 |
GROMMET This part replaces 104-0790. Price: $3.62 |
| 7 |
73800500 |
Nut Lock 5/16-18 unc Price: Call Us |
| 8 |
193003 |
Bolt 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 8 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 9 |
104-0791 |
PIPE-STAND Price: $50.08 |
| 10 |
100-5522 |
HOSE ASM Price: $76.07 |
| 11 |
138497 |
Blade, 38" Hi-Lift (For bagging or discharge) Price: Call Us |
| 11 |
193957 |
Blade, 38", Mulching (For mulching or discharge) Price: Call Us |
| 11 |
61-2790 |
FILTER-SCREEN Price: $49.91 |
| 12 |
105-2812 |
DIPSTICK Price: $81.91 |
| 13 |
94-8166 |
O-RING Price: $3.76 |
| 14 |
187281 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
93-7498 |
PLUG-PLASTIC Price: $25.26 |
| 15 |
100-5528 |
HOSE-SUCTION Price: $76.15 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
104-7546 |
TANK STRAINER ASM Price: $170.48 |
| 17 |
354-79 |
CAP-DUST Price: $7.81 |
| 18 |
72140505 |
Blade Rdhd Sqnk 5/16-18 x 5/8 Price: Call Us |
| 18 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
323-5 |
SCREW-HH Price: $0.41 |
| 20 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 20 |
400095 |
Baffle Vortex Front Price: Call Us |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
104-3509 |
FITTING-HYD, 45 DEG Price: $72.04 |
| 23 |
100-5521 |
HOSE ASM Price: $132.70 |
| 23 |
192557 |
Bracket, Mower Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
340-109 |
FITTING-TEE Price: $59.90 |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
354-135 |
FITTING-HYD, 90 DEG Price: $25.07 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 27 |
110-6171 |
FILTER MANIFOLD ASM This part replaces 100-5558. Price: $1,404.96 |
| 27 |
192572X428 |
Shield, Deflector Price: Call Us |
| 28 |
92-7526 |
FITTING-HYD 90 SPCL Price: $119.68 |
| 29 |
104-0728 |
HOSE-FILTER Price: $41.30 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 30 |
3274-51 |
SCREW-HSH Price: $0.41 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 32 |
321-4 |
SCREW-HH Price: $0.99 |
| 33 |
2412-111 |
CLAMP Price: $4.39 |
| 33 |
400234 |
Nut, Toplock Price: Call Us |
| 34 |
100-5592 |
DISCONTINUED Price: Call Us |
| 35 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
193198 |
Pulley, Idler Flat Price: Call Us |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
193214 |
V-Belt Price: Call Us |
| 72 |
193216 |
Spring Brake Return Price: Call Us |
| 89 |
19131311 |
Washer 13/32 x 13/16 x 11 Ga. Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 122 |
410189 |
Rod, Brake LH Price: Call Us |
| 123 |
410190 |
Rod, Brake RH Price: Call Us |
| 144 |
193414 |
Keeper Belt Idler Tension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
193913 |
Clutch Cable 38" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 186 |
17490644 |
Screw Hex Wsh Thdrol 3/8-16 x 2-3/4 Price: Call Us |
| 187 |
193412 |
Keeper Belt M Shape Price: Call Us |
| 188 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 189 |
192559 |
Brake Stand Price: Call Us |
| 190 |
192560 |
Brake Arm Price: Call Us |
| 191 |
192561 |
Brake Spacer Price: Call Us |
| 193 |
193413 |
Keeper Belt Rh Mandrel Price: Call Us |
| 194 |
194105 |
Brake Guard Price: Call Us |
| 195 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 214 |
192558 |
Brake Assembly Price: Call Us |
| 214 |
193782 |
Bolt/Washer Asm. 5/16-18 Price: Call Us |
