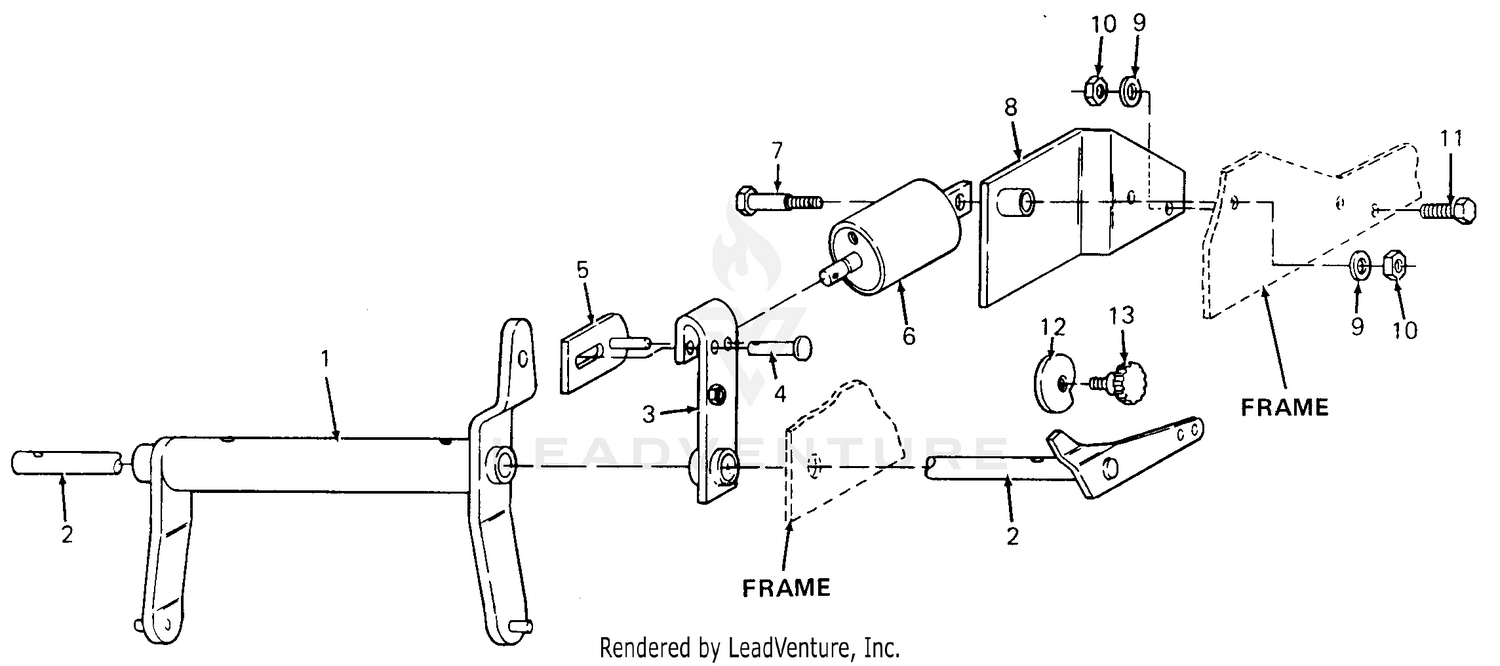

| Ref | Part Number | Description |
|---|
| 1 |
703-0837 |
Lift Assy, Rockshaft Price: Call Us |
| 1 |
76-5260 |
DISCONTINUED Price: Call Us |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $69.99 |
| 2 |
703-0853 |
ROCKSHAFT Not Available Price: |
| 2 |
94-3265 |
GLOW PLUG CABLE ASM Price: $26.36 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 3 |
703-0192 |
LIFT BRACKET ASSEMBLY Not Available Price: |
| 3 |
94-3264 |
PLUG-GLOW Price: $57.03 |
| 4 |
711-3030 |
CLEVIS PIN 1/2X2.1 Not Available Price: |
| 4 |
76-5290 |
WASHER-SPRING Price: $0.53 |
| 5 |
703-0176 |
PIN ASSEMBLY-LIFT Not Available Price: |
| 5 |
94-3266 |
NUT Price: $0.75 |
| 6 |
33003-00 |
NUT-HF This part replaces 94-3267. Price: $0.25 |
| 7 |
3255-7 |
WASHER-LOCK/EXT This part replaces 76-5310. Price: $1.39 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $7.99 |
| 7 |
738-3008 |
SHOULDER BOLT Not Available Price: |
| 8 |
48-7880 |
NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 8 |
703-0174 |
BRACKET ASSEMBLY-CYLINDER Not Available Price: |
| 9 |
736-3019 |
Washer, Flat, .531 X 1.06 X .134 Thk Price: $5.45 |
| 10 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 GR5 Price: $3.61 |
| 11 |
710-3032 |
Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5 Price: $5.66 |
| 12 |
703-0189 |
LIFT HANDLE Not Available Price: |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 116 |
594976501 |
Washers This part replaces 819151516. Price: $2.99 |
