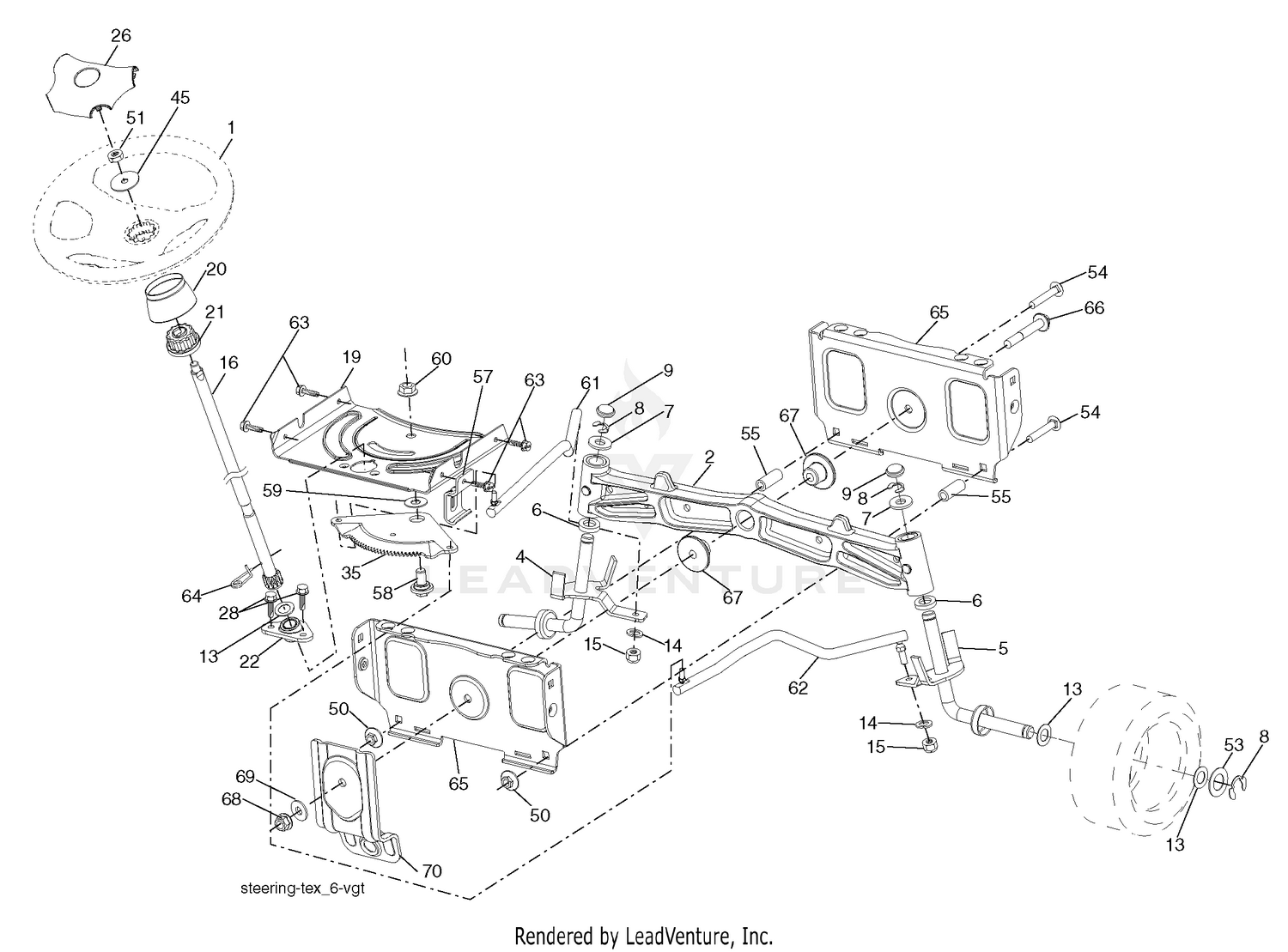

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 1 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 2 |
195968 |
Axle Asm., Front Price: Call Us |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 3 |
94-7068-03 |
STRAP-HOLD DOWN This part replaces 94-7068. Price: $29.98 |
| 4 |
194743 |
Spindle Asm., LH Price: Call Us |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
194744 |
Spindle Asm., RH Price: Call Us |
| 5 |
3217-6 |
NUT-HEX Price: $1.19 |
| 6 |
42652 |
FUEL LINE HOSE Price: $12.57 |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
2412-108 |
CLAMP-WORM This part replaces 97406. Price: $1.29 |
| 8 |
12000029 |
Ring, Klip #T5304-75 Price: Call Us |
| 8 |
9900 |
DISCONTINUED Price: Call Us |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 9 |
94-7013 |
DISCONTINUED Price: Call Us |
| 10 |
94-8537 |
TANK W/DECALS Price: $718.19 |
| 11 |
41117 |
FUEL CAP AND GAUGE ASM Price: $61.77 |
| 12 |
94-7116 |
HOSE Price: $138.62 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 14 |
41789 |
QUICK COUPLING - FEMALE Price: $91.72 |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 15 |
94-7070-03 |
DISCONTINUED This part replaces 94-7070. Price: Call Us |
| 16 |
194746 |
Shaft Steering Price: Call Us |
| 16 |
94-7189 |
DISCONTINUED Price: Call Us |
| 17 |
94485 |
CLAMP ASSY Price: $6.95 |
| 18 |
42623 |
PIPE-EXHAUST Price: $79.26 |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 19 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 20 |
199743X428 |
Boot, Steering Price: Call Us |
| 20 |
356303 |
WASHER Price: $13.44 |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 21 |
41912 |
HANGER-TAIL PIPE Price: $14.58 |
| 22 |
194845 |
Bushing, Strg. Blk Price: Call Us |
| 22 |
94-7069 |
TAIL PIPE Price: $283.06 |
| 23 |
42622 |
MUFFLER Price: $440.65 |
| 24 |
2412-108 |
CLAMP-WORM This part replaces 97406. Price: $1.29 |
| 25 |
108-3854 |
FILTER-FUEL This part replaces 41770. Price: $5.49 |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 26 |
94-7031 |
HOSE ASM Price: $116.48 |
| 27 |
94-7146 |
ADAPTER Price: $33.83 |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 28 |
94-7030 |
HOSE ASM Price: $84.35 |
| 29 |
93-6564 |
ADAPTOR Price: $9.49 |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 45 |
19113812 |
Washer 11/32 x 2-3/8 x 12 Ga. Price: Call Us |
| 50 |
73900600 |
Nut Lock 3/8-16 UNC Price: Call Us |
| 51 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex 3/8-16 UNC x 2-1/4 Price: Call Us |
| 55 |
197636 |
Spacer Brace Axle Price: Call Us |
| 57 |
197246 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd 7/16-14 x 3 Serr Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
