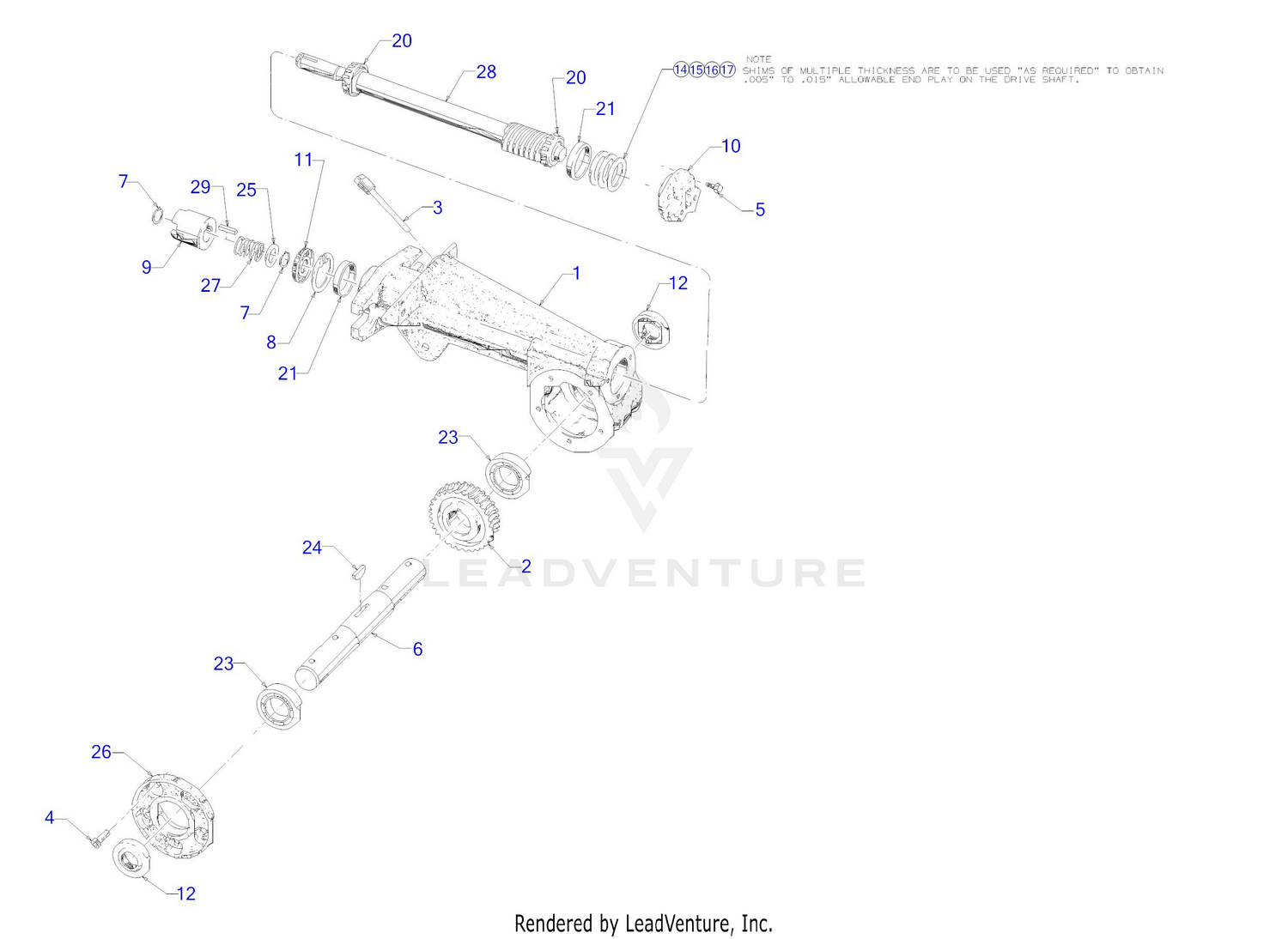

| Ref | Part Number | Description |
|---|
| 1 |
619-04127 |
USE 619-04127 HOUSING-TRANS M Price: $301.55 |
| 2 |
1901976 |
WORM GEAR Price: $146.85 |
| 3 |
1909157 |
ASSEMBLY-DIPSTICK HORSE Price: $16.46 |
| 4 |
1915068 |
SCREW-SELF SEALING Price: $3.86 |
| 5 |
1915069 |
SCREW-HFLK 1/4-20X.8 Price: $3.93 |
| 6 |
911-04082 |
TILLER TINE SHAFT Price: $101.65 |
| 7 |
716-0101 |
Retaining Ring-external This part replaces 916-0101. Price: $3.37 |
| 8 |
716-04102 |
RETAINING RING Price: $3.85 |
| 9 |
718-04614 |
PTO REAR ATTACH CLUTCH Price: $27.61 |
| 10 |
718-04406 |
REAR BEARING COVER Price: $44.01 |
| 11 |
921-04030 |
OIL SEAL .750 SHF x 1.783 Price: $11.33 |
| 12 |
921-04035 |
OIL SEAL .980 SHF x 1.750 Price: $10.91 |
| 14 |
736-04305 |
FLAT WASHER 1.500X1.750X.062 Price: $3.52 |
| 15 |
736-04306 |
FLAT WASHER 1.500X1.750X.005 Price: $3.85 |
| 16 |
736-04307 |
FLAT WASHER 1.500X1.750X.030 Price: $3.85 |
| 17 |
736-04308 |
FLAT WASHER 1.500X1.750X0.010 Price: $3.85 |
| 20 |
941-04298 |
BEARING CONE Price: $14.84 |
| 21 |
941-04299 |
BEARING CUP Price: $6.01 |
| 23 |
941-3037 |
PTO SHAFT BALL BEARING Price: $38.73 |
| 24 |
GW-1104 |
WOODRUFF KEY .25 x 1.12" Price: $8.32 |
| 25 |
736-04187 |
SHIM 1.0X.7656X Price: $4.36 |
| 26 |
GW-20873 |
COVER-TILLER HOUSING Price: $95.24 |
| 27 |
732-04022 |
COMPRESSION SPRING .766 ID x 1.50 TILR Price: $4.99 |
| 28 |
GW-11602 |
SHAFT KIT-TINE D Price: $265.94 |
