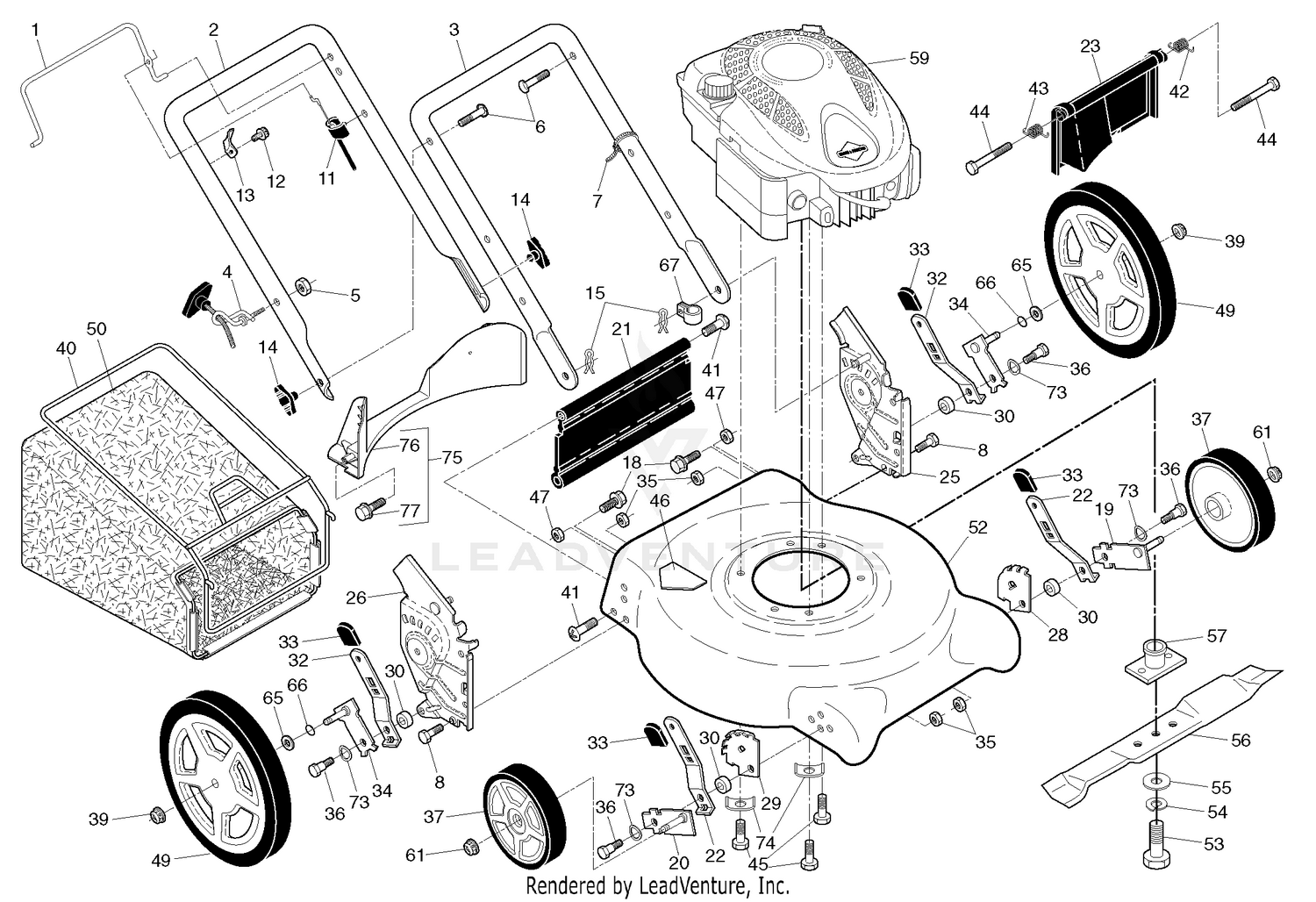

| Ref | Part Number | Description |
|---|
| 1 |
194177X421 |
Control Bar Price: Call Us |
| 2 |
194179X479 |
Upper Handle Price: Call Us |
| 3 |
169708X479 |
Lower Handle Price: Call Us |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 5 |
132004 |
Nut, Hex Price: Call Us |
| 6 |
191574 |
Handle Bolt Price: Call Us |
| 7 |
664-26 |
Wire Tie Price: Call Us |
| 8 |
74780512 |
Bolt, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 9 |
154132 |
Hinge Bracket Price: Call Us |
| 10 |
165754 |
Mulcher Door Price: Call Us |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 12 |
750634 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 13 |
429930X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
189713X428 |
Handle Knob Price: Call Us |
| 15 |
51793 |
Hairpin Cotter Price: Call Us |
| 18 |
17600406 |
Screw Price: Call Us |
| 19 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 20 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 21 |
418655 |
Kit, Rear Skirt Price: Call Us |
| 22 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 23 |
401814X428 |
Rear Door Assembly Price: Call Us |
| 25 |
410385X479 |
Handle Bracket, LH Price: Call Us |
| 26 |
410386X479 |
Handle Bracket, RH Price: Call Us |
| 28 |
407499X005 |
Wheel Adjusting Bracket, Front, LH Price: Call Us |
| 29 |
407500X005 |
Wheel Adjusting Bracket, Front, RH Price: Call Us |
| 30 |
401629 |
Spacer Price: Call Us |
| 31 |
165760 |
Discharge Deflector Price: Call Us |
| 32 |
401624X004 |
Selector Spring, Rear Price: Call Us |
| 33 |
170143 |
Selector Knob Price: Call Us |
| 34 |
401176X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 35 |
426589 |
Locknut, Hex 5/16-18 Price: Call Us |
| 36 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 37 |
193931X428 |
Wheel & Tire Assembly, Front 7 x 1-3/4 Price: Call Us |
| 39 |
409149 |
Nut, Hex Price: Call Us |
| 40 |
411949 |
Frame, Grassbag Price: Call Us |
| 41 |
88652 |
Screw, Hinge Price: Call Us |
| 42 |
405421 |
Spring, LH Price: Call Us |
| 43 |
405423 |
Spring, RH Price: Call Us |
| 44 |
184193 |
Bolt, Rear Door Price: Call Us |
| 45 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 46 |
404763 |
Danger Decal Price: Call Us |
| 47 |
751153 |
Nut, Hex Price: Call Us |
| 48 |
401177X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 49 |
193926X428 |
Wheel & Tire Assembly, Rear 12 x 1-3/4 Price: Call Us |
| 50 |
411060 |
Grassbag Price: Call Us |
| 51 |
147286 |
Hinge Rod Price: Call Us |
| 53 |
851084 |
Screw, Hex Head, Grade 8 3/8-24 x 1-3/8 Price: Call Us |
| 54 |
850263 |
Helical Lockwasher Price: Call Us |
| 55 |
851074 |
Hardened Washer Price: Call Us |
| 57 |
420097 |
Blade Adapter Price: Call Us |
| 58 |
152124 |
Hinge Spring Price: Call Us |
| 61 |
409148 |
Flanged Locknut Price: Call Us |
| 62 |
73800400 |
Nut, Hex Price: Call Us |
| 65 |
88348 |
Washer, Flat Price: Call Us |
| 66 |
197480 |
O-Ring Price: Call Us |
| 67 |
197991 |
Clip, Cable Price: Call Us |
| 73 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 74 |
851201X004 |
Washer, Special, Engine Price: Call Us |
| 76 |
410589 |
Baffle, Rear Price: Call Us |
| 77 |
17411312 |
Screw, Rear Baffle Price: Call Us |
| 77 |
193732 |
Operator's Manual, English Price: Call Us |
| 77 |
193734 |
Operator's Manual, French Price: Call Us |
