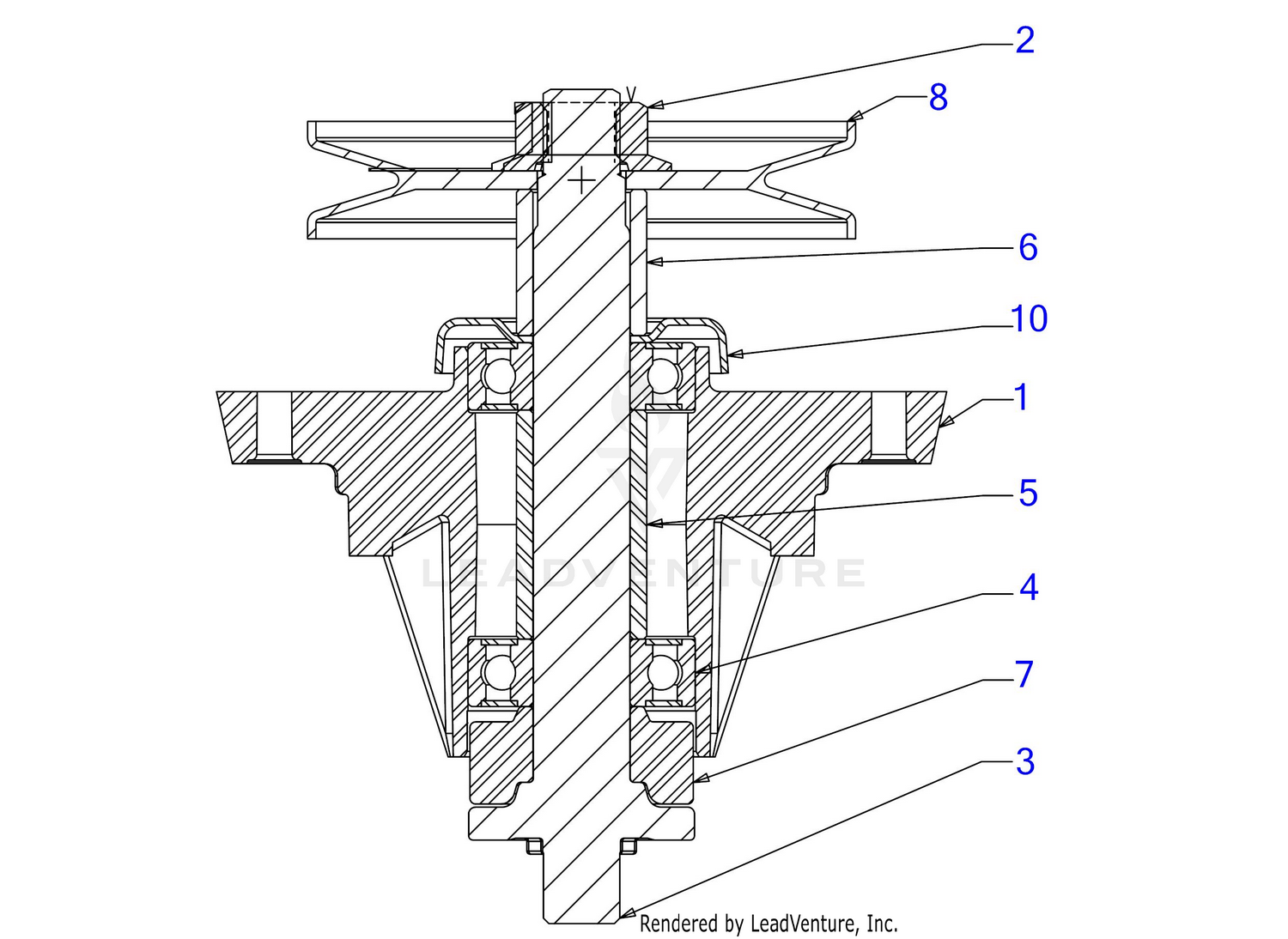

Spindle Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 719-07293-M | DECK SPINDLE HOUSING (W/O FTG) This part replaces 619-04183B. Price: $39.28 |
| 2 | 712-05134 | FLANGE NUT 5/8-18 Price: $5.52 |
| 3 | 738-1186A | BLADE SPINDLE SHAFT STAR 6.11 LG Price: $45.83 |
| 4 | 741P0919B | BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 5 | 750-04936 | SPACER- .792 x 1.060 x 1.860 Price: $5.94 |
| 6 | 750-06153 | SPACER .792 x 1.060 x 1.191 Price: $3.68 |
| 7 | 750-06365 | SPACER Price: $5.52 |
| 10 | 783-08435 | SHIELD-BRG DECK Price: $6.28 |
