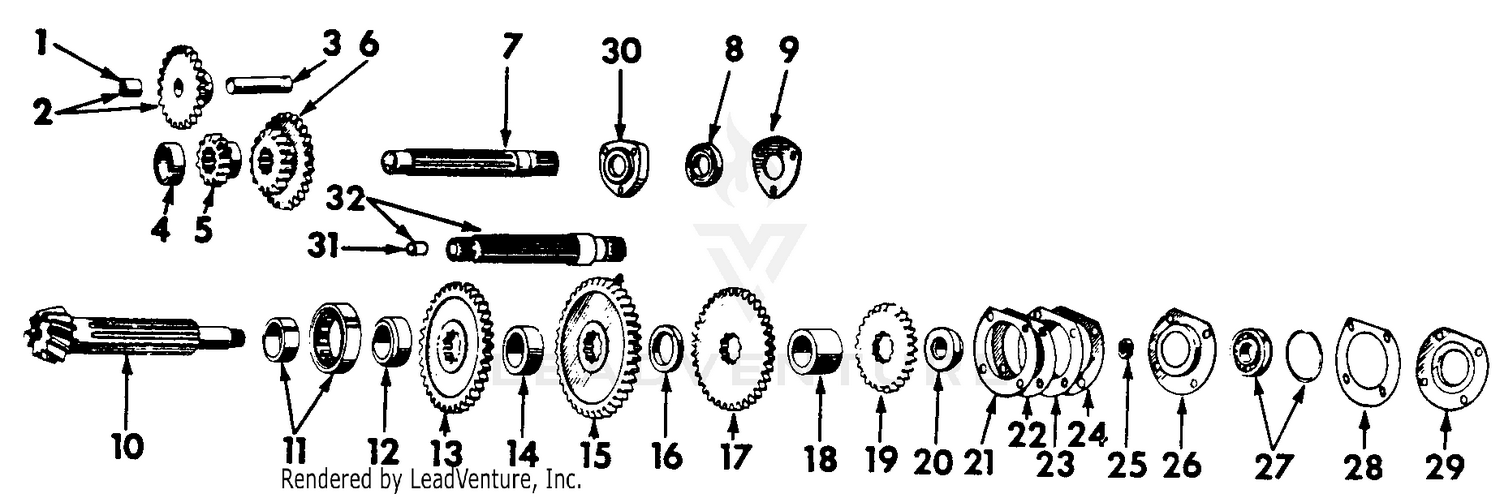

| Ref | Part Number | Description |
|---|
| 1 |
741-3020 |
SLEEVE BEARING (717-3188 Not Available Price: |
| 1 |
85-4760 |
DECAL-RM 5100D V1.0 Price: $46.46 |
| 1 |
93-8078 |
DECAL-DIAG. DISP.DANISH Price: $9.89 |
| 1 |
93-8079 |
DECAL-DIAG. DISP.DUTCH Price: $9.89 |
| 1 |
93-8080 |
DECAL-DIAG. DISP.ITALIAN Price: $10.78 |
| 1 |
93-8081 |
DECAL-DIAG. DISP.SPANISH Price: $37.89 |
| 1 |
93-8082 |
DECAL-DIAG. DISP.GERMAN Price: $15.84 |
| 1 |
93-8083 |
DECAL-DIAG. DISP.FRENCH Price: $12.89 |
| 1 |
93-8084 |
DECAL-DIAG. DISP.SWEDISH Price: $12.89 |
| 1 |
93-8085 |
DECAL-DIAG. DISP.PORTUG. Price: $12.89 |
| 1 |
93-8086 |
DECAL-DIAG. DISP.NORWEG. Price: $12.89 |
| 1 |
93-8087 |
DECAL-DIAG. DISP.FINNISH Price: $9.89 |
| 1 |
93-8089 |
DECAL-DIAG. DISP.JAPANESE Price: $65.35 |
| 2 |
717-3188 |
REVERSE GEAR ASSEMBLY Not Available Price: |
| 3 |
603000267 |
FUSE BLOCK Price: $6.99 |
| 3 |
IH-350869-R1 |
Shaft, Reverse Idler Price: Call Us |
| 4 |
603000992 |
RELAY, MINI ISO, SPDT Price: $19.99 |
| 4 |
741-0364 |
NEEDLE BEARING Not Available Price: |
| 5 |
917-3078 |
GEAR-1ST & REV Not Available This part replaces 717-3078. Price: |
| 6 |
603000993 |
PLATE, ELECTRICAL Price: $12.99 |
| 6 |
IH-388597-R1 |
GEAR Not Available Price: |
| 7 |
603000994 |
COVER, ELECTRICAL Price: $54.99 |
| 7 |
IH-384703-R1 |
SHAFT Not Available Price: |
| 8 |
603001067 |
FASTENER, PUSH-IN Price: $1.99 |
| 8 |
941-3037 |
Bearing, Ball This part replaces 741-0360. Price: $38.73 |
| 9 |
603001068 |
RIVET, DRIVE Price: $1.99 |
| 9 |
IH-384704-R1 |
Retainer, Transmission Main Shaft Front Brg Price: Call Us |
| 10 |
None |
Countershaft & Bevel Pinion -13T |
| 10 |
603001177 |
FUSE, ATC/ATO, 25A Price: $2.99 |
| 11 |
603000064 |
LOCKNUT, 1/4-20 DIMPLED Price: $1.99 |
| 11 |
741-0367 |
ROLLER BEARING Not Available Price: |
| 12 |
717-3091 |
SPACER Not Available Price: |
| 13 |
717-3092 |
SPUR GEAR-35T-REV Not Available Price: |
| 14 |
717-3091 |
SPACER Not Available Price: |
| 15 |
917-3090 |
SPUR-39T Not Available This part replaces 717-3090. Price: |
| 16 |
717-3089 |
SPACER Not Available Price: |
| 17 |
IH-388596-R1 |
GEAR Not Available Price: |
| 18 |
717-3083 |
SPACER Not Available Price: |
| 19 |
717-3079 |
SPUR GEAR- Not Available Price: |
| 20 |
IH-385689-R2 |
Spacer, Third Speed Gear & Countershaft Brg Price: Call Us |
| 21 |
IH-350841-R2 |
SHIM Not Available Price: |
| 22 |
IH-350842-R2 |
SHIM Not Available Price: |
| 23 |
IH-350843-R2 |
SHIM Not Available Price: |
| 24 |
IH-350844-R2 |
SHIM Not Available Price: |
| 25 |
712-3026 |
Nut, Hex Jam, 3/4-16 GR5 This part replaces IH-427350. Price: $4.29 |
| 27 |
741-0366 |
BALL BEARING-W/RIN Not Available Price: |
| 28 |
IH-350846-R1 |
GASKET Not Available Price: |
| 29 |
IH-376211-R1 |
Retainer, Countershaft Brg Price: Call Us |
| 30 |
IH-384705-R1 |
Cage, Transmission Main Shaft Front Brg Price: Call Us |
| 31 |
IH-350859-R1 |
BUSHING Not Available Price: |
