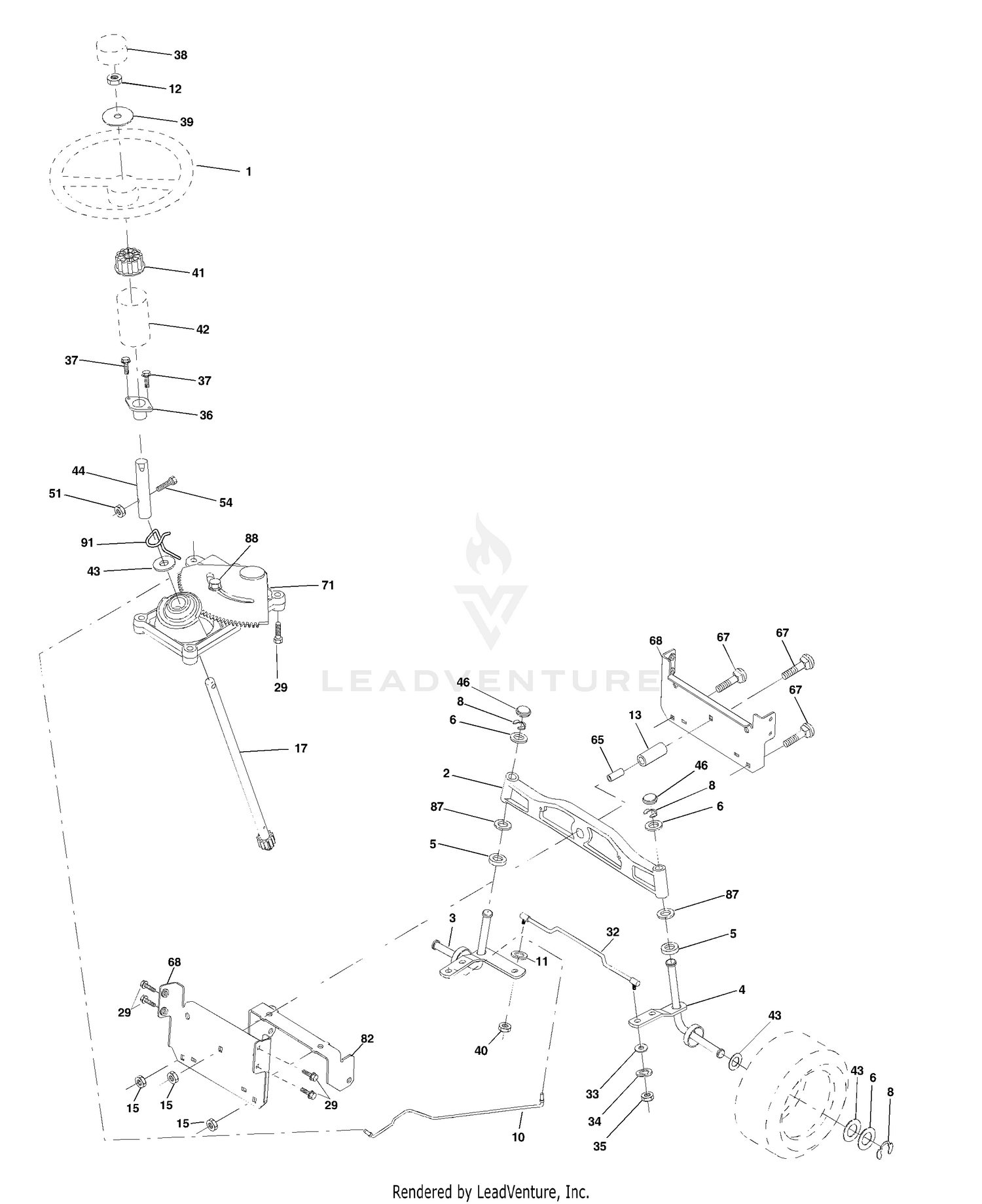

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 1 |
94-8297 |
DISCONTINUED Price: Call Us |
| 2 |
172393 |
Axle Asm Cast Iron LT Price: Call Us |
| 2 |
237-161 |
O-RING Price: $6.06 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
86-5590 |
DISCONTINUED Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
84-1380-03 |
ANCHOR-SPRING Price: $75.43 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 6 |
63-9751 |
DISCONTINUED Price: Call Us |
| 7 |
95-4352-03 |
BRACKET-NEUTRAL Price: $101.92 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
63-8410 |
WASHER Price: $1.76 |
| 9 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
3213-2 |
SCREW-HH Price: $1.90 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 UNF Price: Call Us |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 13 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 14 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 16 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 17 |
180641 |
Shaft Asm Steering Price: Call Us |
| 17 |
92-2581 |
DISCONTINUED Price: Call Us |
| 18 |
322-7 |
SCREW-HH Price: $0.89 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
324-4 |
SCREW-HH Price: $0.95 |
| 21 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 22 |
76-9430-03 |
SPRING-EXTENTION Price: $28.14 |
| 23 |
84-1480 |
HOSE-DAMPENER Price: $12.04 |
| 24 |
86-3040 |
COUPLER-LINE, DRIVE Price: $381.88 |
| 25 |
323-29 |
SCREW-HH Price: $0.42 |
| 26 |
82-5180-03 |
CONTROL-PUMP Price: $134.08 |
| 27 |
86-3020 |
DISCONTINUED Price: Call Us |
| 28 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 29 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 29 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 30 |
3296-9 |
NUT-HEX Price: $0.25 |
| 31 |
82-5280 |
SHAFT-PIVOT Price: $51.63 |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 32 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 33 |
3220-3 |
NUT-HJ Price: $0.28 |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 34 |
88-1470-03 |
DISCONTINUED Price: Call Us |
| 35 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 35 |
73540500 |
Crownlock Nut 5/16-24 Unf Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 36 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 37 |
152927 |
Screw Price: Call Us |
| 37 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 38 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 39 |
19182411 |
Washer 9/16 ID x 1 1/2 OD 11 Ga. Price: Call Us |
| 39 |
95-4351-03 |
DISCONTINUED Price: Call Us |
| 40 |
76-9760 |
DAMPER-PIVOT Price: $96.95 |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 42 |
32151-73 |
RING-CLIP Price: $2.59 |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 43 |
323-7 |
SCREW-HH Price: $0.65 |
| 44 |
180640 |
Extension Steering Shaft Price: Call Us |
| 44 |
322-6 |
SCREW-HH Price: $0.45 |
| 45 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 46 |
253-43 |
SEAL-OIL Price: $31.16 |
| 47 |
84-1330-03 |
DISCONTINUED Price: Call Us |
| 48 |
84-1030-03 |
DISCONTINUED Price: Call Us |
| 49 |
84-0170-03 |
PULLEY-PTO Price: $874.74 |
| 50 |
251-314 |
BEARING-BALL Price: $102.23 |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 51 |
86-5940 |
SPACER-BEARING, UPPER Price: $5.16 |
| 52 |
84-0750-03 |
DISCONTINUED Price: Call Us |
| 53 |
88-1430 |
LOCKNUT-BEARING Price: $30.40 |
| 54 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 54 |
71130420 |
Bolt Hex 1/4-28 UNF x 1-1/4 Gr. 8 Price: Call Us |
| 55 |
86-2830-03 |
PLATE-ADAPTER, MAIN Price: $409.90 |
| 56 |
100-2592 |
SCREW-HHF Price: $9.09 |
| 57 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 58 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 59 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 60 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 61 |
323-45 |
SCREW-HH Price: $0.68 |
| 62 |
88-1440 |
WASHER-LOCK Price: $14.32 |
| 63 |
80-7730 |
SPACER Price: $1.97 |
| 64 |
92-1351 |
DISCONTINUED Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Unc Price: Call Us |
