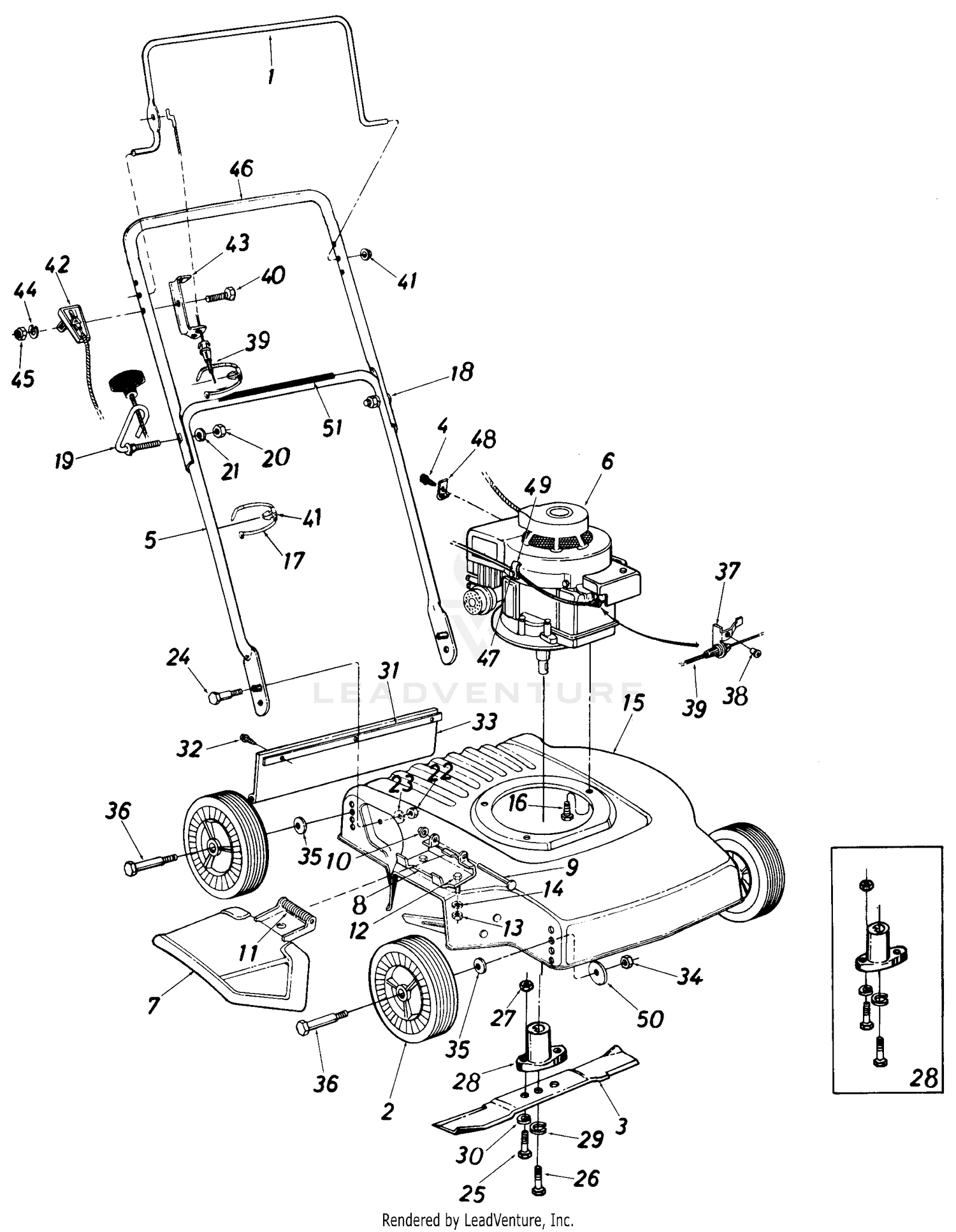

| Ref | Part Number | Description |
|---|
| 1 |
747-0500 |
HANDLE-CONTROL Not Available Price: |
| 2 |
N/A |
Plastic Wheel Ass'y. 6 x 1.50 |
| 4 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. Price: $3.90 |
| 5 |
749-0928A-0637 |
Lower Handle This part replaces 749-0373. Price: $29.67 |
| 6 |
N/A |
Engine |
| 7 |
11681 |
DEFLECTOR Not Available Price: |
| 8 |
11130 |
ADAPTER PLATE Not Available Price: |
| 9 |
711-0555 |
PIVOT PIN Not Available Price: |
| 10 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 11 |
732-0253 |
TORSION SPRING Not Available Price: |
| 12 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 13 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 16 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 17 |
725-0157 |
Cable Tie Price: $3.46 |
| 18 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 19 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 20 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 21 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 22 |
712-0429 |
Hex Ins. L-Nut 5/16-18 Thd. Price: $3.56 |
| 23 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 24 |
738-0140 |
Shoulder Bolt .437" Dia. x. 180 Price: $4.93 |
| 26 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01 |
| 27 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 28 |
753-0348 |
Blade Adapter Kit Price: Call Us |
| 29 |
736-0217 |
L-Wash. 3/8" I.D.-H.D. Price: $3.86 |
| 30 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 31 |
14835 |
STRIP-RETA Not Available Price: |
| 32 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 33 |
731-0583 |
REAR FLAP ASS'Y. Not Available Price: |
| 34 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 35 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 36 |
738-0213 |
Shld Bolt .498" Dia. x 1.450" Lg. Price: $7.16 |
| 37 |
14924 |
BRACKET-CA Not Available Price: |
| 38 |
728-0171 |
RIVET Not Available Price: |
| 40 |
710-0559 |
SCREW 1/4-28 x 1.75 GR5 Not Available Price: |
| 41 |
725-0157 |
Cable Tie This part replaces 726-0241. Price: $3.46 |
| 42 |
946-0645A |
Throttle Control Ass'y. Comp. This part replaces 746-0644. Price: $40.73 |
| 43 |
16201 |
BRACKET-CA Not Available Price: |
| 44 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 45 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 46 |
749-0536 |
UPPER HANDLE Not Available Price: |
| 47 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 48 |
751-0369 |
CLAMP-CONDUIT Not Available Price: |
| 49 |
12894 |
CABLE CLAMP Not Available Price: |
| 50 |
736-0331 |
Fl-Wash. .398" I.D. x 1.13" Price: $3.50 |
| 51 |
777-5776 |
LABEL Price: Call Us |
