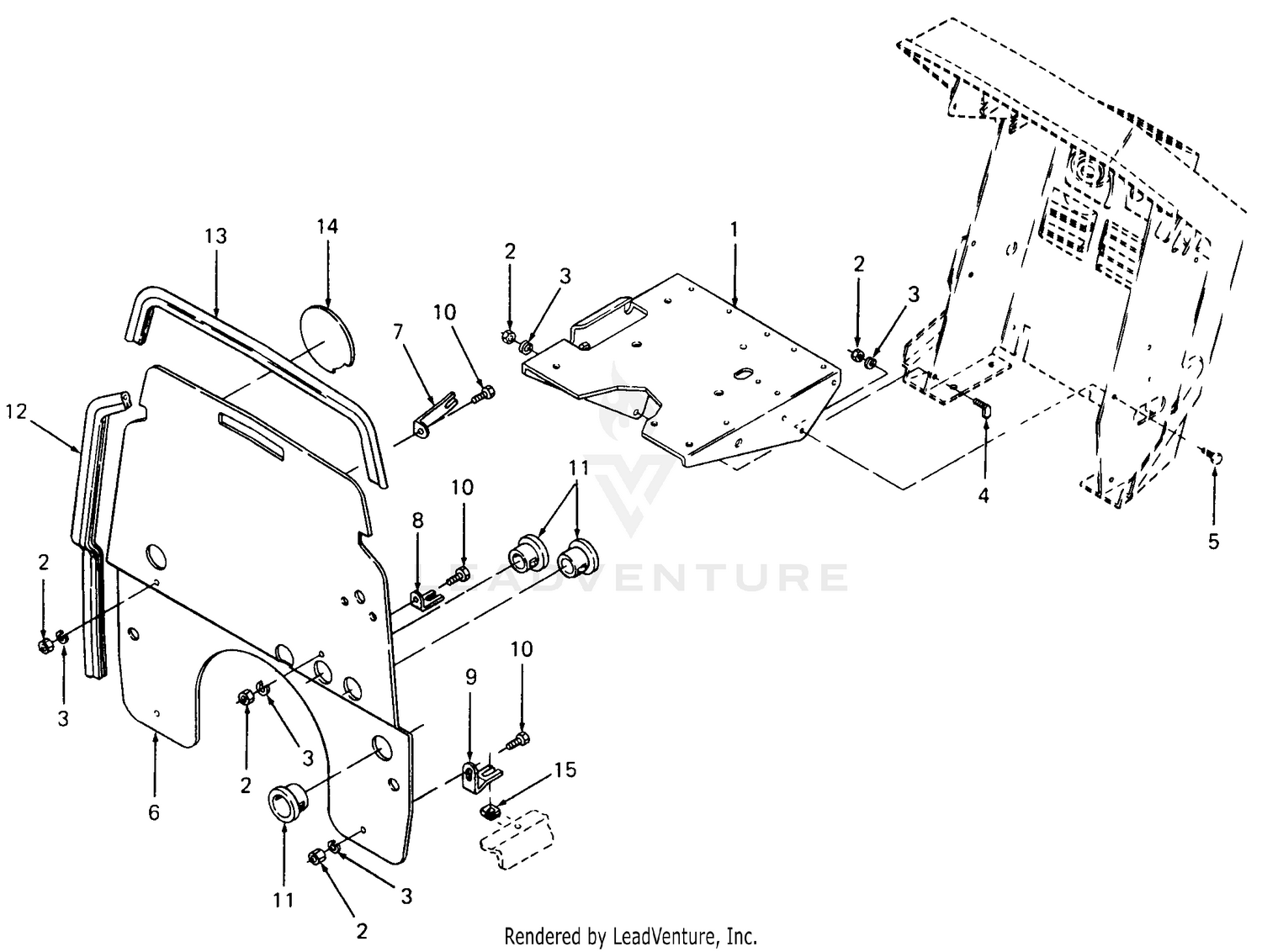

| Ref | Part Number | Description |
|---|
| 1 |
703-1827 |
TRAY ASSEMBLY- Not Available Price: |
| 1 |
94-2602 |
ACTUATOR-JOYSTICK Price: $13.14 |
| 2 |
712-3006 |
HEX NUT Price: $4.05 |
| 2 |
94-2601 |
MICROSWITCH Price: $74.70 |
| 3 |
93-9196 |
JOYSTICK-6 POSITION Price: $2,343.29 |
| 3 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 4 |
710-3012 |
BOLT-J TYPE 1/4-20 Not Available Price: |
| 4 |
94-3045 |
COLLAR-INTERLOCK,JOYSTICK Price: $92.05 |
| 5 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 |
94-3046 |
DISCONTINUED Price: Call Us |
| 6 |
703-2056 |
HEAT BAFFLE Not Available Price: |
| 6 |
94-2600 |
BOOT-JOYSTICK Price: $84.16 |
| 7 |
703-1997 |
BRACKET-L Not Available Price: |
| 7 |
94-3055 |
CAP - LOWER, JOYSTICK Price: $26.29 |
| 8 |
703-1998 |
BRACKET-L 1.1 Not Available Price: |
| 8 |
94-3056 |
DISCONTINUED Price: Call Us |
| 9 |
703-2057 |
BRACKET-L Not Available Price: |
| 9 |
94-3057 |
SPRING-COMPRESS,JOYSTICK Price: $15.18 |
| 10 |
710-3013 |
Screw, Hex Cap, 1/4-20 X .5 GR Price: $4.02 |
| 10 |
94-3058 |
DISCONTINUED Price: Call Us |
| 11 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 11 |
84-3420 |
DECAL - NO RIDERS Price: $10.06 |
| 11 |
93-6689 |
DECAL-NO RIDERS This part replaces 75-5190. Price: $9.75 |
| 12 |
723-3059 |
HEAT BAFFLE SEAL Not Available Price: |
| 12 |
94-3091 |
DECAL - FUSES, JAPANESE Price: $18.43 |
| 12 |
94-6348 |
Decal-Fuse Price: Call Us |
| 12 |
94-6349 |
DECAL-FUSES Price: $11.05 |
| 13 |
723-3060 |
HEAT BAFFLE SEAL Not Available Price: |
| 13 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
735-3040 |
DISC-ADHESIVE Not Available Price: |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
3217-26 |
NUT-HEX Price: $0.25 |
| 17 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 22 |
93-1268 |
DECAL-HOC SELECTOR This part replaces 94-2633. Price: $31.62 |
| 22 |
94-4582 |
DECAL - HOC SEL, 6700,JAP Price: $25.92 |
| 23 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 24 |
3220-24 |
NUT-HEX Price: $0.96 |
| 25 |
75-1010 |
SWITCH-REEL Price: $84.90 |
| 26 |
94-2613 |
DISCONTINUED Price: Call Us |
| 27 |
218-498 |
NUT-LOCK Price: $0.68 |
| 28 |
3256-75 |
WASHER-FLAT Price: $0.79 |
| 29 |
93-8497 |
DISCONTINUED Price: Call Us |
| 30 |
60-6500 |
SCREW-HH Price: $0.54 |
| 31 |
3290-489 |
KNOB Price: $46.30 |
| 32 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 33 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 34 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 35 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 36 |
3254-20 |
WASHER-LOCK, INT This part replaces 218-589. Price: $1.29 |
| 37 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 38 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 39 |
218-446 |
NUT-HEX Price: $6.09 |
| 40 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 41 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 42 |
93-1260 |
DISCONTINUED Price: Call Us |
| 42 |
94-1400 |
DISCONTINUED Price: Call Us |
| 42 |
94-4581 |
DECAL - CONSOLE, 6700,JAP Price: $86.46 |
| 43 |
94-1401-03 |
DISCONTINUED This part replaces 94-1401. Price: Call Us |
| 46 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 47 |
27-2360 |
SWITCH Price: $46.56 |
| 48 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 49 |
85-4480 |
KNOB Price: $16.02 |
| 50 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 51 |
93-7587 |
BRACKET-FUSE BLOCK/PANEL Price: $19.16 |
| 52 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 53 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 54 |
104-4235 |
POTENTIOMETER ASM This part replaces 85-4470. Price: $260.80 |
| 55 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 56 |
32128-33 |
NUT-HF Price: $0.25 |
| 57 |
321-39 |
SCREW-HH Price: $0.42 |
| 58 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 59 |
2412-126 |
R-CLAMP Price: $2.51 |
| 60 |
92-7632 |
HARNESS - WIRE Price: $758.90 |
| 61 |
75-5740-03 |
BOX-CONTROL ASM This part replaces 75-5740. Price: $261.87 |
| 70 |
94-3343 |
BRACKET-BEEPER Price: $15.60 |
| 71 |
94-5582 |
ALARM-AUDIO Price: $91.21 |
| 74 |
237-7 |
O-RING Price: $8.82 |
| 75 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 503712201 |
503712201 |
BEARING Price: $11.99 |
| 503940201 |
503940203 |
BEARING CAP This part replaces 503940201. Price: $29.99 |
| 503940501 |
503940501 |
CUP Price: $9.99 |
| 537128173 |
537128105 |
CRANKSHAFT ASSY This part replaces 537128173. Price: $98.99 |
