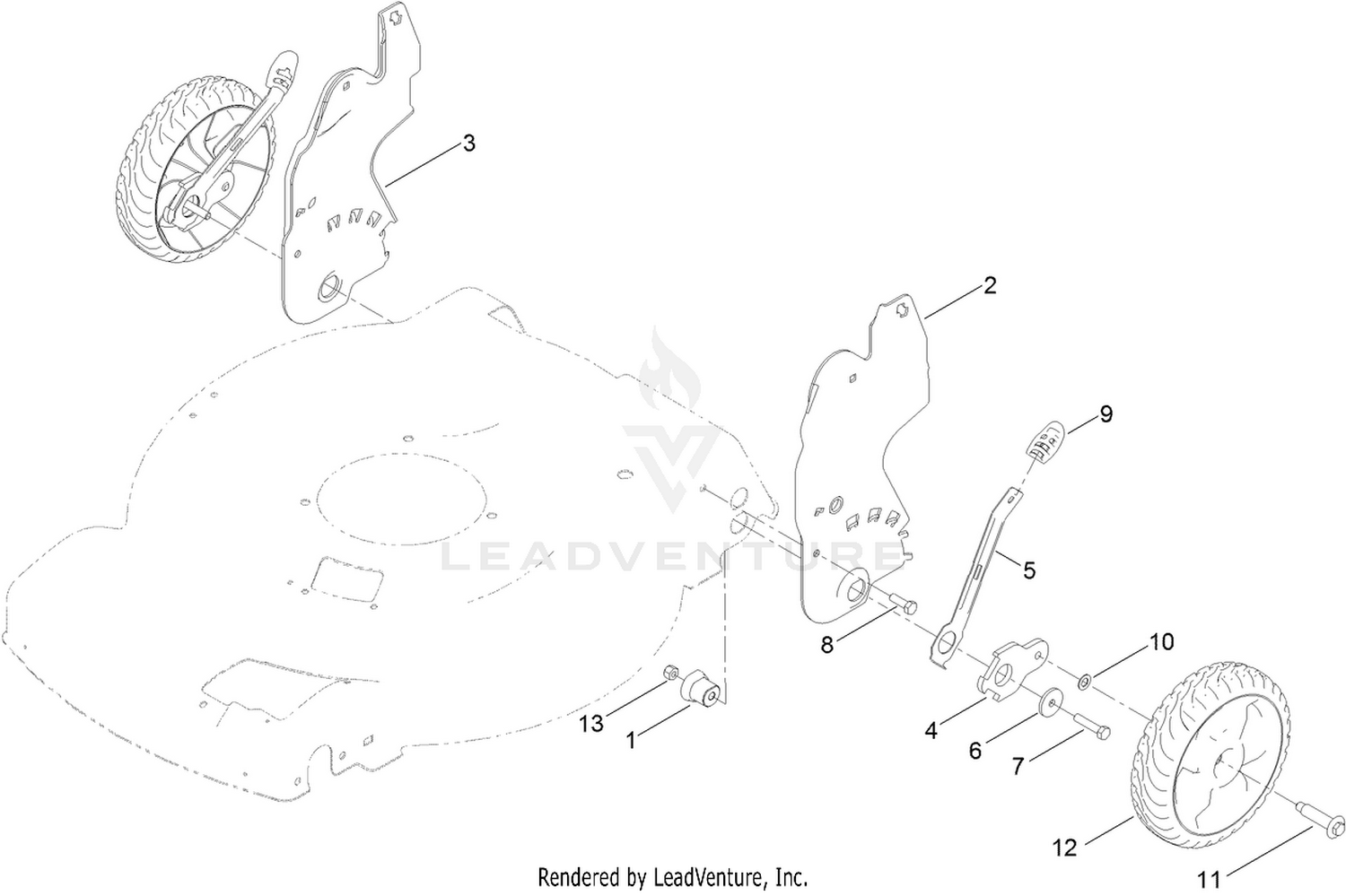

Rear Wheel and Height-of-Cut Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-0895 | BUSHING-MOUNT, HOC Price: $2.18 |
| 2 | 132-4494-03 | PLATE-HOC, LH Price: $13.96 |
| 3 | 132-4495-03 | PLATE-HOC, RH Price: $13.96 |
| 4 | 137-9129 | ARM-PIVOT, REAR Price: $8.00 |
| 5 | 115-2899 | ARM-SPRING, REAR Price: $8.08 |
| 6 | 105-3048 | WASHER-FLAT Price: $0.89 |
| 7 | 322-7 | SCREW-HH Price: $0.89 |
| 8 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 | 105-3042 | KNOB-LEVER, HOC Price: $3.28 |
| 10 | 40-1940 | WASHER Price: $1.59 |
| 11 | 614650 | BOLT-SHOULDER Price: $3.28 |
