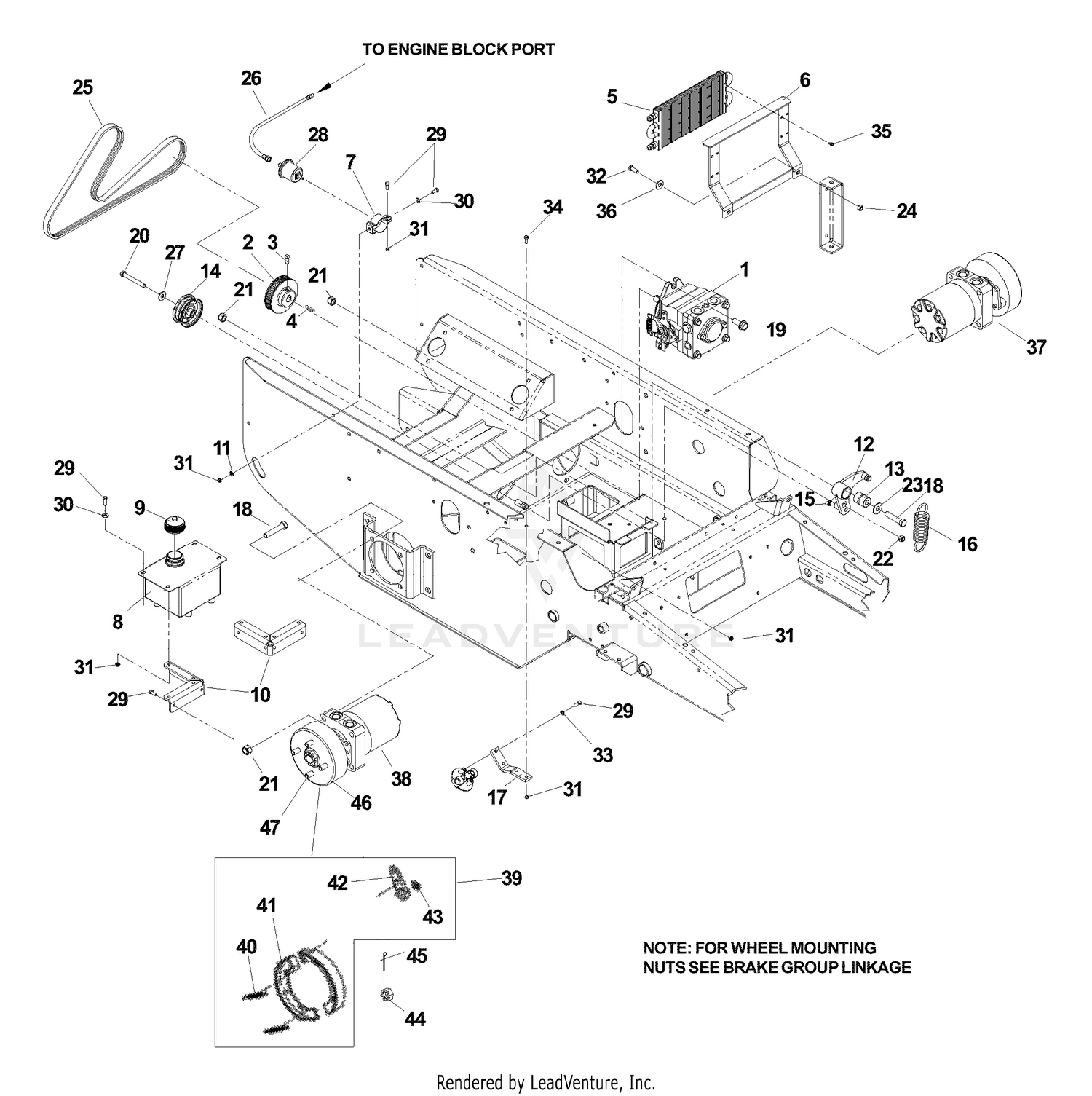

| Ref | Part Number | Description |
|---|
| 1 |
539110910 |
HG_PUMP Price: $1,699.99 |
| 2 |
539106334 |
PUMP SHEAVE Price: $99.99 |
| 2 |
77-3590 |
SHIELD Price: $10.40 |
| 3 |
539102716 |
SCREW 5/16C X 1 SQ HEAD SET Price: $2.99 |
| 3 |
77-3830 |
CLIP Price: $14.58 |
| 4 |
539109178 |
KEY, METRIC Price: $7.99 |
| 4 |
77-3840 |
DISCONTINUED Price: Call Us |
| 5 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 5 |
539106356 |
COOLER Price: $109.99 |
| 6 |
539107810 |
COOLER WLDMT MT Price: $37.99 |
| 6 |
77-3800 |
DISCONTINUED Price: Call Us |
| 7 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 7 |
539107844 |
CLAMP-OIL SENDER Price: $1.98 |
| 8 |
539105891 |
TANK, OIL = PAINTED Price: $169.99 |
| 8 |
77-3810 |
DISCONTINUED Price: Call Us |
| 9 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 9 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 10 |
539110912 |
SUPPORT Price: $25.99 |
| 10 |
74-7910 |
SCREW - HEX HD Price: $2.92 |
| 11 |
539109347 |
WASHER 1/4 EXTLW STAR ZD Price: $0.99 |
| 11 |
77-3820 |
SUPPORT - SHIELD Price: $32.22 |
| 12 |
539106425 |
ARM WELDMENT Price: $159.99 |
| 12 |
77-3870 |
WASHER Price: $0.93 |
| 13 |
539106417 |
BUSHING Price: $69.99 |
| 13 |
77-3860 |
LOCKNUT Price: $0.93 |
| 14 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 14 |
77-3580 |
SHIELD Price: $181.55 |
| 15 |
539912758 |
ZERK Price: $3.99 |
| 15 |
77-3570 |
SHIELD Price: $72.66 |
| 16 |
539102666 |
SPRING Price: $27.99 |
| 17 |
539106290 |
FILTER MOUNT - PAINTED Price: $7.99 |
| 18 |
539108346 |
HEX SCREW 1/2-13 X 2.5" GR 5 Price: $4.99 |
| 19 |
539990622 |
HCS 1/2C X 1 1/4 SERRATED HEAD Price: $3.99 |
| 20 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 21 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 22 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 23 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 24 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 25 |
539106341 |
PUMP BELT Price: $27.99 |
| 26 |
539108053 |
HOSE Price: $12.99 |
| 27 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 28 |
539106382 |
SENDER,OIL PRESS Price: $109.99 |
| 29 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 30 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 31 |
539108735 |
NUT 1/4-20 HEX FLG LK ZD Price: $3.99 |
| 32 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 33 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 34 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 35 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 36 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 37 |
539106266 |
WHEEL MTR ASM Price: $1,199.99 |
| 38 |
539106267 |
WHEEL MTR ASM, RT Price: $1,199.99 |
| 39 |
539108524 |
SHOE ASSY This part replaces 539111806. Price: $37.99 |
| 40 |
539108523 |
RETURN SPRING Price: $4.99 |
| 41 |
539108524 |
SHOE ASSY Price: $37.99 |
| 42 |
539108525 |
LEVER Price: $14.99 |
| 43 |
539108526 |
CLIP Price: $3.99 |
| 44 |
539105277 |
CASTLE-NUT Price: $8.99 |
| 45 |
539990297 |
COTTER PIN Price: $2.99 |
| 46 |
539111807 |
DRUM Price: $349.99 |
