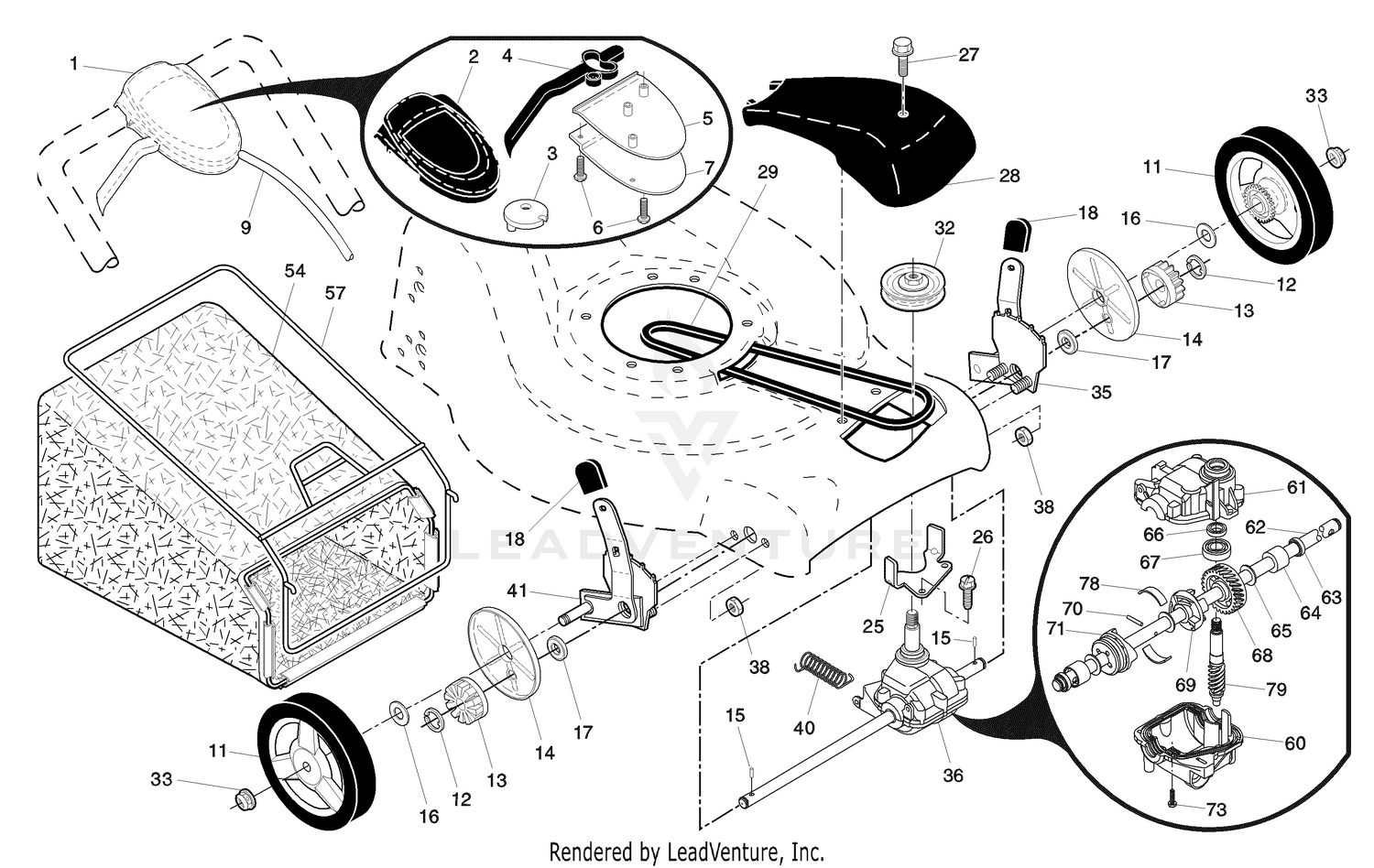

| Ref | Part Number | Description |
|---|
| 1 |
353-512 |
PLUG Price: $15.26 |
| 1 |
532425580 |
CONTROL.DR.AW.FWGD.GRY/BLACK This part replaces 532407316. Price: $59.99 |
| 2 |
21-8620-03 |
DISCONTINUED This part replaces 21-8620. Price: Call Us |
| 2 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 3 |
233-21 |
KNOB Price: $12.99 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ Price: $7.99 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 9 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 9 |
532406259 |
CABLE ASSEMBLY, DRIVE Price: $44.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 15 |
63-8990 |
HOSE-HYD Price: $57.67 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 17 |
63-9260 |
MANIFOLD VALVE ASM Price: $136.31 |
| 18 |
340-112 |
FITTING-ELBOW, 90 Price: $31.81 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 19 |
92-7833 |
HOSE ASM Price: $59.90 |
| 20 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 21 |
100-6587 |
HYDRAULIC CYLINDER ASM This part replaces 62-4250. Price: $1,163.83 |
| 22 |
92-7834 |
HOSE-HYD Price: $11.20 |
| 23 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 24 |
340-110 |
FITTING-SWIVEL, 90 DEG Price: $49.98 |
| 25 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99 |
| 26 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
111332 |
SWITCH This part replaces 21-8590. Price: $10.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 29 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 31 |
237-42 |
O-RING Price: $2.78 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 36 |
532404833 |
TRANSMISSION.21.FGD.HT.VST Price: $119.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532401190. Price: $54.99 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD Price: $64.99 |
| 60 |
532410734 |
CASE.BOTTOM. Price: $17.99 |
| 61 |
532410726 |
CASE.UPPER.00254(SERVICE) Price: $12.99 |
| 62 |
532410949 |
SHAFT OUTPUT (12289) Price: $54.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532410729 |
GEAR 28 TEETH 36208 Price: $11.99 |
| 69 |
532410732 |
FIXED DOG CLUTCH Price: $2.99 |
| 70 |
532412746 |
PIN 3.50.337 - 33733 This part replaces 532410733. Price: $7.99 |
| 71 |
532410730 |
MOVEABLE DOG CLUTCH Price: $6.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
