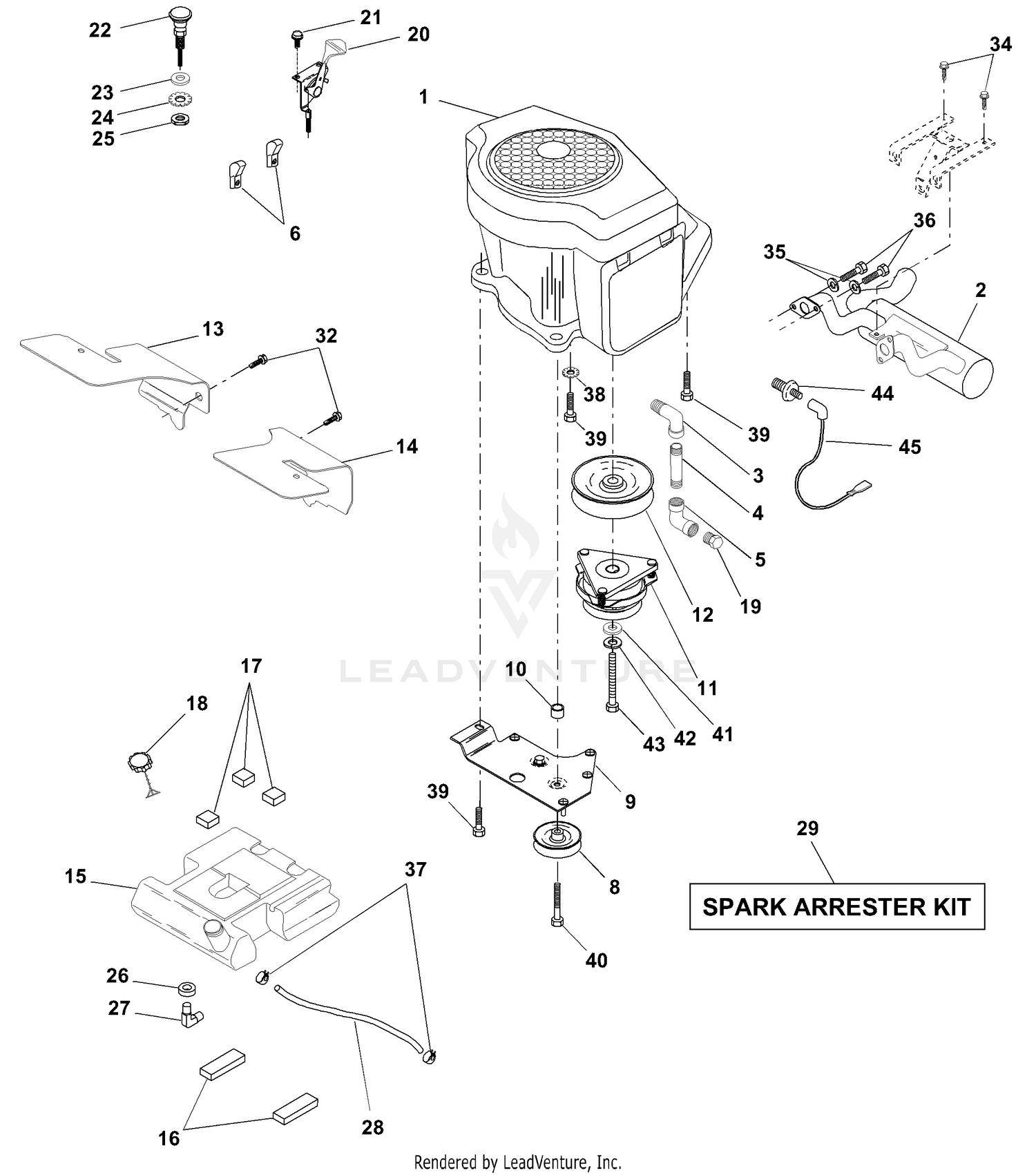

Engine

Engine

Parts (71)

RefPart NumberDescription
1 3290-415 RIVET Price: $0.28
2 80-4760 DECAL Price: $52.54
3 3269-10 WASHER-BACK Price: $0.61
3 813240300 STREET ELBOW LT NLA Price: $7.99
4 80-4740-03 PLATE-BACKING This part replaces 80-4740. Price: $56.55
4 813280328 Nipple Pipe 3/8 NPT X 3 - 1/2 Price: $4.99
5 32128-20 NUT-HF Price: $0.99
5 532428287 VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99
6 32128-17 NUT-LOCK, FLANGE Price: $0.25
6 532138129 CLAMP Price: $3.99
7 77-6770-03 HINGE This part replaces 77-6770. Price: $112.07
8 3290-134 SCREW Price: $0.27
8 532139123 PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99
9 532177748 KEEPER ASM BELT ENGINE This part replaces 532138559. Price: $12.99
9 77-6520 DISCONTINUED Price: Call Us
10 3230-2 BOLT-CARR Price: $0.47
10 532105432 BUSHING Price: $4.99
11 532137140 CLUTCH.ELECT.CVX.105 FT/LB. Price: $299.99
11 77-6651-03 PLATE-BACKING This part replaces 77-6651. Price: $89.59
12 532136907 PULLEY, ENGINE Price: $24.83
12 77-6650-03 PLATE-BACKING This part replaces 77-6650. Price: $89.59
13 120-6592-03 PLATE-BACKING,REAR This part replaces 77-6660. Price: $21.24
13 532154575 BAFFLE This part replaces 532138486. Price: $7.99
14 3233-14 SCREW-CARR Price: $1.95
14 532138487 AIR BAFFLE RH Price: $13.19
15 3290-467 PIN-HAIR Price: $0.27
15 532151346 FUEL TANK 3.5G This part replaces 532141070. Price: $84.99
16 532109227 PAD IDLER TI Price: $3.99
16 77-6600 PIVOT PIN ASM Price: $81.77
17 532106082 PAD-SPACER LT Price: $3.99
17 82-5861 SEAL - LEFT Price: $123.81
18 302-5 FITTING-GREASE Price: $0.59
18 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99
19 77-6430-03 ARM-HOPPER This part replaces 77-6430. Price: $988.31
20 3256-26 WASHER-FLAT Price: $0.39
20 532162150 CONTROL.THROTTLE 37.90 This part replaces 532142168. Price: $22.99
21 596582501 Bolts This part replaces 817720410. Price: $2.99
21 61-3530 BEARING-ROD END, RH This part replaces 2411-48. Price: $52.61
22 3296-23 NUT-LOCK, NI Price: $0.52
22 532138672 CONTROL.CHOKE.51.00.BLK.W/BEND Price: $22.99
23 3220-5 NUT-JAM Price: $0.65
23 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
24 596238701 Washers This part replaces 811050600. Price: $3.99
24 77-6490 ROD-TIE Price: $84.83
25 3220-12 NUT-HEX JAM LH Price: $1.83
25 873610600 NUT Price: $2.99
26 532003645 BUSHING OUTLET T This part replaces 532124952. Price: $3.99
26 61-3540 BEARING-ROD END, LH This part replaces 2411-49. Price: $52.61
27 108-1390 HOPPER ASM This part replaces 77-6510. Price: $2,492.83
27 532139277 STEM FUEL TANK Price: $6.99
28 532008542 FUEL LINE 42" This part replaces 532124703. Price: $5.99
28 82-6850 Seal-Cover, Rear Price: Call Us
29 532132920 SPARK ARRESTOR Price: $43.09
29 82-5851 SEAL - COVER Price: $8.96
30 82-5840-03 FLAT-LONG This part replaces 82-5840. Price: $19.92
31 82-5820 SHIELD-RUBBER, WIDE Price: $58.50
32 596030701 Screws This part replaces 817490508. Price: $2.99
32 82-5810 SHIELD-RUBBER, TOP Price: $32.98
33 32105-12 SCREW Price: $2.19
34 596437001 Screws This part replaces 817720408. Price: $2.99
34 82-5821 SHIELD-RUBBER, NARROW Price: $25.78
35 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99
36 874570512 Screw Hex 5/16 - 16 UNC X 3/4 Price: $3.99
37 532123487 HOSE CLAMP Price: $3.99
38 596238701 Washers This part replaces 811050600. Price: $3.99
39 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99
40 817490652 Screw Thdrol 3/8 - 16 X 3 - 1/4 Price: $3.99
41 532126197 WASHER Price: $6.99
42 596238901 Washers This part replaces 810040700. Price: $2.99
43 501606501 BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170768. Price: $2.99
44 532142320 SWITCH, OIL PRESSURE Price: $24.99
