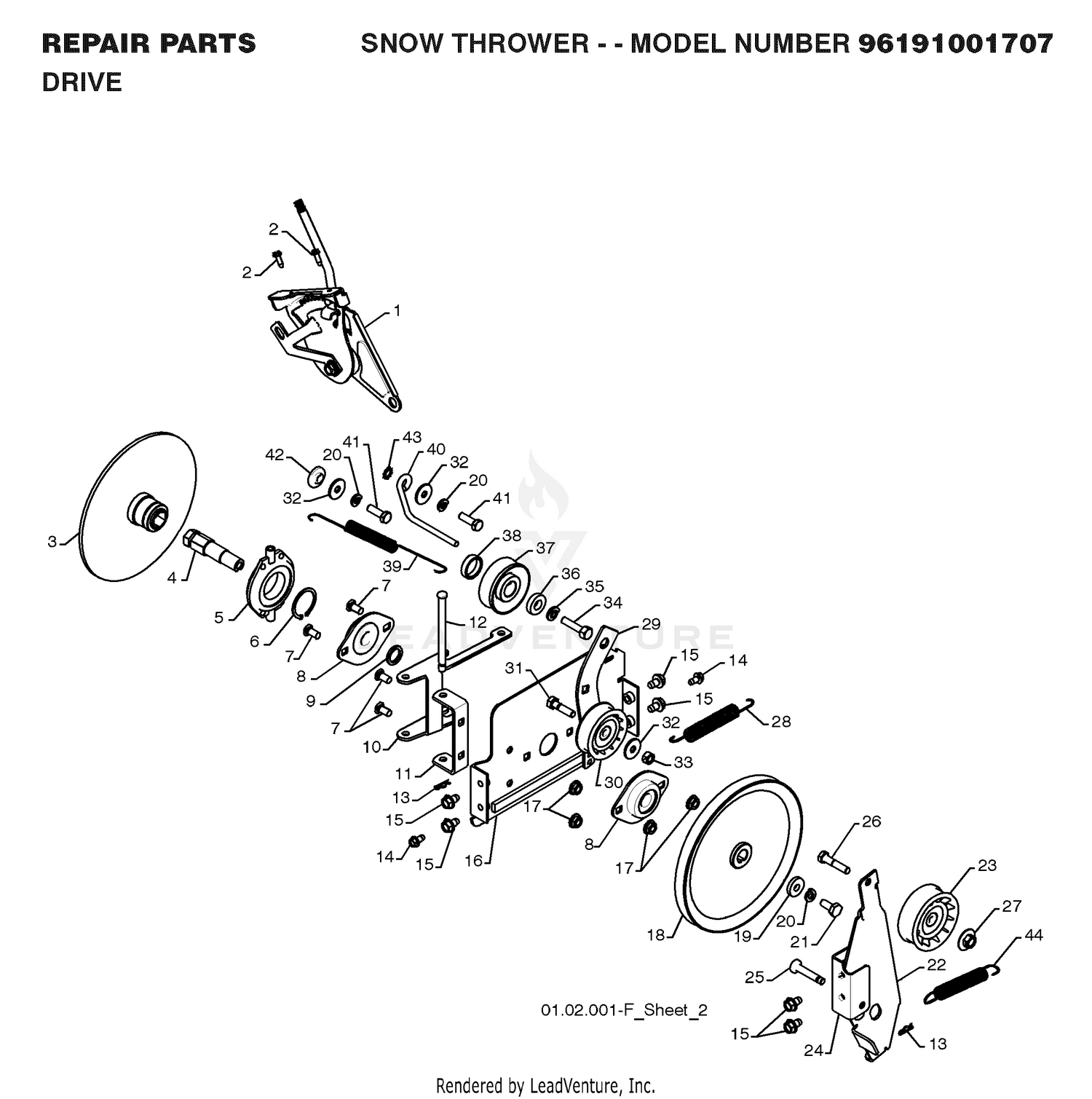

| Ref | Part Number | Description |
|---|
| 1 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198474. Price: $74.99 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $4.99 |
| 3 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 4 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 5 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 6 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 7 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 9 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 10 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 11 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 12 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 15 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 16 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 17 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 18 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 19 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 20 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 21 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 22 |
532422111 |
ARM.IDLER.BRAKE.BLACK Price: $12.99 |
| 23 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 24 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 25 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 26 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 27 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 29 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532179354. Price: $27.99 |
| 30 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 31 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 32 |
532059289 |
STEEL WASHER Price: $3.99 |
| 33 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 36 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 37 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 38 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 39 |
532179095 |
SPRING.RETURN Price: $3.99 |
| 40 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 41 |
874610516 |
SCREW Price: $3.99 |
| 42 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 43 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 44 |
532178828 |
SPRING, BRAKE Price: $4.99 |
