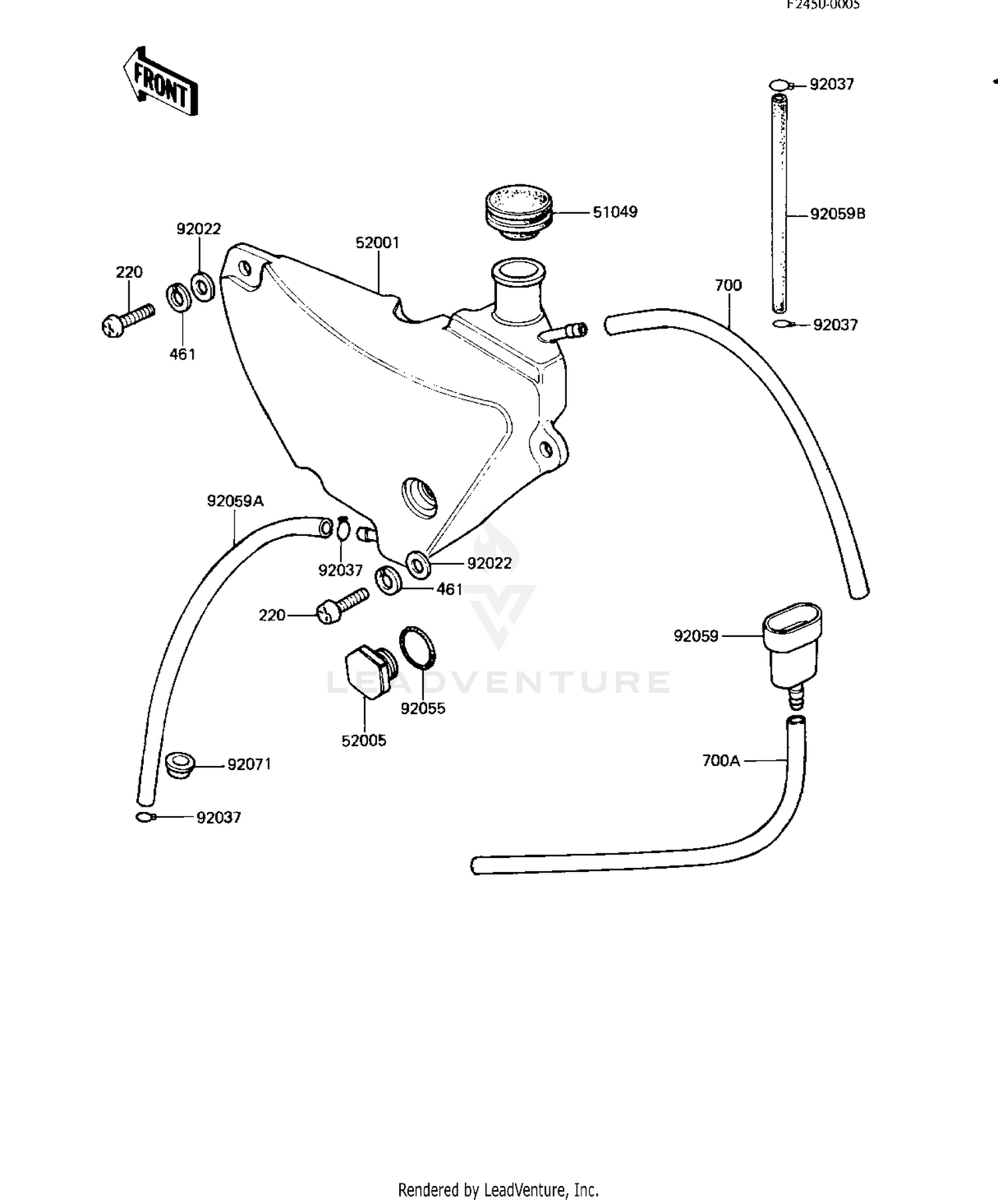

OIL TANK ('82-'83 A9/A10)

OIL TANK ('82-'83 A9/A10)

Parts (13)

RefPart NumberDescription
220 220AA0614 SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48
461 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
700 700Q051000 TUBE-PVC This part replaces 700Q05400. Price: $1.24
51049 51049-1004 CAP-TANK,OIL Price: $14.79
52001 52001-041 TANK,OIL Price: $73.09
52005 52015-002 GUAGE-OIL LEVEL Price: $6.00
92022 92200-0283 WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40
92037 92037-010 CLAMP,TUBE Price: $3.92
92055 92055-051 O RING,20MM Price: $5.59
92059 92059-101 CONNECTOR PIPE Price: $9.12
92059A 92059-1691 TUBE,4.5X9X380 This part replaces 92059-106. Price: $7.77
92059B 92059-072 PIPE-OIL This part replaces 92059-129. Price: $38.33
92071 92071-085 GROMMET,OIL PIPE Price: $4.94
