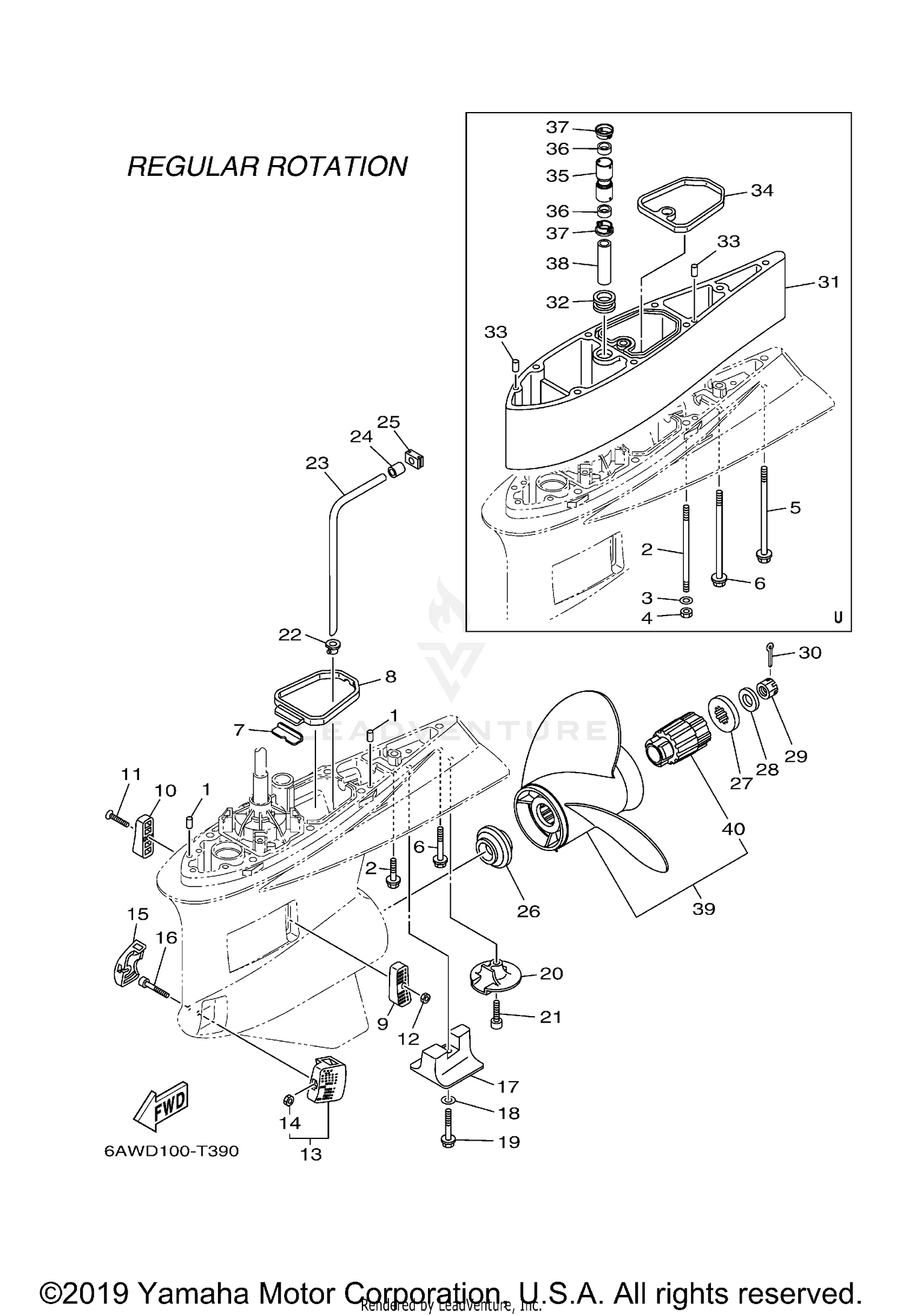

| Ref | Part Number | Description |
|---|
| 1 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 7 |
61A-45376-00-00 |
GUIDE, SEAL DAMPER Price: $38.45 |
| 8 |
6AW-45375-00-00 |
DAMPER, SEAL Price: $19.35 |
| 9 |
6AW-45214-00-00 |
COVER, WATER INLET 1 Price: $10.70 |
| 10 |
6AW-45215-00-00 |
COVER, WATER INLET 2 Price: $10.70 |
| 11 |
90152-05003-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 12 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 13 |
6AW-45224-00-00 |
COVER, WATER INLET 3 Price: $13.75 |
| 14 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 15 |
6AW-45225-00-00 |
COVER, WATER INLET 4 Price: $10.70 |
| 16 |
90110-05050-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 17 |
6AW-45373-00-00 |
ANODE Price: $26.35 |
| 18 |
92990-10300-00 |
WASHER Price: $2.70 |
| 19 |
90105-10257-00 |
BOLT, FLANGE Price: $7.40 |
| 20 |
6AW-45619-00-00 |
CAP Price: $63.25 |
| 21 |
90110-10018-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 22 |
6AW-44367-00-00 |
DAMPER, WATER SEAL 3 Price: $21.15 |
| 23 |
6AW-44362-00-00 |
TUBE, WATER 2 Price: $59.00 |
| 24 |
6AW-44375-00-00 |
GROMMET, WATER TUBE 1 Price: $11.90 |
| 25 |
6AW-44376-01-00 |
GROMMET, WATER TUBE 2 This part replaces 6AW-44376-00-00. Price: $4.50 |
| 26 |
6AW-45987-00-00 |
SPACER 1 Price: $211.60 |
| 27 |
6AW-45997-00-00 |
SPACER 2 Price: $83.00 |
| 28 |
90201-19M01-00 |
WASHER, PLATE Price: $17.35 |
| 29 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 30 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
