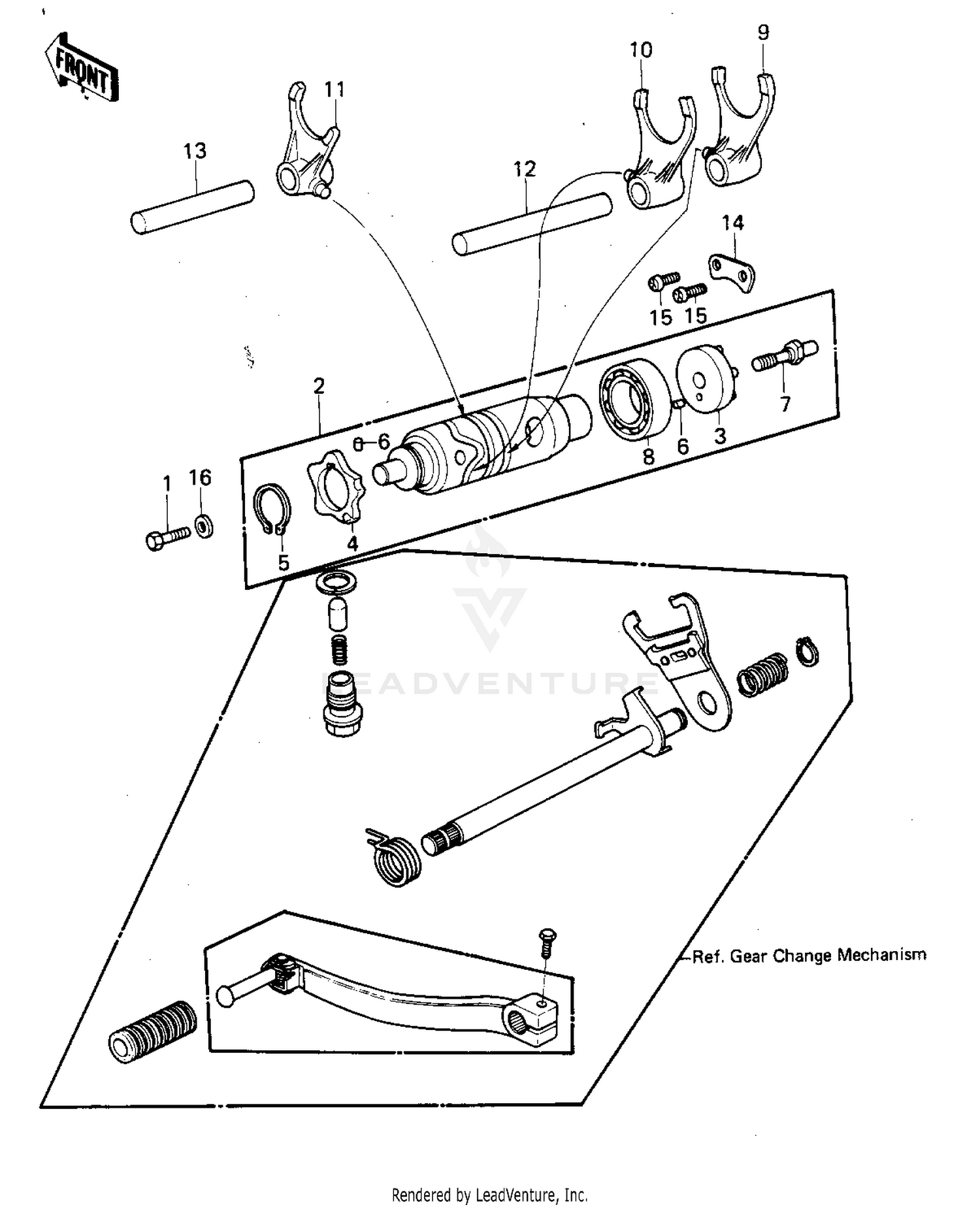

| Ref | Part Number | Description |
|---|
| 1 |
113G1014 |
BOLT,HEX HEAD,10X14 Price: $4.25 |
| 2 |
13239-1036 |
DRUM ASSY,GEAR SHIFT Price: $205.84 |
| 3 |
13142-019 |
PLATE,GEAR CHANGE Price: $18.22 |
| 4 |
13145-007 |
DISC,CHANGE DRUM Price: $11.94 |
| 5 |
480J2400 |
CIRCLIP-TYPE-C,24MM Price: $6.32 |
| 6 |
610A0406 |
ROLLER,4X6 Price: $4.31 |
| 7 |
92001-166 |
BOLT Price: $3.45 |
| 8 |
92045-036 |
BEARING-BALL,#6905 Price: $27.88 |
| 9 |
13140-073 |
SHIFT FORK,LOW Price: $83.79 |
| 10 |
13140-074 |
SHIFT FORK,2ND&3RD Price: $71.31 |
| 11 |
13140-075 |
SHIFT FORK,4TH&TOP Price: $63.74 |
| 12 |
13209-016 |
ROD,SHIFT,LONG This part replaces 49047-1003. Price: $22.90 |
| 13 |
13209-017 |
ROD,SHIFT,SHORT This part replaces 49047-1002. Price: $38.06 |
| 14 |
13169-014 |
PLATE,GEAR CHANGE DRUM Price: $5.23 |
| 15 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
