Home / MARINE_DEMO / Marine Diesel Engines / D3-150I-D / FAIRING/IGNITION SWITCH ('78 D1)

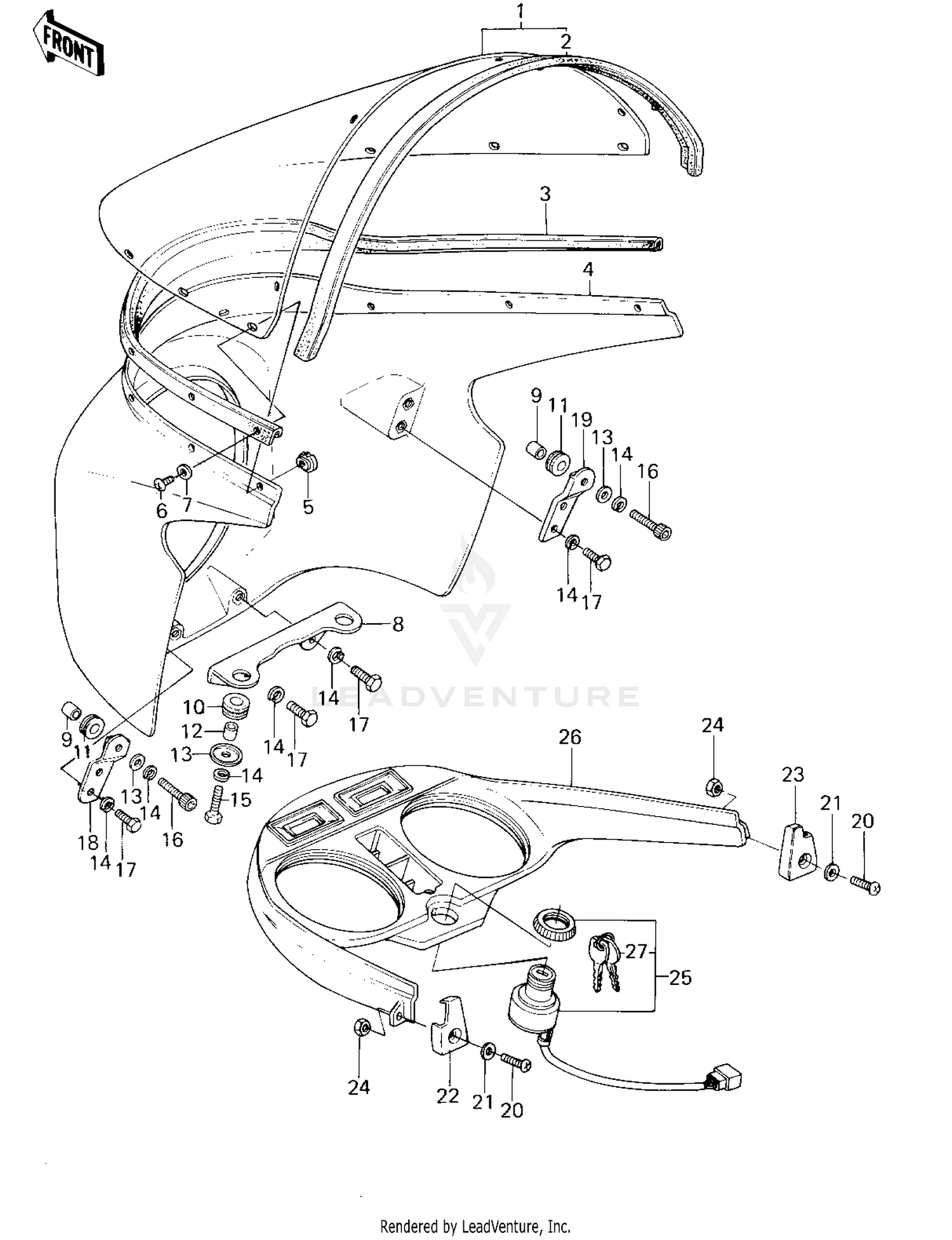

FAIRING/IGNITION SWITCH ('78 D1)

FAIRING/IGNITION SWITCH ('78 D1)

Parts (65)

RefPart NumberDescription
1 39155-1001 WINDSHIELD Price: $657.93
2 53044-1003 TRIM Price: $28.04
3 53044-1002 TRIM Price: $37.50
4 55028-1001-7W COWLING,M.S.SILVER Price: $691.10
5 92015-1025 NUT,5M/M Price: $5.84
6 220AB0512 SCREW-PAN-CROS,5X12,B This part replaces 220C0512. Price: $4.67
8 11034-1124 BRACKET,LOWER Price: $5.13
9 92027-162 COLLAR,6.8X10X12 This part replaces 92027-241. Price: $6.57
12 92027-120 COLLAR,6.8X10X10.5 Price: $5.00
13 92022-286 WASHER,PLAIN,6MM Price: $5.03
14 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
15 112BA0620 BOLT-UPSET This part replaces 112G0620. Price: $2.28
16 120CA0625 BOLT-SOCKET,6X25 This part replaces 120P0625. Price: $2.06
17 112AA0614 BOLT-UPSET This part replaces 112B0614. Price: $0.49
20 220AA0512 SCREW-PAN-CROS,5X12 This part replaces 220B0512. Price: $0.47
21 410AA0500 WASHER-PLAIN-SMALL This part replaces 410B0500. Price: $0.47
22 11012-1025 CAP,L.H. Price: $4.03
23 11012-1026 CAP,R.H. Price: $4.36
24 92015-1025 NUT,5M/M Price: $5.84
25 27005-5005 SWITCH ASSY,IGNITION Price: $226.13
26 25023-1002 COVER,METER CASE Price: $401.59
27 27008-1004-01 KEY SET,#801 Price: $20.60
27 27008-1004-02 KEY SET,#802 Price: $21.79
27 27008-1004-03 KEY SET,#803 Price: $21.74
27 27008-1004-04 KEY SET,#804 Price: $20.70
27 27008-1004-05 KEY SET,#805 Price: $21.79
27 27008-1004-06 KEY SET,#806 Price: $20.70
27 27008-1004-07 KEY SET,#807 Price: $20.70
27 27008-1004-08 KEY SET,#808 Price: $21.79
27 27008-1004-09 KEY SET,#809 Price: $21.79
27 27008-1004-10 KEY SET,#810 Price: $30.25
27 27008-1004-11 KEY SET,#811 Price: $21.79
27 27008-1004-12 KEY SET,#812 Price: $21.64
27 27008-1004-13 KEY SET,#813 Price: $21.79
27 27008-1004-14 KEY SET,#814 Price: $20.60
27 27008-1004-15 KEY SET,#815 Price: $38.13
27 27008-1004-16 KEY SET,#816 Price: $21.79
27 27008-1004-17 KEY SET,#817 Price: $21.79
27 27008-1004-18 KEY SET,#818 Price: $29.51
27 27008-1004-19 KEY SET,#819 Price: $20.70
27 27008-1004-20 KEY SET,#820 Price: $21.79
27 27008-1004-21 KEY SET,#821 Price: $21.79
27 27008-1004-22 KEY SET,#822 Price: $20.70
27 27008-1004-23 KEY SET,#823 Price: $21.79
27 27008-1004-24 KEY SET,#824 Price: $21.79
27 27008-1004-25 KEY SET,#825 Price: $20.70
27 27008-1004-26 KEY SET,#826 Price: $20.70
27 27008-1004-27 KEY SET,#827 Price: $38.19
27 27008-1004-28 KEY SET,#828 Price: $21.79
27 27008-1004-29 KEY SET,#829 Price: $21.74
27 27008-1004-30 KEY SET,#830 Price: $20.70
27 27008-1004-31 KEY SET,#831 Price: $30.25
27 27008-1004-32 KEY SET,#832 Price: $30.25
27 27008-1004-33 KEY SET,#833 Price: $20.70
27 27008-1004-34 KEY SET,#834 Price: $21.74
27 27008-1004-35 KEY SET,#835 Price: $21.79
27 27008-1004-36 KEY SET,#836 Price: $21.74
27 27008-1004-37 KEY SET,#837 Price: $21.79
27 27008-1004-38 KEY SET,#838 Price: $21.79
27 27008-1004-39 KEY SET,#839 Price: $21.79
27 27008-1004-40 KEY SET,#840 Price: $20.70
27 27008-1004-41 KEY SET,#841 Price: $20.70
27 27008-1004-42 KEY SET,#842 Price: $21.79
27 27008-1004-43 KEY SET,#843 Price: $21.74
27 27008-1004-44 KEY SET,#844 Price: $21.74
